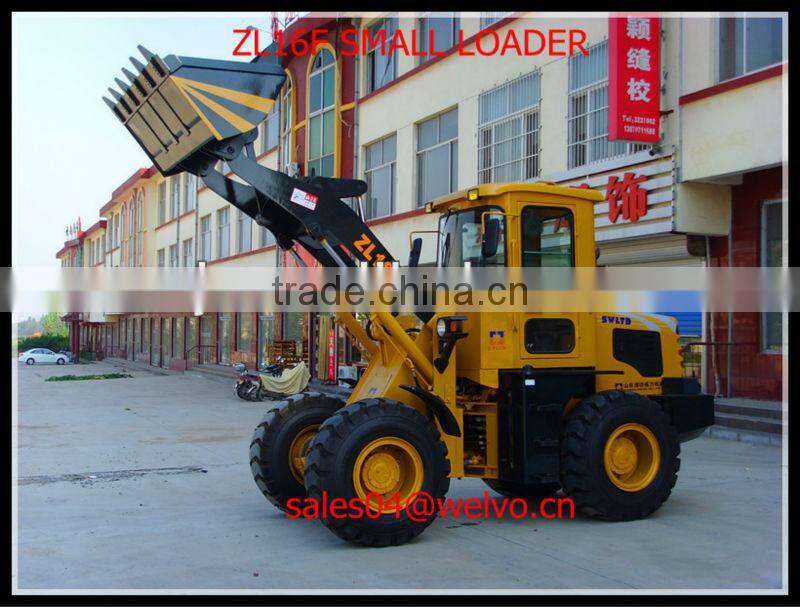

small loader zl16

Specifications

wheel loader zl16
1) CE or EPA;
2Pilot control
2) Engine: Xinchai, Changchai; Weichai
3) Rated loading: from 1Tto5

wheel loader zl16



1.Using direct injection diesel engine as power, with easy startup and low oil consumption



2. Using special drive axle, with strong ability to overcome obstacle



3. Chassis uses hinged structure, with small turning radius and flexible turning, which applies to the operation in narrow space



4. This machine uses hydraulic operation, with simple structure, convenient operation, good performance and reliable quality



5. Widely applying to the construcction of agricultural engineering and small and medium building such as road, coal mine,



brickyard, urban construction, kiln factory, stone material factory, prefabricated cement parts factory, etc.

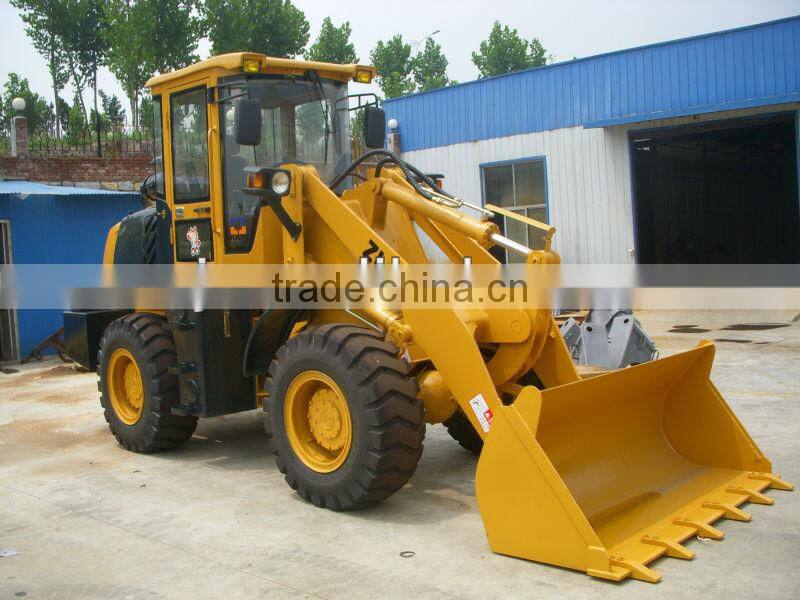

Specifications of ZL16F front end Loader



1.0     Engine details:



(1) Model: Weichai ZH4100K14-3



(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine



(3) Rated Power: 45KW (61.2 H.P.)



(4) Rated Speed: 2400 r/min (rpm)



(5) Fuel Consumption ratio in standard working condition: 251.6g/kw.h



2.0 Transmission System



(1) Type: Fixed-spindle Power shift



(2) Clutch control oil pressure: 1373~1569MPa



(3) Rated input speed: 2500 (rpm)



3.0 Bucket



(1)Bucket Capacity: 0.9 m3



(2) Bucket width: 1910mm



(3) Bucket type: Heavy-duty bolt on teeth



(4) Max. Breakout Force: a. tipper hopper cylinder: 4887, Lifting Cylinder: 2856



(5) Rated Load: 1800kg



(6) Operating Weight: 4800kg



4.0 Overall Dimensions:



(1) Overall Length (Bucket on ground position): 5088mm



(2) Overall Height



(a) Ground to Cabin Top: 2880mm



(b) Ground to exhaust pipe: It is below from the top of cab



(c) Dumping Height: 2405mm



(3) Overall Width: 1905mm



5.0 Operating Specifications



(1) Steering System: Articulated Frame with hydraulic power steering



(2) Min Turning Radius: 4640mm



(3) Driving System: Hydraulic converter



6.0 Brake System



(1) Service Brake: Hydraulic disc brake on four wheels



(2) Parking Brake: Hand operated



7.0 Tyre



(1) Model:11.00-16 (2) Width: 24cm (3) Diameter: 87cm



8.0 Wheelbase:



2150mm



9.0 Track:



 1440mm

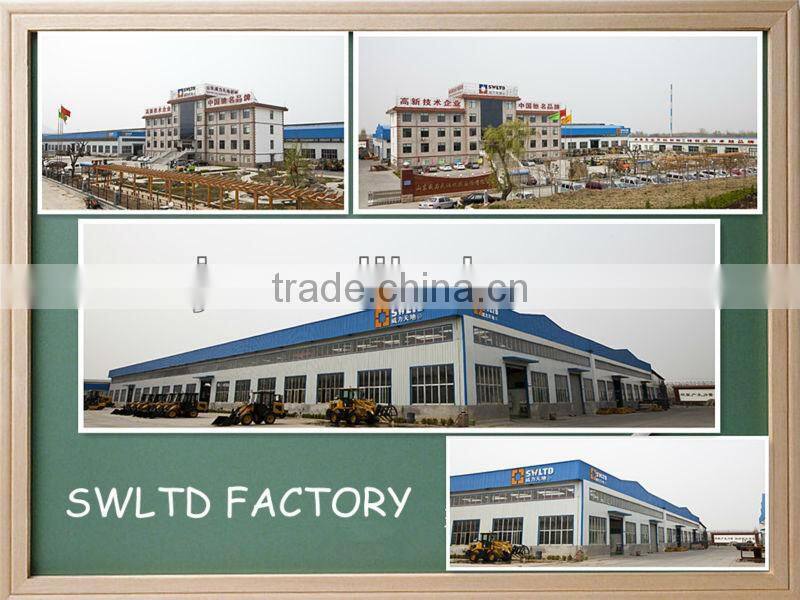

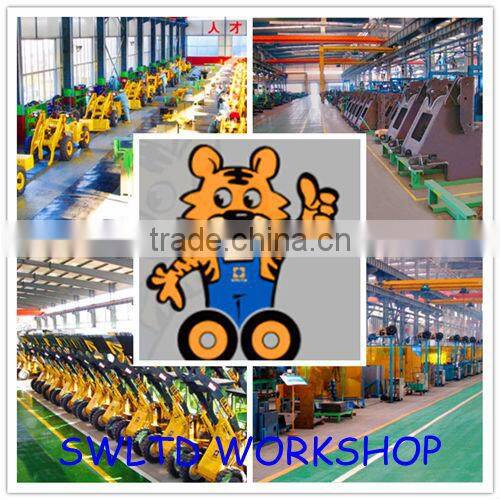

We are the professional and big manufacturer of the loaders and forklifts for over 17 years .

Our main products are as follows:

Wheel Loaders

800kg wheel loader  ZL08A ZL08B

1000kg wheel loader ZL10A ZL10B   ZL10F  SWM610

1200kg wheel loader ZL12F (best sell model)  SWM615   SWM618

1600kg wheel loader ZL16F

2000kg wheel loader SWM620

3500kg wheel loader SWM635

5000kg wheel loader SWM952

Rough Terrain Forklift --Hot Sale

2800kg   CPCY28
3500kg   CPCY35
5000kg   CPCY50
10000kg CPCY100

Diesel Forklift

3000kg and 3500kg CPC30 CPC35

Electric Forklift

1500kg   CPD15

It is our great pleasure to receive your specific inquiries .
Please send us inquiries or send email to  directly .

Our best wishes to you and your esteemed company .   :)    O(∩_∩)O
