Mini Dumper ,

Mini Dumper , thumbnail-1
Mini Dumper , photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Brand Name:
SWLTD
Model Number:
ZL16F
Contact Supplier Request Quote Chat Now
Shandong Weili World Machinery Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Brand Name SWLTD
Model Number ZL16F
Place of Origin Shandong, China
Type Front Loader
Moving Type Wheel Loader
Dimension(Long * Breadth * High) 5088*1905*2405mm
Rated Load 1600kg
Certification CE BV ISO
Warranty 1 year or 1000 working hours
After-sales Service Provided Engineers available to service machinery overseas

Specifications

mini dumper ,ZL16
1)CE or EPA
2)Loading shovel
3)Engine:Xinchai,Changchai,Weichai
4)joystick valve

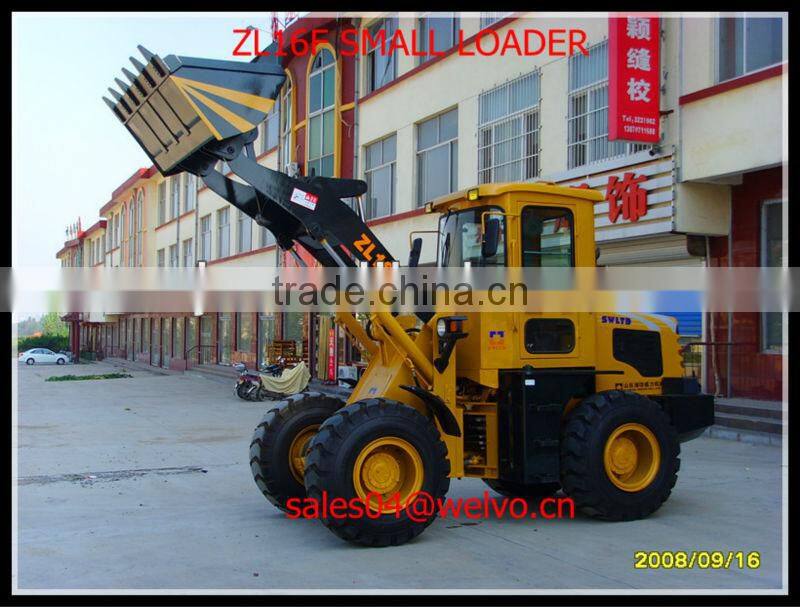

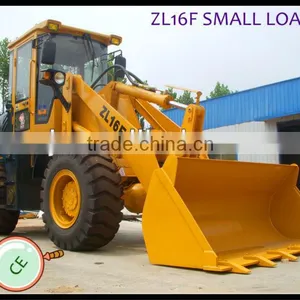

Specifications of ZL16F Wheel Loader



1.0     Engine details:



(1) Model: Weichai ZH4100K14-3

(2) Engine type: In-line arrangement, water-cooled, four-cycle diesel Engine

 (3) Rated Power: 45KW (61.2 H.P.)

 (4) Rated Speed: 2400 r/min (rpm)

 (5) Fuel Consumption ratio in standard working condition: 251.6g/kw.h





2.0 Transmission System



 (1) Type: Fixed-spindle Power shift

(2) Clutch control oil pressure: 1373~1569MPa

 (3) Rated input speed: 2500 (rpm)



3.0 Bucket



 (1) Bucket Capacity: 0.9 m3

 (2) Bucket width: 1910mm

 (3) Bucket type: Heavy-duty bolt on teeth

 (4) Max. Breakout Force: a. tipper hopper cylinder: 4887, Lifting Cylinder: 2856

 (5) Rated Load: 1600kg

 (6) Operating Weight: 4800kg



4.0 Overall Dimensions:



 (1) Overall Length (Bucket on ground position): 5088mm

(2) Overall Height



    (a) Ground to Cabin Top: 2880mm



    (b) Ground to exhaust pipe: It is below from the top of cab



    (c) Dumping Height: 2405mm



(3) Overall Width: 1905mm



5.0 Operating Specifications



(1) Steering System: Articulated Frame with hydraulic power steering



(2) Min Turning Radius: 4640mm



(3) Driving System: Hydraulic converter



6.0 Brake System



(1) Service Brake: Hydraulic disc brake on four wheels



(2) Parking Brake: Hand operated



7.0 Tyre



(1) Model:11.00-16

(2) Width: 24cm

(3) Diameter: 87cm



8.0 Wheelbase:



2100mm



9.0 Track:



1440mm



mini dumper ,



mini dumper ,
