Specifications
1) Capacity is large2) Speed 0-30m/min
3) Standardization of components
4) Easy maintainance
Conveyor belt system application scope:
Conveyor belt system widely used in mining, metallurgy, coal and other industries for transport
loose material of pieces materials. According to transmission process requirement, we can use
one belt conveyor and combination of other conveying equipments to form level or tilted
transmission system, in order to meet requirement of different production line.
Conveyor belt system working principle:
Drive roller driven by the motor through reducer, conveyor belt on driving roller and the
conveyer belt between the friction drag, Material feeding by feed end, fell on the rotation of the
conveyor belt, rely on the conveyor belt friction drive the carrying bag unloading end of
discharge.
Conveyor belt system feature:
1.Conveyor belt system is an upgraded product improved on the basis of the two major TD75
and DX series
2.Conveyor belt system shows considerable improvement whether in the aspects of material,
process structure and manufacturing accuracy, or in the aspects of conveying capacity and
reliability etc.
Conveyor belt system technical parameter:
|
Belt Width (mm) |
Belt Length(m) / Power(kw) |
Belt Speed (m/s) |
Capacity (t/h) |
||
B400 |
≤12/1.5 |
12-20/2.2 |
20-25/3 |
0.8-2 |
40-80 |
B500 |
≤12/3 |
12-20/4 |
20-30/5.5 |
0.8-2 |
78-191 |
B650 |
≤12/4 |
12-20/5.5 |
20-30/7.5 |
0.8-2 |
131-323 |
B800 |
≤10/4 |
10-15/5.5 |
15-25/7.5 |
1.0-2 |
278-546 |
B1000 |
≤10/5.5 |
10-20/7.5 |
20-25/11 |
1.0-2 |
435-853 |
B1200 |
≤10/7.5 |
10-20/11 |
20-25/15 |
1.0-2 |
655-1284 |

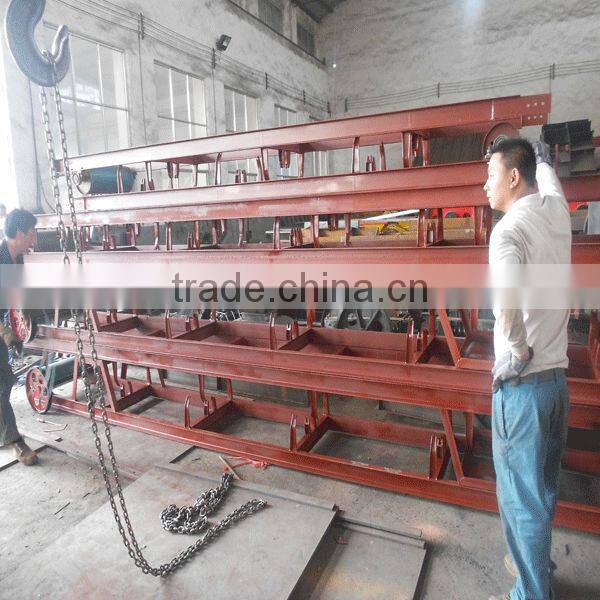

Conveyor belt system images:
About us:
1) Huashengming Machiney Factory has 20 years experiences, so we can
provide you professional technical guidance.
2) We ever exported this machine to Indian, south africa, Amrician etc.
3) Our engineer service u 24 hourse, if you have anything we can do for u,
pls contract us freely.
