HSM ISO CE 2-40t/h Factory Price Roll Crusher Principle Photo
- 100 Set / Sets per Month
- china main port
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Roller Crusher | Application: | Mining |
Motor Type: | AC Motor | Power(W): | 5.5-90 | Capacity(t/h): | 2-140 |
Place of Origin: | Henan, China | Brand Name: | HSM | Model Number: | 2PG |
Dimension(L*W*H): | as required | Weight: | 1.3-41.2t | Certification: | ISO CE |
Warranty: | 2 Years | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description
HSM ISO CE 2-40t/h Factory Price Roll Crusher Principle Photo
Applications of Roll Crusher Principle
The roller crusher is widely applied in the industries of mining, building materials, chemical industry, metallurgy, etc. The roller crusher can crush materials with middle hardness or less than middle hardness into secondary or fine granularity, such as crushing mineral, rocks, coke, coal, slag, scoria, and fire-proof material etc.

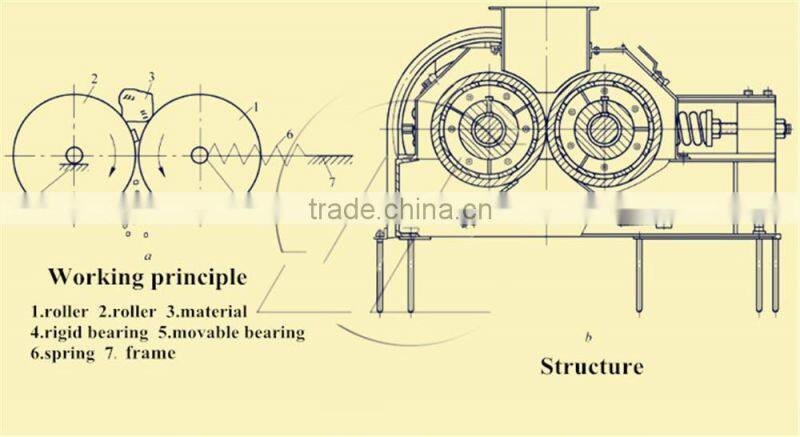

Working Principle of Roll Crusher Principle

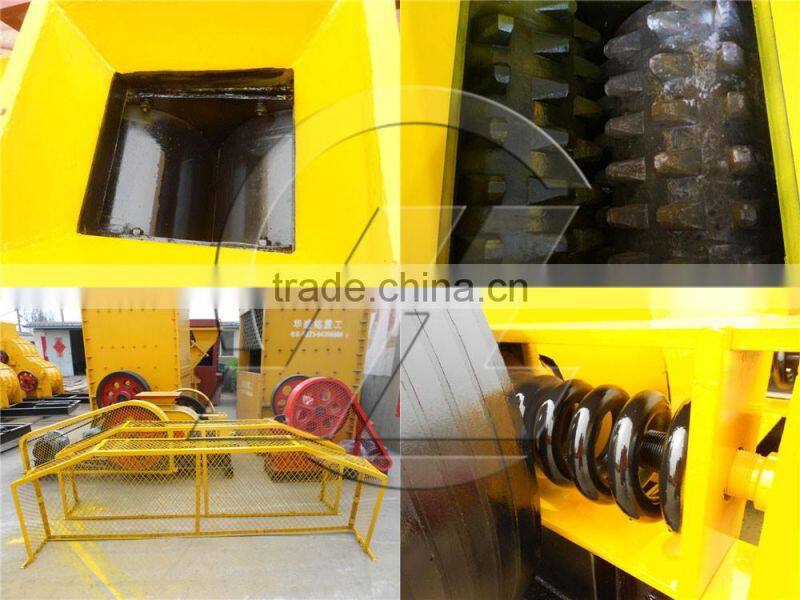

The materials to be crushed fall from the feeding hopper to the space between the two rolls, after being squeezed and crushed, the final products will be discharged by gravity. There are springs behind each roller, in case hard materials are fed, they can protect the rollers from damage.
Features of Roll Crusher Principle
1. Available for ore dressing, chemical, cement, refractories, abrasive, building materials industries.
2. With the more excellent effect than general stave machinery.
3. Finely crushing all kinds of ore and rock below the high, medium hardness,which can make the minimum grain size below 100 mesh.
4. Stable operation, easy maintenance, low cost and output size adjustable.
Technical parameters of Roll Crusher Principle
Model | Feeding size(mm) | Discharging size(mm) | Capacity (t/h) | Motor power(kw) | Weight(t) | Dimension(mm) |
2PG400*250 | <35 | ≤2-8 | 2-10 | 5.5×2 | 1.3 | 2110*870*810 |
2PG610*400 | <65 | ≤2-20 | 5-20 | 15×2 | 3.9 | 3510*1420*1030 |
2PG750*500 | <75 | ≤2-25 | 10-40 | 18.5×2 | 9.5 | 4210*1630*1260 |
2PG800*600 | <80 | ≤2-25 | 12-45 | 22×2 | 10.8 | 4505*1780*1320 |
2PG1000*700 | <100 | ≤3-30 | 20-65 | 30×2 | 14.9 | 5310*2175*1595 |
2PG1200*800 | <120 | ≤3-35 | 35-80 | 37×2 | 25.5 | 6290*2270*1870 |
2PG1500*800 | <130 | ≤3-45 | 50-120 | 75×2 | 33.7 | 7460*2410*2290 |
2PG1600*1000 | <150 | ≤3-50 | 60-140 | 90×2 | 41.2 | 8220*2680*2475 |
Gongyi Huashengming Heavy Machinery Factory is mainly produce crushing and mining equipment.
We have 20 years experience.Our products got ISO CE BV SGS certificate. If your are interested in any of our machine, pls feel free to contact us.
We will work with you to create a win-win situation, together to create the world famous brand of china. Roll Crusher Principle
Packing:
1.Rust-proof and moisture-proof before delivery.
2.Free fumigation plywood case for single machine,larger parts are wrapped by plastic sheeting.
3.Export standard container 20GP,40GP,40HQ,etc. for production line.
4.Other packaging according to your special requirement.
Shipping:
We usually accept EXW, FOB and CIF etc. terms.
1.By sea or by train. we have 20 years cooperate transport company. best freight, fast delivery.
2.Send B/L in 3-5 days after ship leaving.
3.will remind you before ship arrival. Roll Crusher Principle
Our Services
1.Design most suitble flow chart and layout freely according to your request.
2.Provide operating instruction and relative drawing.
3.We can send 1-2 technicians to the site for guiding the installation and commissioning.
4.We offer training service for free.
5.We offer the components with favorable price.
6.Lifetime Warranty. Roll Crusher Principle
PAYMENT :
1: 30% of the total amount shall be paid by T/T as deposit ,balance have to be paid by TT or L/C before delivery.
2: 100% irrevocable letter of credit at sight
DELIVERY TIME :
7-10 working days after receiving the advance payment.
PACKING :
Machines will be through rusty and moist-proof before delivery; small parts are packed into wooden crates;larger parts are wrapped by plastic sheeting.
INSTALLATION :
If required, one or more engineer/engineers will be sent to guide the installation and commissioning of machines; the buyer shall prepare the materials and tools needed,and offer necessary assistance.The actual expenses include accommodation, meal and traveling fee of the engineer,and insurance also should be paid by the buyer. Every engineer should be paid 100 USD per day.
WARRANTY :
100% brand new when leaving the factory. The seller guarantee the quality of the machine (excluding wearing parts) for a period of one year from the date of trial run but not exceed 15 months from the date on which machine shipped out of the factory.
BANK DETAILS :
Beneficiary’s Bank Name: AGRICULTURAL BANK OF CHINA, HENAN, ZHENGZHOU BR.
Address: NO.50 LONGHAI ROAD ZHENGZHOU, HENAN, 450006 CHINA
SWIFT BIC:ABOCCNBJ160
Beneficiary Name: GONG YI CITY HUA SHENG MING HEAVY INDUSTRY MACHINERY FACTORY
Account No: 16-021314040001166
WHY HSM IS POPULAR IN THE WORLD ?
The reason:The outstanding features of from HSM.
1.Easy to transport
2.Greatly reduce material transportation cost
3.Wide applications
4.Reliable performance and convenient maintenance
5.Customized production and flexible configuration
HSM insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance.
