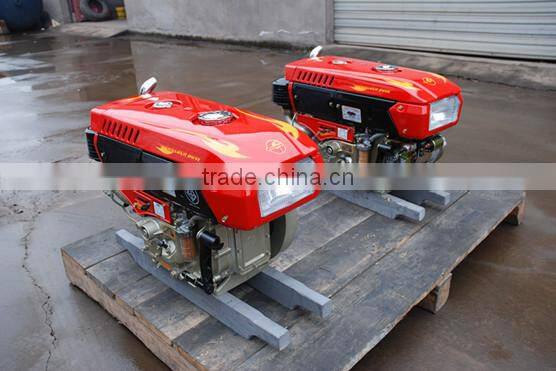

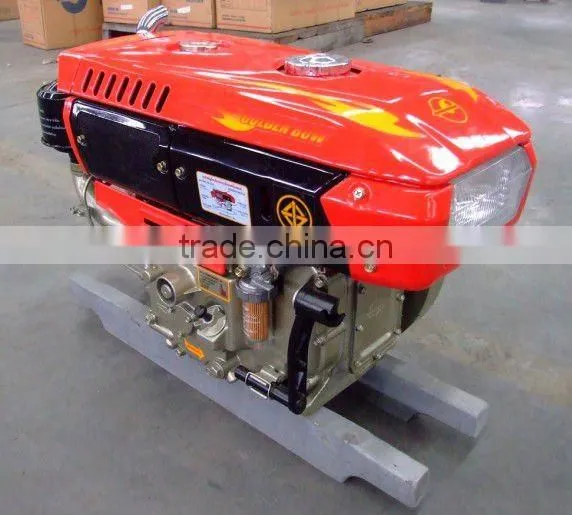

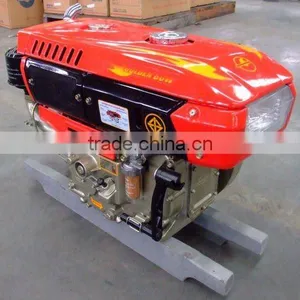

New Single Cylinder Diesel Engine

Name: New Single Cylinder Diesel Engine
Brand: Golden Bow
SKU: 140825148
Availability: InStock

Chongqing Goldenbow Group Power Co., Ltd.

US$ 400 - 500 MOQ: 5 Sets

Key Specifications

Condition:

New

Usage:

Boat

Fuel:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Boat

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Other, electric start&handle start

Place of Origin Chongqing, China

Brand Name Golden Bow

Model Number G95A

Dimension(L*W*H) 765x350x520mm

Weight 107kg

Certification ISO9001:2008

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Type: water-cooled
2.Certificate: ISO9001:2008
3.Maximum output: 9.5(6.99)/2400
4.Fuel: diesel

Technical Specification

NO.	ITEMS	UNIT	MODEL
NO.	ITEMS	UNIT	G95A
1	Type		Single cylinder, horizontal, water-cooled, 4-cycle
2	Bore×stroke	mm×mm	86×90
3	Displacement	cc	522
4	Rated speed	r/min	2400
5	Continuous rated output	Hp	8.5
6	Max. output	Hp	9.5
7	Idle speed	r/min	≤600
8	Compression ratio		21.5:1
9	Cooling system		Radiator
10	Combustion system		(TVCS) Three vortex combustion system
11	Fuel delivery position		19~21
12	Fuel injection pressure	kgf/cm2	120~125
13	Lubricating system		Forced lubrication with trochoid pump
14	Starting system		Electric startup,Speed doubling handle hand
15	Direction of rotation		Counter clockwise facing flywheel
16	Cooling water capacity	L	2.1(Radiator)
17	Fuel tank capacity	L	10
18	Crankcase oil capacity	L	2.3
19	Measurement	mm	765×350×520
20	Net weight	kg	110
