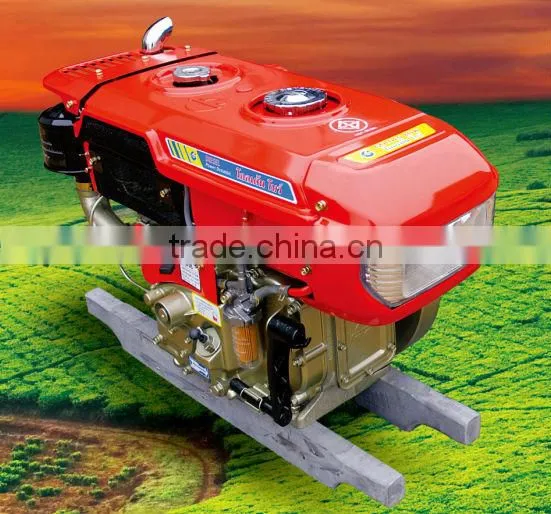

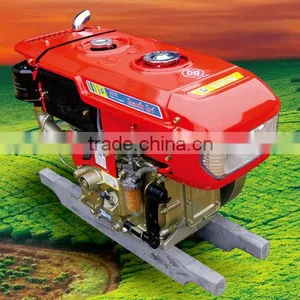

New Lamp G95C Diesel Engine 9.5HPNegotiableMOQ: 1 Set
-
Small 4 Cycle Water Cooled Diesel Engine 9.5HpUS$ 400 - 500MOQ: 1 Set
Specifications
1.Entirely new design,with the adoption of more than 20 kinds of latest techniques and craft.2.Fuel and machine oil saving.
Model | Unit | G95C | G95CE | |
Type |
| Single cylinder, Horizontal,water-cooled,4-cycle | ||
Bore x Stroke | mm | 86x90 | ||
Displacement | cc | 522 | ||
Maximum output | Hp(kW)/rpm | 9.5(6.99)/2400 | ||
Continuous rated output | Hp(kW)/rpm | 8.5(6.25)/2400 | ||
Fuel consumption | g/Hp(kW).h | 190(258) | ||
Rated speed | rpm | 2400 | ||
Idle speed | rpm | ≤600 | ||
Compression ratio |
| 21.5:1 | ||
Maximum torque | kgf.m/rpm | 3.2/1600 | ||
Valve clearance(cold engine) | mm | 0.195-0.235 | ||
Cooling system |
| Radiator | ||
Governor system |
| Flying hammer centrifugal speed type | ||
Fuel injection pressure | kgf/cm2 | 120-125 | ||
Fuel delivery position |
| 19-21º | ||
Combustion system |
| (TVCS) Three vortex combustion system | ||
Lubricating system |
| Forced lubrication with trochoid pump | ||
Lubricating oil |
| SAE 40 API CF | ||
Fuel |
| Light diesel oil (SAE No.2-D) | ||
Fuel tank capacity | l | 10 | ||
Cooling water capacity | l | 2.1 | ||
Crankcase oil capacity | l | 2.8 | ||
Starting system |
| Speed doubling handle by hand / Electric start | ||
Direction of Rotation |
| Counterclockwise facing flywheel | ||
Measurement | mm | 765×350×520 | ||
Net weight | kg | 107 | 109 | |
