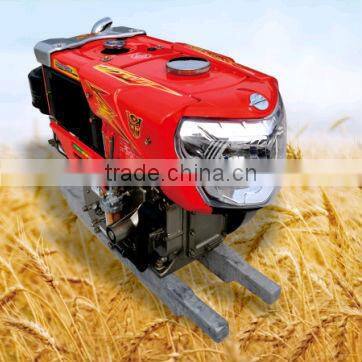

9.5HP Single Cylinder Diesel Engine

Name: 9.5HP Single Cylinder Diesel Engine
Brand: Golden Bow
SKU: 140825046
Availability: InStock

Chongqing Goldenbow Group Power Co., Ltd.

US$ 400 - 550 MOQ: 5 Sets

Key Specifications

Condition:

New

Usage:

Other, Agriculture

Fuel:

Diesel

Payment & Shipping

Payment Methods:

Port of Shipment:

Chongqing China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Usage Other, Agriculture

Fuel Diesel

Stroke 4 Stroke

Cylinder Single Cylinder

Cold Style Other, Water-cooled

Start Kick Start

Place of Origin Chongqing, China

Brand Name Golden Bow

Model Number King Kong JG95

Dimension(L*W*H) 800x348x560mm

Weight 107kg

Certification ISO90001:2008

After-sales Service Provided Engineers available to service machinery overseas

Specifications

1.Small size and low noise
2.Completely mature technology and quality
3.Highest safety,light weight

Product Description

Model	Unit	JG95
Type		Single cylinder, Horizontal, water-cooled, 4-cycle
Bore x Stroke	mm	86x90
Displacement	cc	522
Maximum output	Hp(kW)/rpm	9.5(6.99)/2400
Continuous rated output	Hp(kW)/rpm	8.5(6.25)/2400
Fuel consumption	g/Hp(kW).h	190(258)
Rated speed	rpm	2400
Idle speed	rpm	≤600
Compression ratio		21.5:1
Maximum torque	kgf.m/rpm	3.2/1600
Valve clearance(cold engine)	mm	0.195-0.235
Cooling system		Radiator
Governor system		Flying hammer centrifugal speed type
Fuel injection pressure	kgf/cm2	120-125
Fuel delivery position		19-21º
Combustion system		(TVCS) Three vortex combustion system
Lubricating system		Forced lubrication with trochoid pump
Lubricating oil		SAE 40 API CF
Fuel		Light diesel oil (SAE No.2-D)
Fuel tank capacity	1	10
Cooling water capacity	1	2.1
Crankcase oil capacity	1	2.8
Starting system		Speed doubling handle by hand / Electric start
Direction of Rotation		Counterclockwise facing flywheel
Measurement	mm	800×348×560
Net weight	kg	107
