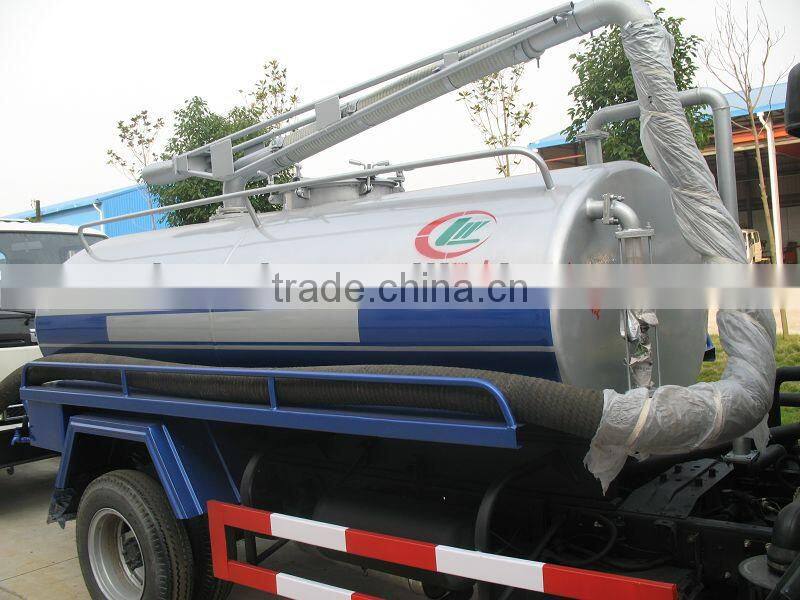

4cbm Sewage Suction Tanker Truck,vacuum Sewage Truck

Chengli Special Automobile Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Transmission Type:

Manual

Condition:

New

Emission Standard:

Euro 3

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Transmission Type Manual

Condition New

Emission Standard Euro 3

Fuel Type Diesel

Tank Volume 1800-3000

Dimension (L x W x H) 5960*1990*2080

Place of Origin Hubei, China

Brand Name CLW

Model Number CLW5040GXE

Horsepower 95

Gross Vehicle Weight 4495

Specifications

4cbm sewage suction tanker truck
1,Dongfeng Chassis
2.Engine Power:Euro 3
3.Tank Volume:1800-3000L
4.Loading Capacity:140

4cbm sewage suction tanker truck

Item		unit	parameter
Vehicle model			CLW5040GXE Fecal Suction Truck
Chassis model			EQ1040TJ20D3
Overall dimensions		mm	5960×1990×2080
	Fact cubage	L	1800-3000
	GVW	kg	Appro×4495
	Rated loading capacity		Appro×1400
	Mass in working order		Appro×2965
	Body internal dimensions	mm	xx
	Wheel base		3300
	F/R track base		1585/1530
	Approach/departure angle	°	19/13
Exhaust/hp		ml/kw	3856/70
Max speed		km/h	95
Tire specification		7.00-16,6.50-16,7.00R16,6.50R16	Engine type	CY4102-C3F
Traction system		4×2	transmission	5-speed with over drive
Number of axles		2	Electric system	24v
Operation control system		Electrically hydraulic control	Allowable passengers in cab	2
Equipment		Equipped with vacuum pump(rating rotate speed=1400r/m,min rotate speed>800r/m, max suction lift>6m, vacuum>500mmHg, clockwise) Equipped with power take off, transmission shaft,fecal tank, pipe network, fecal pipe for observing and cleanout equipment Time for full sucktion<5min
Engine		DongFeng ChaoYang diesel engine
Production cycle		6-7 days
Factory price			FOB/DAF/CNF/CIF
