SUNTECH Textile Folding Machines, No.1 on Alibaba; Visit us at ITMA 2015,Italy. Stand No.: H6-C110

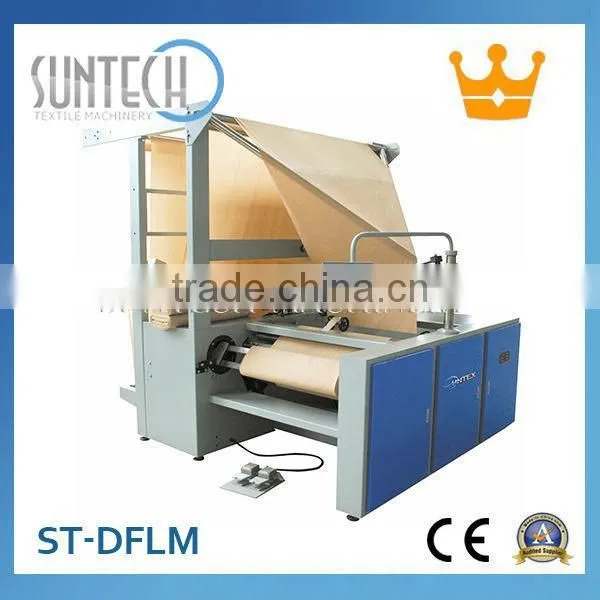

ST-DFLM Textile Folding Machine
is for doubling, lapping, measuring any type of fabrics with inlet from plait/ loose fabrics,
rolls or A-fram batchers and with outlet winded on paper/wood board.
Technical Specs. of Textile Folding Machine
| Speed | 0-70m/min |
| Fabric Width | 1.8-4.0 meters |
| Standard Roll Diameter | 700mm |
| Dimensions(LxWxH) | 2660x2120x2300(for model ST-DFALM-180 only) |
| Weight | 1000kgs(for model ST-DFLM-180 only |
| Electric Specs | 3phase-380V; 50HZ(can be adjusted to suit for different countries) |
| Remark | Variable working width is possible and can be tailor-made to your requirements of processing needs. |
Warranty Extension is Available at SUNTECH Than Other Suppliers.
Metallic Paint( used for Luxury Imported Cars):
*A Seriously Cool Effect-- Glimmer and Sparkle.
*More Resistant to Fading--Longevity
*More Hardness than Ordinary Paint--Protect From Damage or Scratches
Excellent Features of Textile Folding Machine
1)Doubling, rolling, measuring any type of fabrics with inlet from plait/ loose fabrics, rolls or batchers
and with outlet on slabs/board...
2)For proper folding, special systems for thin and sensitive fabrics.
3)Automatic alignment of selvedge on the doubling triangle with very sensitive and precise
photo-electric guide.
4)Reliable measuring with electronic calibrated counter meter system.
5)Hard or loose folding feature, due to torque controlled, from inlet of fabric to end of the fabrics on
slab/cardboard...
6)Automatic printing on selvedge, checking table, printing of measuring - Optional
7)Foot switch is used to withdraw the finished fabrics and send the empty sword plate.
>" href="http://suntech-machinery.en.china.cn/product/1411988934-220132437/Fabric_Folding_and_Rolling_Machine_Textile_Folding_Machine_Clothes_Folding_Machine.html" target="_blank">CLICK TO VIEW MORE>>
>" href="http://suntech-machinery.en.china.cn/product/60083023006-220132437/ST_DFSM_New_Designed_Automatic_Fabric_Double_Folding_and_Sewing_Machine.html" target="_blank">CLICK TO VIEW MORE>>
>" href="http://suntech-machinery.en.china.cn/product/1489409507-220132434/Universal_Fabric_Inspection_Machine_for_Woven_Knitted_Fabrics.html" target="_blank">CLICK TO VIEW MORE>>
>" href="http://suntech-machinery.en.china.cn/product/60074194609-220136471/ST_CBPM_China_Automatic_Cardboard_Bolt_Fabric_Packing_Machine.html" target="_blank">CLICK TO VIEW MORE>>
SUNTECH is one of the leading designers & manufacturers on textile machines for weaving & finishing
Units, especially for Fabric Make-up Machines and Material Storage & Handling Equipment.
Over 40 years experience, SUNTECH now has its brand office in HK and International sales office in
Hangzhou. In addition, our factory is located in Ningbo city, Zhejiang, China.
Today,with more than 2500 customers and 6000 installations around the world, SUNTECH now has its
Agent network in Italy, Germany, Russia, Argentina, Colombia, Peru, Ecuador, Guatemala, Indonesia,
Thailand, Philippines, India, Pakistan, Bangladesh, Sri Lanka, Uzbekistan, Iran,Egypt, South Africa, Syria,
Mauritius, etc.
