Home > Sporting Goods & Recreation > Golf Cart > 2 Seats Battery Powered Electric Uility Buggy With Aluminum Chassis and Cargo Box, EG204AHCX

2 Seats Battery Powered Electric Uility Buggy With Aluminum Chassis and Cargo Box, EG204AHCX

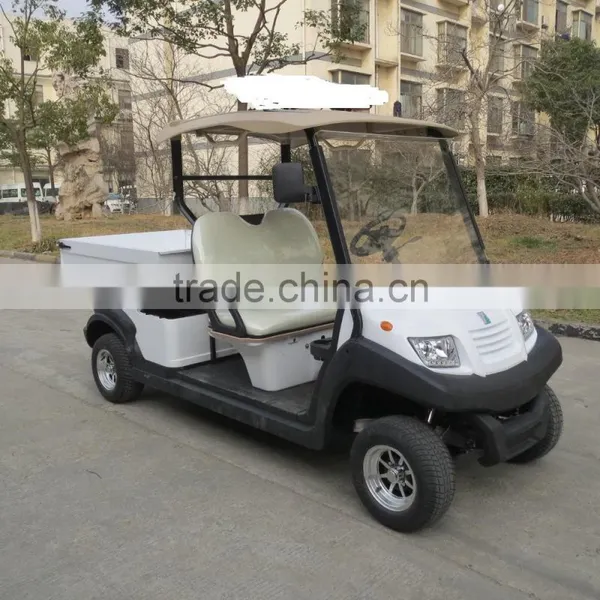

2 Seats Battery Powered Electric Uility Buggy With Aluminum Chassis and Cargo Box, EG204AHCX photo-1

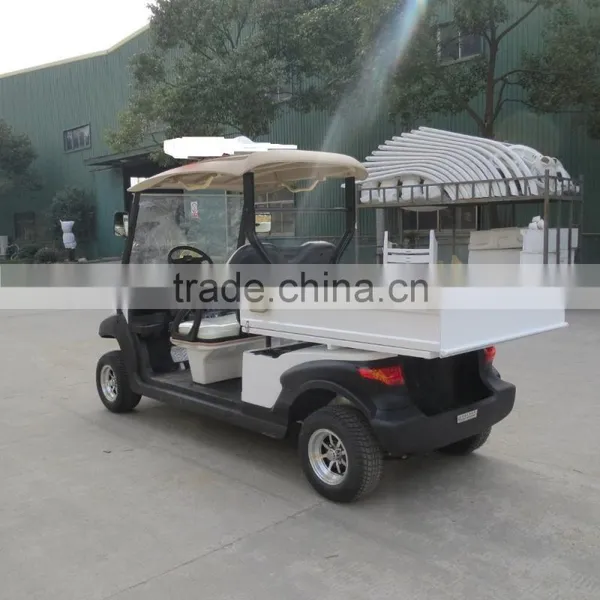

2 Seats Battery Powered Electric Uility Buggy With Aluminum Chassis and Cargo Box, EG204AHCX photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification CE
Electric utility buggy, battery powered, 2014 new model, EG204AHCX
Description:

EG204AHCX, 2014 new model, utility golf cart, 2 seats with manual lifted cargo box, aluminum chassis, front independent suspension, LED lights







Product Description



Key Components
ItemDescription
ControllerCurtis controller, 275A-400A, imported from USA directly
Motor

Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand

Both DC motor and AC motor are available

BatteryTrojan battery, T875, imported from USA directly
Charger

High Frequency onboard charger

(input 90V-265V, 47-63HZ, output 48V/22A)



Performance
ItemDescription
Passenger Capacity2

Range (loaded) (km)*

up to 65
Max.speed (km/h)up to 40
Min.turning radius (m)4.5
Max.climbing ability(loaded)up to 20%
Max. movement after brake at speed of 20km/h4m
Max.loading weight (kgs)450
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

  2)  Range will vary depending on temperature, grade, payload and driving style.



Dimensions
ItemDescription
Overall dimensions (mm)3670x1180x1980 (LxWxH)
Rear cargo bed dimensions (mm)1400x1100x250 (LxWxH)
Min.ground clearance (mm)120
Wheelbase (mm)2430
Front wheel tread (mm)960
Rear wheel tread (mm)980



Body and Frame
ItemDescription
Frame & ChassisAluminum alloy beam, bended
BodyPP plastic front and rear body cover, injected
RoofPlastic
WindshieldOne-piece organic glass (PMMA)
Roof supportsAluminum with black powder coating
CushionReborn sponge with artificial leather and plastic bottom cover
BackrestReborn sponge with artificial leather and plastic cover
ArmrestPlastic, black texture finish
Floor matSkidproof rubber
DashboardBlack plastic, with F/R switch, battery power indicator, ignition key on it
Beverage holders4 cups holders, 2 each side
Side trimPlastic, black
Rear cargo bedSteel box with powder coating, manual lifted
Score card holderOn the steering wheel



Electric System
Item   Description
Lights

12V, headlight (with hight/low beam), front turning light,

LED front position light,

LED taillights (includes brake lights and turning light),

HornElectric horn, 12V
Reverse buzzerElectric, 12V
Combination switch
DC/DC converter

48V/12V

Digital Meter (optional)

Including speedomter, mileage, various indicators including:

headlight indicator, turning light indicator, parking indicator,

emergency light indicator, reverse indicator



Steering & suspersion
ItemDescription
Steering System

Single-stage rack and pinion steering system,

with automatic compensation function

Brake SystemRear wheel mechanical brake with hand park brake
AcceleratorHolzer type, stepless speed change
Front suspensionDouble-arm, independent suspension
Rear suspensionTaper leaf spring with hydraulic cylinder shock absorber
Driving modelRear axle two stage deceleration, motor direct driving
Rear axleAluminum differential cage, integrated, 12.76:1 gear ratio
Wheel & Tyre10x6 Alumimum wheel & 205/50-10 4PR





Option Accessories





To increase the sales value of our vehicles, we also provide many optional accessories.

ItemOption descriptionItemOption description
1Hinged windshield7Side rear view mirror
2Laminated windshield  with wiper8Enclosure
32-point seatbelt9Digital meter
4Backrest cover in wood finish10Battery watering pipe
5Steering wheel in wood finish11Water pump (handle)
6Inner rear view mirror12EM brake









Packaging & Shipping



Container loading qtySemi-knock-downRefer Picture
20'ft GP42 seats battery powered Electric uility buggy with aluminum chassis and cargo box, EG204AHCX
40'ft GP12
40'HQ18





Our Services
  •  Customization is available
  • 13 months warranty from shipping date
  • FOC spare parts provided





Company Information



Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.
