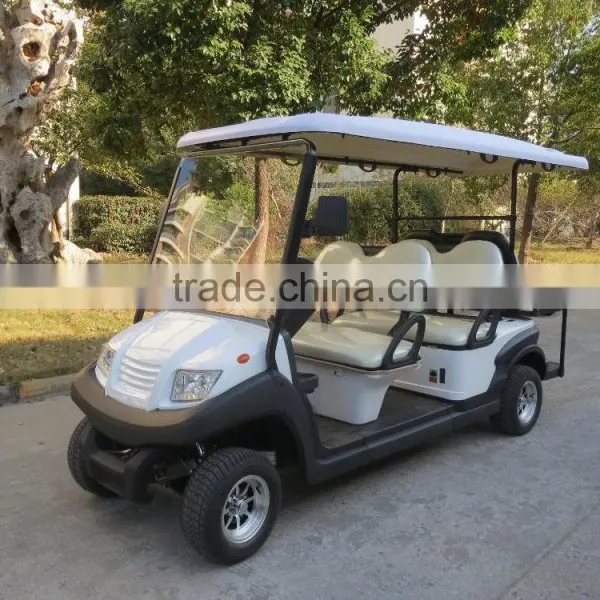

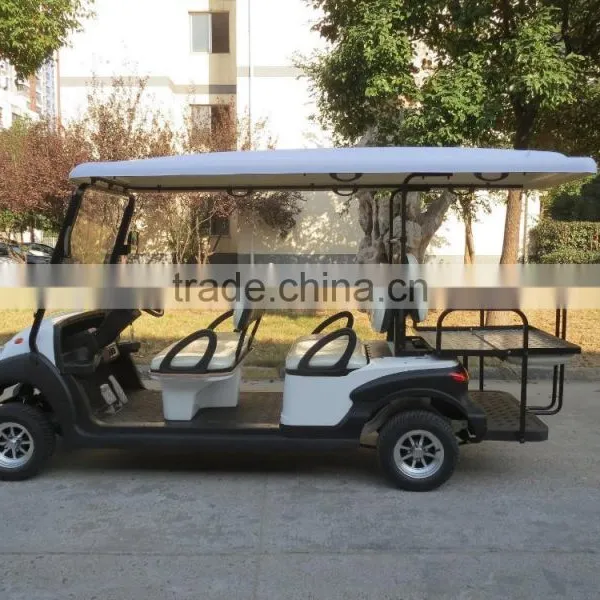

battery operated electric vehicle EG204AKSZ was launched in August of 2014, it's a luxury golf cart.Many features make it to be a luxury golf cart, such as aluminum chassis and roof support,front double-arm independent suspension,rear taper leaf spring with shock absorber,LED taillights and front position light,EM brake, digital meter, etc.. EG204AKSZ is a luxury golf cart for your VIP guests!
| Item | Description |
| Controller | Curtis controller, 275A-400A, imported from USA directly |
| Motor |
Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available |
| Battery | Trojan battery, T875, imported from USA directly |
| Charger |
High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 6 (4+2) |
Range (loaded) (km)* |
up to 70 |
| Max.speed (km/h) | up to 40 |
| Min.turning radius (m) | 4.5 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 370 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 3670x1180x1980 (LxWxH) |
| Min.ground clearance (mm) | 120 |
| Wheelbase (mm) | 2430 |
| Front wheel tread (mm) | 960 |
| Rear wheel tread (mm) | 980 |
| Item | Description |
| Frame & Chassis | Aluminum alloy beam, bended |
| Body | PP plastic front and rear body cover, injected |
| Roof | Plastic |
| Windshield | One-piece organic glass (PMMA) |
| Roof supports | Aluminum with black powder coating |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Plastic, black texture finish |
| Floor mat | Skidproof rubber |
| Centre sweater basket | Plastic, large volume |
| Golf bag holder | Plastic support with nylon strap |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Beverage holders | 4 cups holders, 2 each side |
| Side trim | Plastic, black |
| Score card holder | On the steering wheel |
| Item | Description |
| Lights |
12V, headlight (with hight/low beam), front turning light, LED front position light, LED taillights (includes brake lights and turning light), |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Combination switch | |
| DC/DC converter | 48V/12V |
| Digital Meter (optional) |
Including speedomter, mileage, various indicators including: headlight indicator, turning light indicator, parking indicator, emergency light indicator, reverse indicator |
| Item | Description |
| Steering System |
Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | Rear wheel mechanical brake with hand park brake |
| Accelerator | Holzer type, stepless speed change |
| Front suspension | Double-arm, independent suspension |
| Rear suspension | Taper leaf spring with hydraulic cylinder shock absorber |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Aluminum differential cage, integrated, 12.76:1 gear ratio |
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Hinged windshield | 7 | Side rear view mirror |
| 2 | Laminated windshield with wiper | 8 | Enclosure |
| 3 | 2-point seatbelt | 9 | Digital meter |
| 4 | Backrest cover in wood finish | 10 | Battery watering pipe |
| 5 | Steering wheel in wood finish | 11 | Water pump (handle) |
| 6 | Inner rear view mirror | 12 | EM brake |
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 4 | |
| 40'ft GP | 10 | |
| 40'HQ | 16 |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..
Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
