Help CenterHigh Quality and Beautiful EEC Golf Cart on Sales
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Person Electric Cargo Golf Cart With Competitive PriceNegotiableMOQ: 1 Unit -
Electric Shuttle Bus With Aluminum Hard Door, 14 Seats ,EG6158KF, CE Approved, Brand NewNegotiableMOQ: 1 Unit
-
Electric Buses China, Aluminum Hard Door, 8 Seats, EG6088KF, CE Approved, Brand NewNegotiableMOQ: 1 Unit
-
New Beautiful 2 Seat Electric Car With Enclosed DoorsNegotiableMOQ: 1 Unit
-
4 Seater Electric Golf Car With Folding Seat,EG2028KSZNegotiableMOQ: 1 Unit
Seats
1 - 2
Fuel Type
Electric
Battery Voltage
48V
Certification
CE

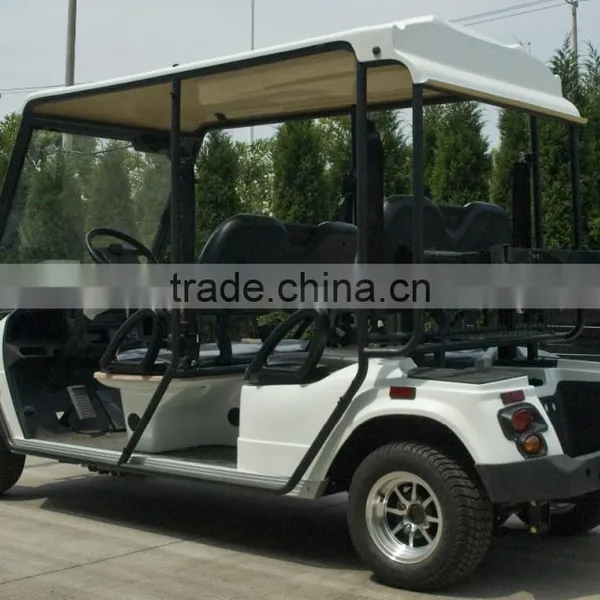

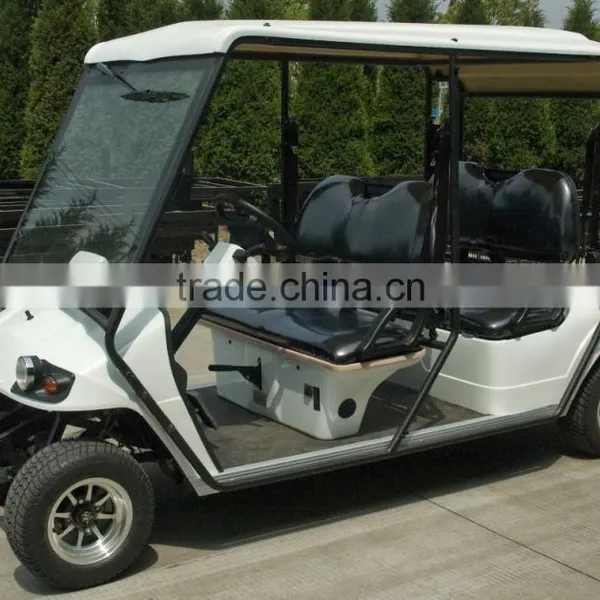

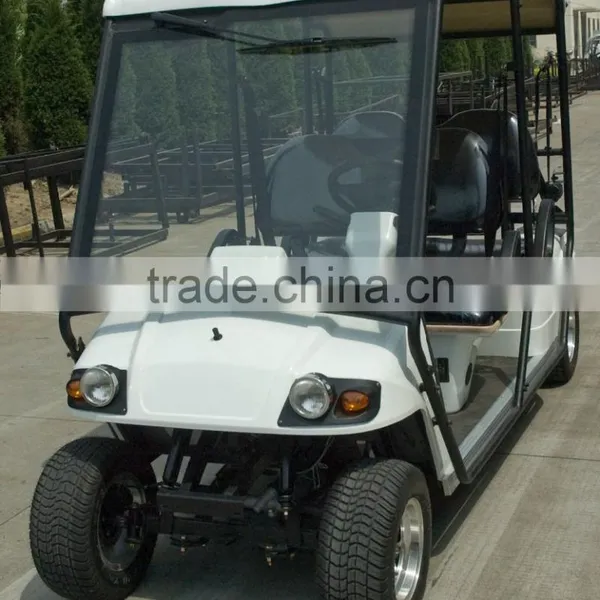

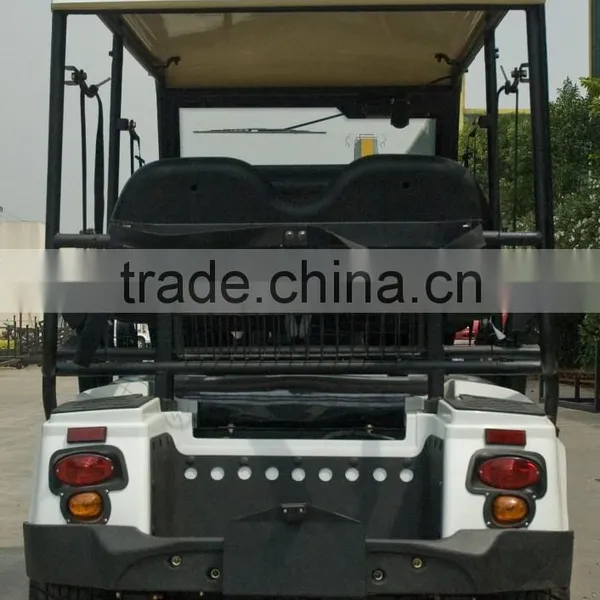

High quality and beautiful EEC golf cart on sales
Max. speed is 32km/h upon the 12.76:1 gear ratio, Max. speed is 40km/h upon the 10.26:1 gear ratio.
Max. climbing ability (loaded) is 20% upon the 10.26:1 gear ratio
Product Description
| Model | EG2048KR-01 | EG2048KR-02 | EG2048KR-04 | |
| System | 48V/5KW AC Sepex | 48V/5.3KW Sepex | 48V/5.3KW AC Sepex | |
| Key Components | ||||
| Battery | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | |
| Motor | 5KW Chinese motor for 60minutes | 5.3KW Chinese motor for 60minutes | 5.3KW Chinese motor for 60minutes | |
| Controller | Curtis 1236 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE2 (400A@2minutes) | |
| Performance | ||||
| Passenger capacity | 4 | 4 | 4 | |
| Range (loaded) based on flat road at a speed of 20km/h (km) | >100 | >80 | >80 | |
| Max. speed(km/h) | 40 | 40 | 40 | |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | |
| Max. climbing ability (loaded) | 20% | 20% | 20% | |
| Max. movement after brake | ≤4m | ≤4m | ≤4m | |
| Max. loading weight | 300kgs | 300kgs | 300kgs | |
| Net weight | 620kgs | 620kgs | 620kgs | |
| Dimensions | ||||
| Overall dimensions (mm) | 3150*1200*1850 | |||
| Min. ground clearance (mm) | 120 | |||
| Wheelbase (mm) | 2450 | |||
| Front wheel tread (mm) | 855 | |||
| Rear wheel tread (mm) | 975 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||
| Body | PP plastic front body + PP plastic rear body | |||
| Roof | Fiberglass | |||
| Roof handle | ||||
| Windshield | one-piece Laminated glass | |||
| Wiper and water tank | / | |||
| Upright and bracket | Carbon Steel, powder coating | |||
| 3point seat belt | 4 pieces | |||
| Large Seats: | ||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||
| 2) armrest | Formed | |||
| 3) plastic seat bottom | ||||
| Formed seat&backrest vinyl | exclude the front seat cushion | |||
| Backrest cover in wood finish | ||||
| Floor | rubber | |||
| Center storage basket | Large volume | |||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||
| Dashboard in wood finish | ||||
| Steering wheel in wood finish | ||||
| Beverage holders | 4 cups drink holders | |||
| Glove box | ||||
| Glove box door (include two locks) in black plastic | 2 doors per set | |||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | |||
| Side trim | Aluminum | |||
| Score card holder | on steering wheel | |||
| Towing bracket | on front of golf car | |||
| Side rear view mirror | Two pieces per cart | |||
| Battery watering system,48V system | without water supply tool | |||
| Manual Pump | water supply tool (other water supply tools are available) | |||
| Sweater Basket | Carbon Steel, powder coating | |||
| Golf Bag holder | ||||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||
| Reversing alarm | ||||
| Meter | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | |||
| 12V accessory plug | to be mounted on the dashboard | |||
| Hour meter | ||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Brake system | 4-wheel hydraulic brake, front disc brake, rear drum brake | |||
| 4-wheel hydraulic brake + hand brake | ||||
| Accelerator | Stepless speed change | |||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||
| Rear axle | Integrated, Gear ratio 10.25:1 | |||
| Integrated, Gear ratio 12.49:1(Only for AC ststem) | ||||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | |||
Packaging & Shipping
Our Services
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
13 month warranty against the BL shipping date!
