Home > Transportation > Specialized Vehicle > Sightseeing Bus & Car > China Small Electric Vehicle Walking Car , CE Approved

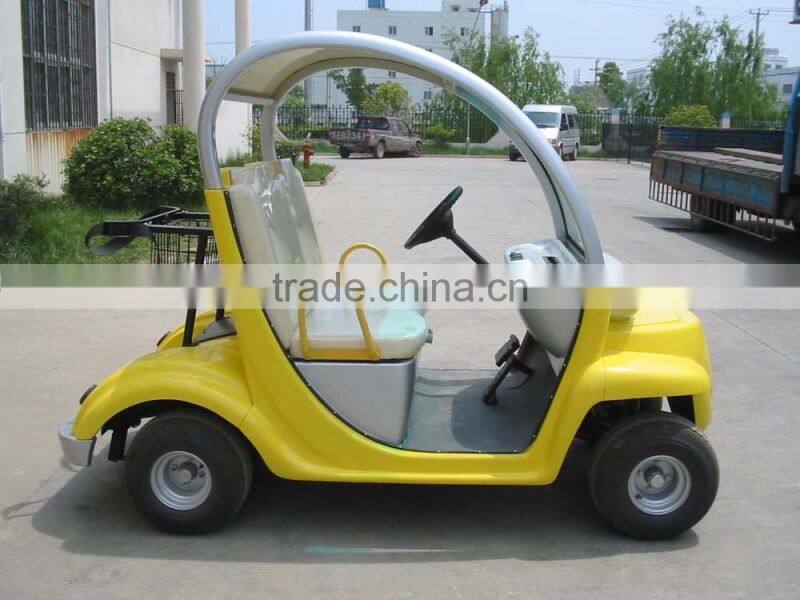

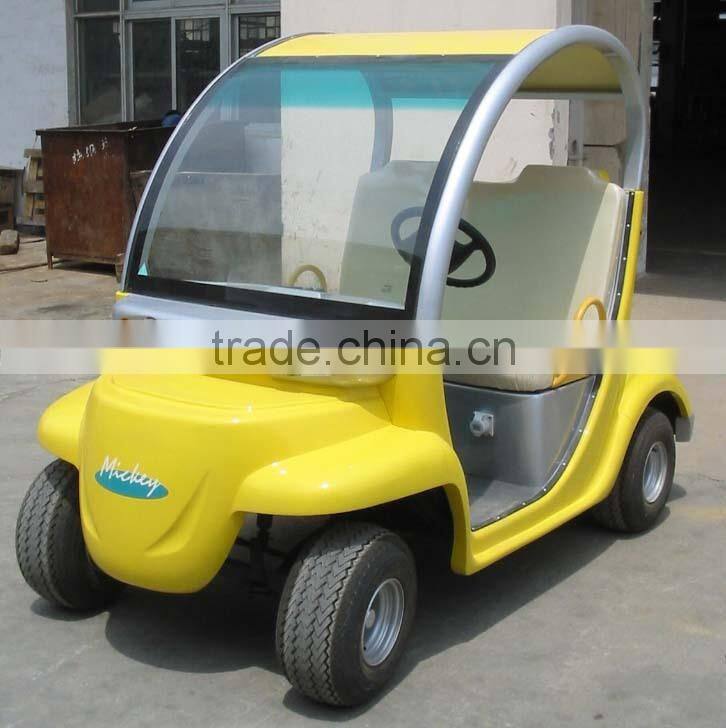

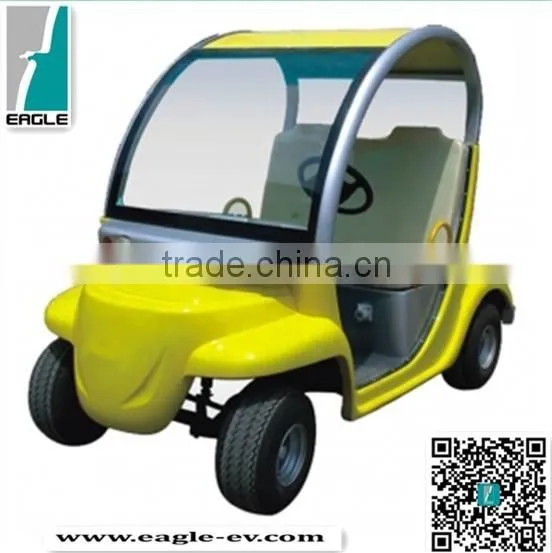

China Small Electric Vehicle Walking Car , CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Power:
Electric
Place of Origin:
Jiangsu, China
Brand Name:
EAGLE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
2 Seat Electric Ambulance Golf Car With CENegotiableMOQ: 1 Unit -
4 Wheel Electric Utility Car With Rear Manual Lifted Cargo Box, EG2048HCXNegotiableMOQ: 1 Unit
-
Battery Golf Buggy Approved With Hydraulic Lifted Cargo Box, EG2048ZT2NegotiableMOQ: 1 Unit
-
Electric Golf Car With Rear Cargo Box and CE CertificateNegotiableMOQ: 1 Unit
-
Off-road Utility Electric Buggy , EG2028HNegotiableMOQ: 1 Unit
Power
Electric
Place of Origin
Jiangsu, China
Brand Name
EAGLE
Model Number
EG6023K
China small electric vehicle,CE approved
Why?See below introduction!!
Product Description
| Model | EG6023K | EG6023K01 | EG6023K03 |
| System | 48V/4KW Sepex | 48V/3KW Sepex | 48V/3KW AC system |
| Key Components | |||
| Battery | 6xT875(145Ah@5hr rate) | 6xT875(145Ah@5hr rate) | 6xT875(145Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 3KW Chinese motor | 3KW German motor |
| Controller | Curtis 1268 (400A@2minutes) | Curtis 1266 (275A@2minutes) | Zapi ACE0 (280A@2minutes) |
| Performance | |||
| Passenger capacity | 2 | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >60 | >60 | >75 |
| Max. speed @12.76:1 gear ratio | 32 | 25 | 32 |
| Max. speed @10.17:1 gear ratio | 40 | 32 | -- |
| Minimum turning radius (m) | 3.6 | 3.6 | 3.6 |
| Max. climbing ability (loaded) @ 12.49:1 gear ratio | 20% | 20% | 20% |
| Max. climbing ability (loaded) @ 10.25:1 gear ratio | 15% | 15% | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 270kgs | 270kgs | 270kgs |
| Net weight | 560kgs | 557kgs | 560kgs |
| Dimensions | |||
| Overall dimensions (mm) | 2680X1290X1900 | ||
| Min. ground clearance (mm) | 95 | ||
| Wheelbase (mm) | N/A | ||
| Front wheel tread (mm) | N/A | ||
| Rear wheel tread (mm) | N/A | ||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) |
| Frame | Welded steel framework with sand blasting+paint treatment | |||
| Body | Fibreglass | S | ||
| Roof | Fibreglass+steel frame | S | ||
| Windshield | Laminated glass | S | ||
| 2 point seat belt | O | |||
| Large Seats: | ||||
| 1) backrest and cushion | Rebond seat + artificial leather | S | ||
| 2) armrest | Steel pipe | S | ||
| Rear kits | Fibreglass box | S | ||
| Golf bag | O | |||

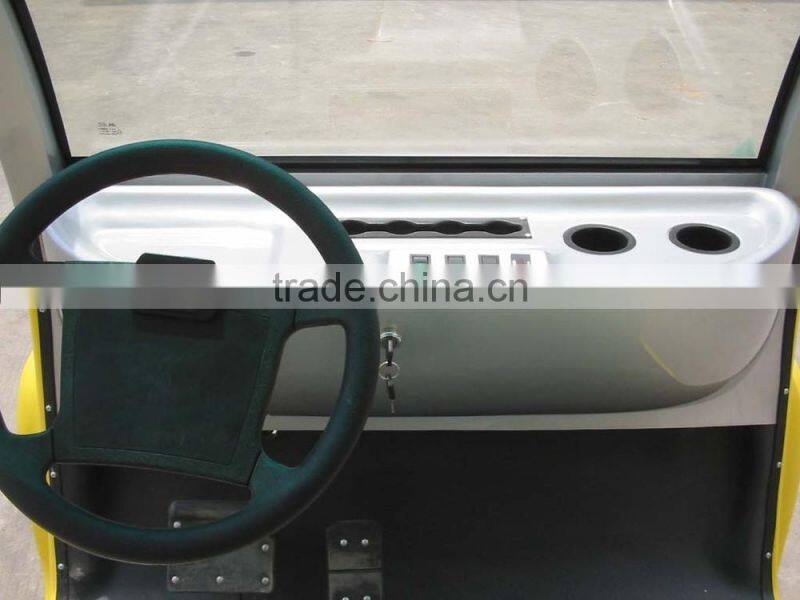

| Dashboard | Forward/reverse switch, assembly switch (front light, turn signal switch, horn switch), wiper switch, battery capacity indicator, ignition key, 4 cup holders | S | ||
| steering wheel in wood finish | / | O | ||
| Floor | Non-slipping rubber | S | ||
| Inner rear view mirror | One piece per cart in the middle of the windshield | O | ||
| Side rear view mirror | Two pieces per cart | S | ||
| Battery watering system,48V system | without water supply tool | O | ||
| Manual Pump | water supply tool (other water supply tools are available) | O | ||
| Rain cover | PVC | O | ||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 lowly-positioned taillights (including brake light and turn signal ), 2 highly-possioned brake lights, with DC-DC converter (converting from 48V to 12V), horn. | S | ||
| Reversing alarm | S | |||
| Switch assembly | Lights switch, horn switch, wiper switch | S | ||
| Wiper | 12V | S | ||
| Ice box | 12V DC, 6L | O | ||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | S | ||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | S | ||
| Brake system | Mechanical brake | |||
| 4-wheel hydraulic brake + hand brake | O | |||
| 4-wheel hydraulic brake, front disc brake, rear drum brake | O | |||
| Accelerator | Stepless speed change | S | ||
| Suspension system | Front and rear plate spring + vibration absorber | S | ||
| Driving mode | Rear axle two stage deceleration, motor direct driving | S | ||
| Rear axle | Integrated, Gear ratio 12.76:1 | S | ||
| Integrated, Gear ratio 10.26:1 | O | |||
| Wheel & Tyre | 8*7 steel rim with wheel cap, 18*8.5-8 4PR tyre | S | ||
Packaging & Shipping

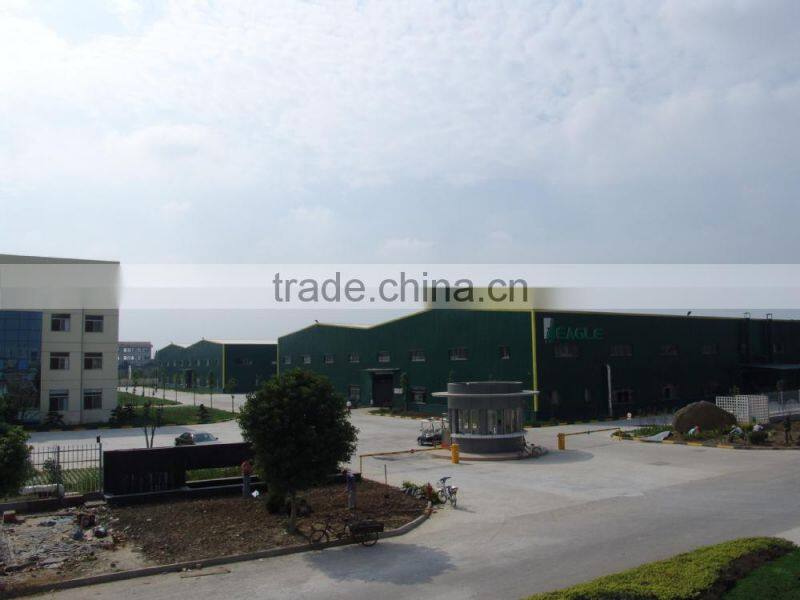

Company Information
Our Services
13 month warranty against the BL shipping date!
