4 wheel electric utility car with rear manual lifted cargo box, EG2048HCX
- 2000 Unit / Units per Month
- Shanghai
- T/T
- Electric Shuttle Bus /sightseeing car/classic sightseeing car with CEE Quality Choice
- Sightseeing 8 seater electric car for sale
- Kingwoo cheap electric sightseeing car
- Popular 6 person electric tourist car
- Kingwoo new design 14 seat electronic tour bus
- High quality nice electric sightseeing bus on sale
Product Details
Seats: | 1 - 2 | Fuel Type: | Electric | Battery Voltage: | 48V |
Certification: | CE |
Product Description

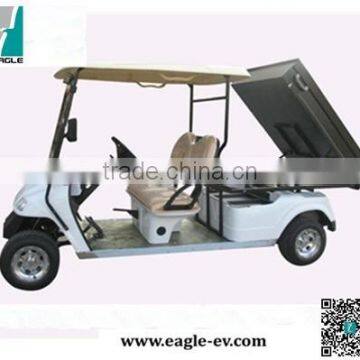

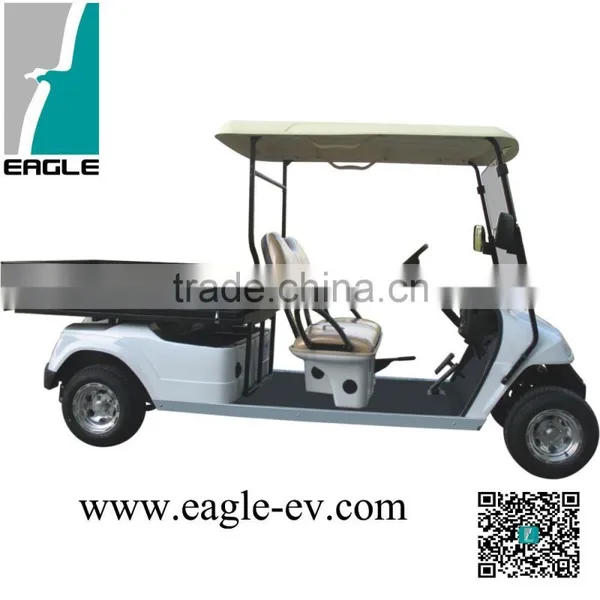

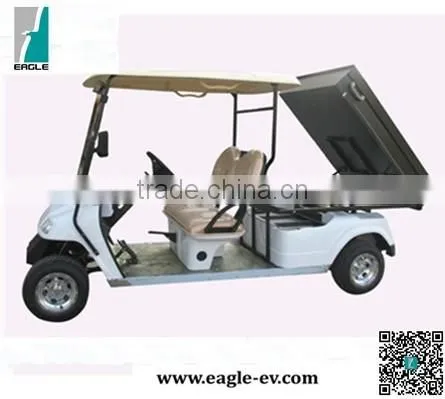

4 wheel electric utility car with rear manual lifted cargo box, EG2048HCX
Item | Description |
Controller | Curtis controller, 275A-400A, imported from USA directly |
Motor | Rated 3KW-5KW (4.08HP-6.8HP), ADC brand or Chinese brand Both DC motor and AC motor are available |
Battery | Trojan battery, T105+, imported from USA directly |
Charger | High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
Item | Description |
Passenger Capacity | 4 |
Range (loaded) (km)* | up to 90 |
Max.speed (km/h) | up to 40 |
Min.turning radius (m) | 4.5 |
Max.climbing ability(loaded) | up to 20% |
Max. movement after brake at speed of 20km/h | ≤4m |
Max.loading weight (kgs) | 440 |
Charging time (hour) | 8-10 |
Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
Item | Description |
Overall dimensions (mm) | 3180x1180x1890 (LxWxH) |
Rear cargo bed dimensions (mm) | 1400x1100x250 (LxWxH) |
Min.ground clearance (mm) | 120 |
Wheelbase (mm) | 2450 |
Front wheel tread (mm) | 855 |
Rear wheel tread (mm) | 975 |
Item | Description |
Frame & Chassis | Welded steel framework with phosphate+electro-coating treatment |
Body | PP plastic front and rear body cover, injected |
Roof | Injected plastic |
Windshield | One-piece organic glass (PMMA) |
Roof supports | Carbon steel, powder coated, black |
Cushion | Reborn sponge with artificial leather and plastic bottom cover |
Backrest | Reborn sponge with artificial leather and plastic cover |
Armrest | Formed |
Floor mat | Skidproof rubber |
Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
Beverage holders | 4 cups holders, 2 big and 2 small |
Side trim | Extruded aluminum |

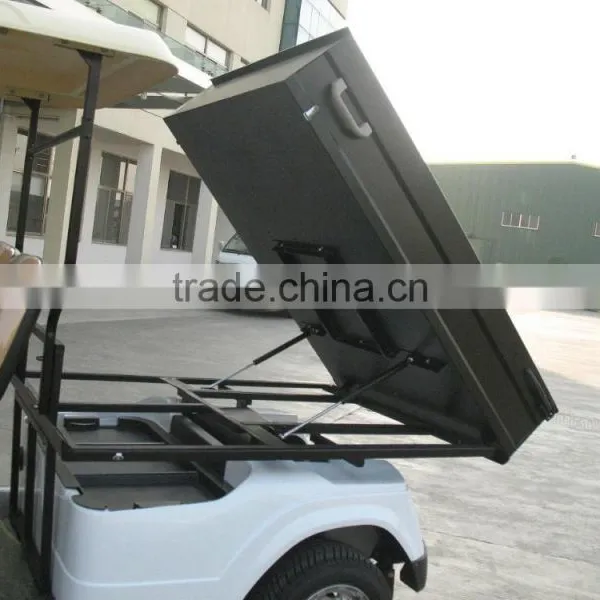

Rear cargo bed | Powder coated carbon steel with manual lifted function |
Score card holder | On the steering wheel |
Item | Description |
Lights | 12V, headlight, front turning light, taillight (brake light and rear turing light) |
Horn | Electric horn, 12V |
Reverse buzzer | Electric, 12V |
Combination switch | |
DC/DC converter | 48V/12V |
Item | Description |
Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
Brake System | Rear wheel mechanical brake with foot park brake |
Accelerator | Resistance type, stepless speed change |
Front suspension | Cylinder hydraulic shock absorber and leaf spring |
Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
Driving model | Rear axle two stage deceleration, motor direct driving |
Rear axle | Aluminum differential cage, integrated, 12.76:1 gear ratio |
Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR |
To increase the sales value of our vehicles, we also provide many optional accessories.
Item | Option description | Item | Option description |
1 | Hinged windshield | 11 | Enclosure |
2 | Laminated windshield with wiper | 12 | Digital meter |
3 | 2-point seatbelt | 13 | 12V plug |
4 | Backrest cover in wood finish | 14 | Hour meter |
5 | Steering wheel in wood finish | 15 | Solar panel |
6 | Inner rear view mirror | 16 | Battery watering pipe |
7 | Side rear view mirror | 17 | Water pump (handle) |
8 | STS or aluminum roof supports | 18 | 4-wheel hydraulic front drum or disc, rear drum brake with hand park brake |
9 | Wooden finish dashboard,steering wheel and dashboard | 19 | 8x7 steel rim with 18x8.5-8 tyre or 6J-10 steel rim with 205/50-10 tyre |
10 | Glove box with door and lock | |
SKD in a steel rack
Container loading qty | Semi-knock-down | Refer Picture |
20'ft GP | 4 units | |
40'ft GP | 10 units | |
40'HQ | 14 units |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..
Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
