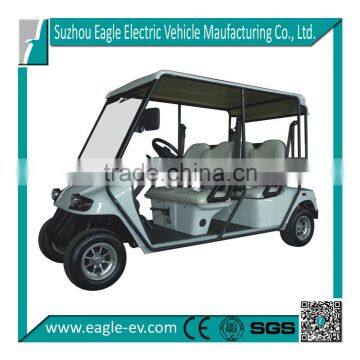

Help Center4 Seater Road Legal Electric Cart With EEC , EG2048KR
Related Products
-
Electric Fire Trucks, 1.3 m3 Water Tank, for Emergency Fire Fighting in Closed Area, EG6040FNegotiableMOQ: 1 Unit -
Electric Fire Fighting Truck, Available for Installing Fire Fighting Tools, EG6030FNegotiableMOQ: 1 Unit
-
2 Seater Electric Buggy With a Rear Cargo BoxNegotiableMOQ: 1 Unit
-
Electric Mini Fire Trucks, With Water Tank, Small for Narrow Place, EG6020FNegotiableMOQ: 1 Unit
-
Electric Garbage Trucks, Sealed Rear Box for Liquid Waste, EG6042XA1NegotiableMOQ: 1 Unit
| Item | Description |
| Controller | Curtis controller, 400A, imported from USA directly |
| Motor | Rated 5KW (6.8HP), Chinese brand Both DC motor and AC motor are available |
| Battery | Trojan battery, T105+, imported from USA directly |
| Charger | High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A) |
| Item | Description |
| Passenger Capacity | 4 |
Range (loaded) (km)* | up to 100 |
| Max.speed (km/h) | up to 50 |
| Min.turning radius (m) | 3.5 |
| Max.climbing ability(loaded) | up to 20% |
| Max. movement after brake at speed of 20km/h | ≤4m |
| Max.loading weight (kgs) | 300 |
| Charging time (hour) | 8-10 |
| Battery lifespan (cycles) | 750 |
* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;
2) Range will vary depending on temperature, grade, payload and driving style.
| Item | Description |
| Overall dimensions (mm) | 3150x1200x1850 (LxWxH) |
| Min.ground clearance (mm) | 150 |
| Wheelbase (mm) | 1680 |
| Front wheel tread (mm) | 850 |
| Rear wheel tread (mm) | 975 |
| Item | Description |
| Frame & Chassis | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front and rear body cover, injected |
| Roof | FRP |
| Windshield | Laminated glass (with E-mark) with wiper and wiper sprayer |
| Roof supports | Roll bar, texture powder coating |
| Seatbelt | 3-point seatbelt, with E-mark |
| Cushion | Reborn sponge with artificial leather and plastic bottom cover |
| Backrest | Reborn sponge with artificial leather and plastic cover |
| Armrest | Formed |
| Floor mat | Skidproof rubber |
| Dashboard | Black plastic, with F/R switch, battery power indicator, ignition key on it |
| Steering column | With lock |
| Beverage holders | 4 cups holders, 2 big and 2 small |
| Rear flip flop seat | Steel frame, aluminum bottom board, steel standing board and handle |
| Side trim | Extruded aluminum |
| Score card holder | On the steering wheel |
| Item | Description |
| Lights | 12V, headlight(high/low beam), front turning light, rear brake light and rear turning light, all lights with E-mark |
| Horn | Electric horn, 12V |
| Reverse buzzer | Electric, 12V |
| Digital meter | With speedometer, odometer, ampermeter and various indicator |
| Combination switch | With headlight switch, turning light switch, wiper switch |
| DC/DC converter | 48V/12V |
| Item | Description |
| Steering System | Single-stage rack and pinion steering system, with automatic compensation function |
| Brake System | 4-wheel hydraulic drum brake, with hand park brake |
| Accelerator | Resistance type, stepless speed change |
| Front suspension | Cylinder hydraulic shock absorber and leaf spring |
| Rear suspension | Cylinder hydraulic shock absorber and leaf spring |
| Driving model | Rear axle two stage deceleration, motor direct driving |
| Rear axle | Steel differential cage, integrated, 12.49:1 gear ratio |
| Wheel & Tyre | 12x7 steel wheel & 24x8-12 tyre |
To increase the sales value of our vehicles, we also provide many optional accessories.
| Item | Option description | Item | Option description |
| 1 | Formed seat and backrest vinyl | 7 | Enclosure |
| 2 | Roof handle (steel) | 8 | Battery watering pipe |
| 3 | 2-point seatbelt | 9 | Water pump (handle) |
| 4 | Backrest cover in wood finish | 10 | Hour meter |
| 5 | Steering wheel in wood finish | 11 | 12V accessory plug |
| 6 | Wooden finish dashboard | 12 | Glove box with door and lock |
SKD in a steel rack
| Container loading qty | Semi-knock-down | Refer Picture |
| 20'ft GP | 4 units | |
| 40'ft GP | 12 units | |
| 40'HQ | 18 units |
- Customization is available
- 13 months warranty from shipping date
- FOC spare parts provided

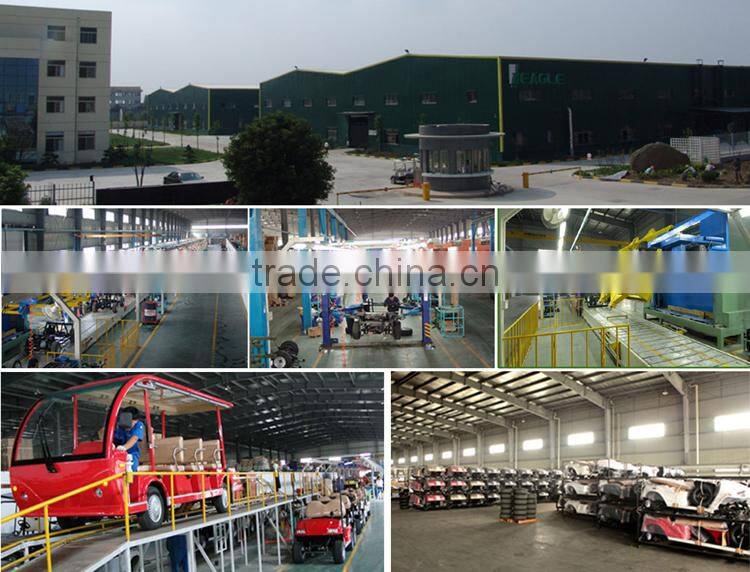

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc..
It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
