Road Legal Electric Buggy , EG2028HR

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

48V

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Seats 1 - 2

Fuel Type Electric

Battery Voltage 48V

Certification CE

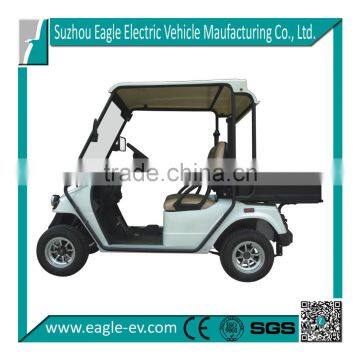

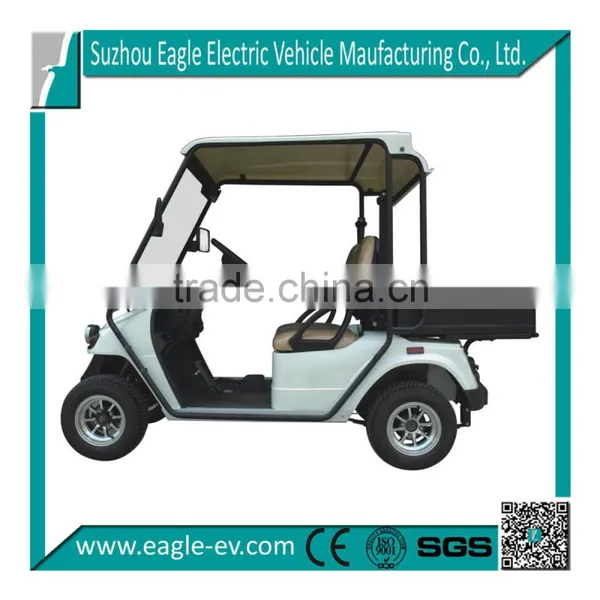

road legal electric buggy , EG2028HR

Description:

EG2040HCXR is street legal electric vehicle with lifted suspension, offroad big tires, manual lifted rear steel cargo box

Product Description

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 5KW (6.8HP), Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	2
Range (loaded) (km)*	up to 100
Max.speed (km/h)	up to 50
Min.turning radius (m)	3.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	450
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP
Windshield	Laminated glass (with E-mark) with wiper and wiper sprayer
Roof supports	Roll bar, texture powder coating
Seatbelt	3-point seatbelt, with E-mark
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Steering column	With lock
Beverage holders	4 cups holders, 2 big and 2 small
Rear cargo box	Steel, with powder coating, with manual lifted function
Side trim	Extruded aluminum
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight(high/low beam), front turning light, rear brake light and rear turning light, all lights with E-mark
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Digital meter	With speedometer, odometer, ampermeter and various indicator
Combination switch	With headlight switch, turning light switch, wiper switch
DC/DC converter	48V/12V

Steering & suspersion

Item	Description
Steering System	Single-stage rack and pinion steering system, with automatic compensation function
Brake System	4-wheel hydraulic drum brake, with hand park brake
Accelerator	Resistance type, stepless speed change
Front suspension	Cylinder hydraulic shock absorber and leaf spring
Rear suspension	Cylinder hydraulic shock absorber and leaf spring
Driving model	Rear axle two stage deceleration, motor direct driving
Rear axle	Steel differential cage, integrated, 12.49:1 gear ratio
Wheel & Tyre	12x7 steel wheel & 24x8-12 tyre

Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

Item	Option description	Item	Option description
1	Formed seat and backrest vinyl	7	Enclosure
2	Roof handle (steel)	8	Battery watering pipe
3	2-point seatbelt	9	Water pump (handle)
4	Backrest cover in wood finish	10	Hour meter
5	Steering wheel in wood finish	11	12V accessory plug
6	Wooden finish dashboard	12	Glove box with door and lock
