road legal electric vehicles, lifted suspension, offroad tire, EG2040ASZR

Name: road legal electric vehicles, lifted suspension, offroad tire, EG2040ASZR
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Product Details

Seats:	5 - 6	Fuel Type:	Electric	Battery Voltage:	48V
Certification:	CE

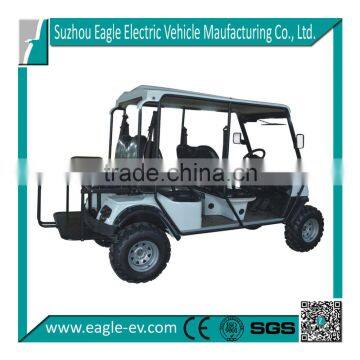

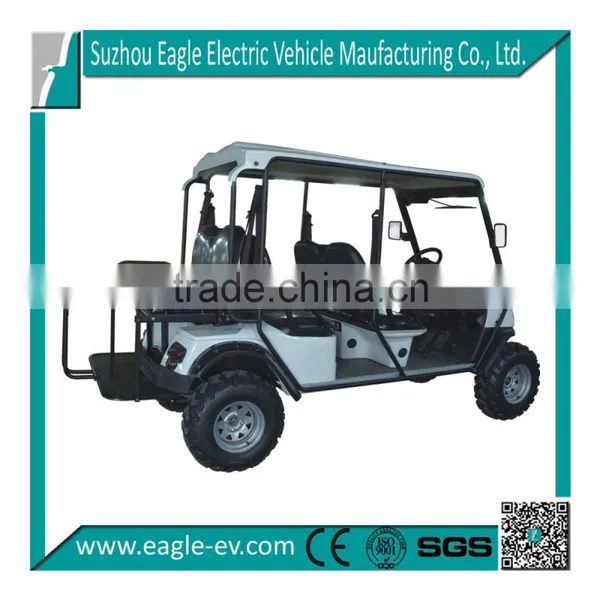

road legal electric vehicles , lifted suspension, offroad tire, EG2040ASZR

Description:

road legal golf cart, with lifted suspension, big offroad tire, 4 seats with rear foldable seat, 45km/h speed, 5KW motor, 3-point seatbelt

Product Description

Key Components

Item	Description
Controller	Curtis controller, 400A, imported from USA directly
Motor	Rated 5KW (6.8HP), Chinese brand Both DC motor and AC motor are available
Battery	Trojan battery, T105+, imported from USA directly
Charger	High Frequency onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)

Performance

Item	Description
Passenger Capacity	4 (with backward flip flop seat)
Range (loaded) (km)*	up to 100
Max.speed (km/h)	up to 50
Min.turning radius (m)	4.5
Max.climbing ability(loaded)	up to 20%
Max. movement after brake at speed of 20km/h	≤4m
Max.loading weight (kgs)	450
Charging time (hour)	8-10
Battery lifespan (cycles)	750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Dimensions

Body and Frame

Item	Description
Frame & Chassis	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front and rear body cover, injected
Roof	FRP
Windshield	Laminated glass (with E-mark) with wiper and wiper sprayer
Roof supports	Roll bar, texture powder coating
Seatbelt	3-point seatbelt, with E-mark
Cushion	Reborn sponge with artificial leather and plastic bottom cover
Backrest	Reborn sponge with artificial leather and plastic cover
Armrest	Formed
Floor mat	Skidproof rubber
Dashboard	Black plastic, with F/R switch, battery power indicator, ignition key on it
Steering column	With lock
Beverage holders	4 cups holders, 2 big and 2 small
Rear flip flop seat	Steel frame, aluminum bottom board, steel standing board and handle
Side trim	Extruded aluminum
Score card holder	On the steering wheel

Electric System

Item	Description
Lights	12V, headlight(high/low beam), front turning light, rear brake light and rear turning light, all lights with E-mark
Horn	Electric horn, 12V
Reverse buzzer	Electric, 12V
Digital meter	With speedometer, odometer, ampermeter and various indicator
Combination switch	With headlight switch, turning light switch, wiper switch
DC/DC converter	48V/12V

Packaging & Shipping

SKD in a steel rack
