Street Legal Electric Car With Cargo Box, EG2048HR

Street Legal Electric Car With Cargo Box, EG2048HR photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
3 - 4
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Seats 3 - 4
Fuel Type Electric
Battery Voltage 48V
Certification CE

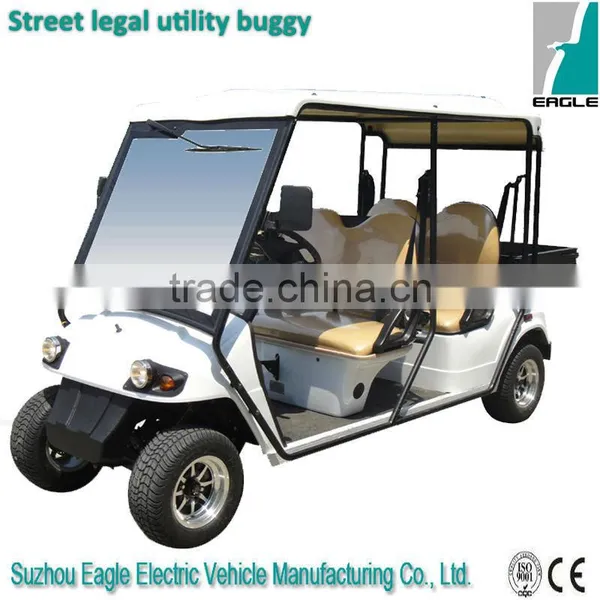

 Street legal electric car with cargo box, EG2048HR
Description:

EG2040HCXR is street legal electric vehicle with lifted suspension, offroad big tires, manual lifted rear steel cargo box



Product Description
Key Components
ItemDescription
ControllerCurtis controller, 400A, imported from USA directly
Motor

Rated 5KW (6.8HP), Chinese brand

Both DC motor and AC motor are available

BatteryTrojan battery, T105+, imported from USA directly
Charger

High Frequency onboard charger

(input 90V-265V, 47-63HZ, output 48V/22A)



Performance
ItemDescription
Passenger Capacity

Range (loaded) (km)*

up to 100
Max.speed (km/h)up to 50
Min.turning radius (m)4.5
Max.climbing ability(loaded)up to 20%
Max. movement after brake at speed of 20km/h4m
Max.loading weight (kgs)450
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

  2)  Range will vary depending on temperature, grade, payload and driving style.



Dimensions
ItemDescription
Overall dimensions (mm)3420x1290x2060 (LxWxH)
Min.ground clearance (mm)150
Wheelbase (mm)2440
Front wheel tread (mm)850
Rear wheel tread (mm)975



Body and Frame
ItemDescription
Frame & ChassisWelded steel framework with phosphate+electro-coating treatment
BodyPP plastic front and rear body cover, injected
RoofFRP
WindshieldLaminated glass (with E-mark) with wiper and wiper sprayer
Roof supportsRoll bar, texture powder coating
Seatbelt3-point seatbelt, with E-mark
CushionReborn sponge with artificial leather and plastic bottom cover
BackrestReborn sponge with artificial leather and plastic cover
ArmrestFormed
Floor matSkidproof rubber
DashboardBlack plastic, with F/R switch, battery power indicator, ignition key on it
Steering columnWith lock
Beverage holders4 cups holders, 2 big and 2 small
Rear cargo boxSteel, with powder coating, with manual lifted function
Side trimExtruded aluminum
Score card holderOn the steering wheel





Electric System
Item   Description
Lights

12V, headlight(high/low beam), front turning light, rear brake light and rear turning light, all lights with E-mark

HornElectric horn, 12V
Reverse buzzerElectric, 12V
Digital meterWith speedometer, odometer, ampermeter and various indicator
Combination switchWith headlight switch, turning light switch, wiper switch
DC/DC converter

48V/12V





Steering & suspersion
ItemDescription
Steering System

Single-stage rack and pinion steering system,

with automatic compensation function

Brake System4-wheel hydraulic drum brake, with hand park brake
AcceleratorResistance type, stepless speed change
Front suspensionCylinder hydraulic shock absorber and leaf spring
Rear suspensionCylinder hydraulic shock absorber and leaf spring
Driving modelRear axle two stage deceleration, motor direct driving
Rear axleSteel differential cage, integrated, 12.49:1 gear ratio
Wheel & Tyre12x7 steel wheel & 24x8-12 tyre





Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

ItemOption descriptionItemOption description
1Formed seat and backrest vinyl7Enclosure
2Roof handle (steel)8Battery watering pipe
32-point seatbelt9Water pump (handle)
4Backrest cover in wood finish10Hour meter
5Steering wheel in wood finish1112V accessory plug
6Wooden finish dashboard12Glove box with door and lock





Packaging & Shipping

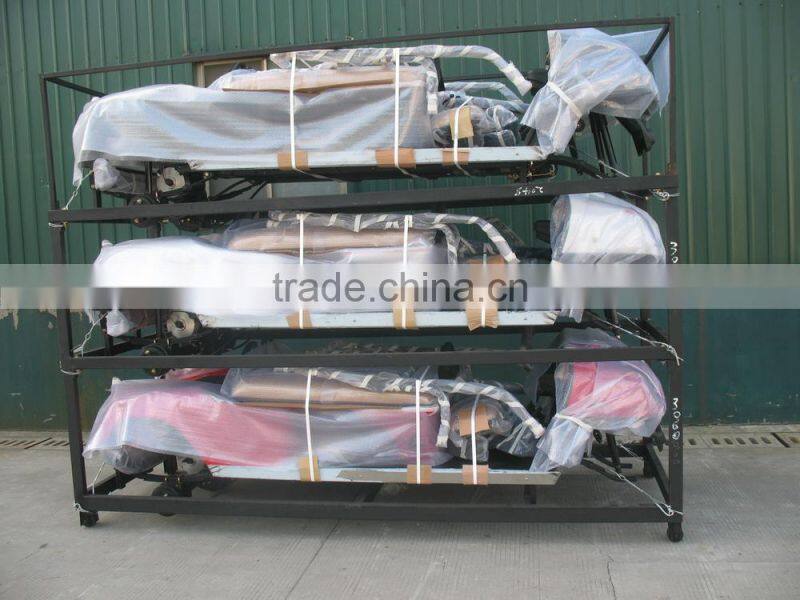

 SKD in a steel rack

Container loading qtySemi-knock-downRefer Picture
20'ft GP6 unitsStreet legal electric car with cargo box, EG2048HR
40'ft GP12 units
40'HQ18 units





Our Services



  •  Customization is available
  • 13 months warranty from shipping date
  • FOC spare parts provided





Company Information



Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.

Street legal electric car with cargo box, EG2048HRStreet legal electric car with cargo box, EG2048HRStreet legal electric car with cargo box, EG2048HRStreet legal electric car with cargo box, EG2048HR



Certifications

 Street legal electric car with cargo box, EG2048HR



After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
