Electric Scissor Lifter With 6m Lifting Height ,EG6060J, CE Approved

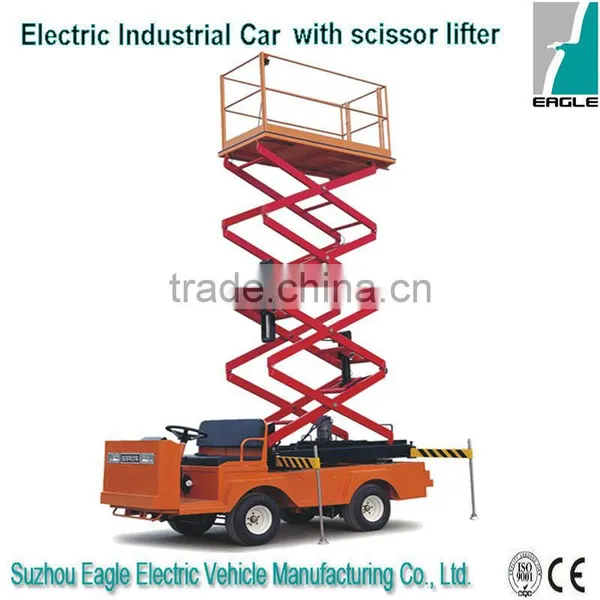

Electric Scissor Lifter With 6m Lifting Height ,EG6060J, CE Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Certification:
CE
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Certification CE
Electric scissor lifter, 6m lifting height ,EG6060J
Description:

EG6060J, electric industrial vehicle, with scissor lifter on the rear cargo bed, lifting height of 6m and weight of 300kgs



Product Description



Key Components
ItemDescription
ControllerCurtis controller, 275A, imported from USA directly
Motor

Rated power 3KW (4.08HP) DC motor, Chinese brand

BatteryTrojan battery, T105+, imported from USA directly
Charger

48V high frequence onboard charger (input 90V-265V, 47-63HZ, output 48V/22A)



Performance
ItemDescription
Passenger Capacity2

Range (loaded) (km)*

up to 60
Max.speed (km/h)up to 35
Min.turning radius (m)4.3
Max.climbing ability(loaded)up to 20%
Max.lifting height (m)6
Max. movement after brake at speed of 20km/h4m
Max.lifting weight (kgs)300
Charging time (hour)8-10
Battery lifespan (cycles)750

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

  2)  Range will vary depending on temperature, grade, payload and driving style.



Dimensions
ItemDescription
Overall dimensions (mm)3415x1390x1200 (LxWxH)
Rear cargo bed dimensions (mm)2110x1370x260 (LxWxH)
Min.ground clearance (mm)160
Wheelbase (mm)1730
Front wheel tread (mm)1210
Rear wheel tread (mm)1200



Body and Frame
ItemDescription
Frame & ChassisWelded steel framework with sand blasting and painting
BodySteel plate
SeatReborn sponge with artificial leather, with steel armrest
FloorBamboo floor with Skidproof leather
Rear scissor lifterHydraulic lifting
Beverage holders1 cups holders
Side rear view mirror2pcs, one long-arm mirror and one small mirror



Electric System
Item   Description
Lights

12V, headlight (H/L beam), front turning light,

Rear taillight (brake light and rear turing light)

HornElectric horn, 12V
Reverse buzzerElectric, 12V
Combination switch
DC/DC converter

48V/12V

Digital Meterwith Current meter, voltometer, speedometer and various indicators



Steering & suspersion
ItemDescription
Steering System

Single-stage rack and pinion steering system,

with automatic compensation function

Brake System4-wheel hydraulic drum brake with hand park brake
AcceleratorResistance type, stepless speed change
Front suspensionIndependent suspension
Rear suspensionintegrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Transmission systemClutch, 4F+1R gear box, transmission shaft
Wheel & Tyre4J*12 steel rim, 155R12C 8PR tyre, with wheel cover





Option Accessories

To increase the sales value of our vehicles, we also provide many optional accessories.

ItemOption description
12-point seatbelt
2Side mirror
3Battery watering pipe
4Water pump (handle)
5Cabin with Canvas roof with windshield







Packaging & Shipping



Container loading qtySemi-knock-downRefer Picture
20'ft GP1Electric scissor lifter with 6m lifting height ,EG6060J, CE approved
40'ft GP3
40'HQ3





Our Services
  •  Customization is available
  • 13 months warranty from shipping date
  • FOC spare parts provided





Company Information



Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.

 Electric scissor lifter with 6m lifting height ,EG6060J, CE approvedElectric scissor lifter with 6m lifting height ,EG6060J, CE approvedElectric scissor lifter with 6m lifting height ,EG6060J, CE approvedElectric scissor lifter with 6m lifting height ,EG6060J, CE approved
