Home > Transportation > Bus > City Bus > Electric Eight Seats Shuttle Bus , CE Approved,USA LSV

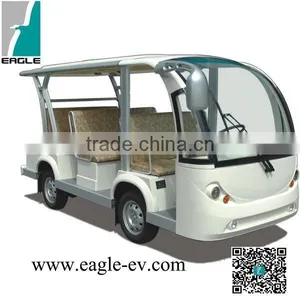

Electric Eight Seats Shuttle Bus , CE Approved,USA LSV

Electric Eight Seats Shuttle Bus , CE Approved,USA LSV photo-1

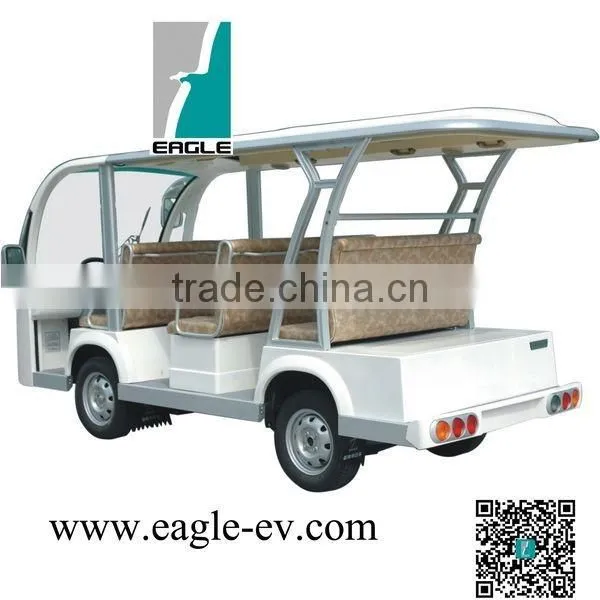

Electric Eight Seats Shuttle Bus , CE Approved,USA LSV photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
11 - 20
Emission Standard:
Other
Transmission Type:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Seats 11 - 20
Emission Standard Other
Transmission Type Automatic
Max Speed 51 - 70 km/h
Steering Position LHD
Fuel Type Electric
Dimensions (L x W x H) (mm) 4230X1490X2050
Place of Origin Jiangsu, China
Brand Name Eagle
Model Number EG6088K



EG6088K with CE ceritificate



electric eight seats shuttle bus



LSV available





Product Description



SpecificationsModelEG6088K
Key ComponentsPower SourcePure Electric
Electric SystemBoth AC and DC system are available
BatteryTrojan battery
MotorChinese Motor
ControllerCurtis controller
ChargerChina origin, input 110V-240V~50Hz-60Hz,
PerformancePassenger capacity8
Range (loaded) based on flat road at a speed of 20km/h (km)*Up to 110
Max. speedUp to 42
Minimum turning radius (m)4.5
Max. climbing ability (loaded)  Up to 20%
Max. movement after brake at speed of 20km/h≤4m
Max. loading weight640kgs
DimensionsOverall dimensions (mm)4230x1490x2050
Min. ground clearance (mm)140
Wheelbase (mm)1900
Front wheel tread (mm)1210
Rear wheel tread (mm)1200
Body and FrameFrameWelded steel framework with sand blasting+paint treatment
BodyFibreglass(the first seat bottom and dashboard), PP(other seat bottoms and front body)
RoofFibreglass+aluminum frame, with roof handle
Electric systemLighting system and hornHeadlights,front turn signals, fog lights, rear turn signals, taillights,fog light, 1 reverse light, with DC-DC converter, horn.
Steering and SuspensionSteering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Brake systemFour wheel hydraulic drum brake+hand parking brake
Suspension systemFront suspension:Independent suspension, helix spring + shock absorber;Rear suspension:rear plate spring + shock absorber
Driving modeClutch, 4F+1R gear box, transmission shaft/Automatic Drive Sytem (Stepless Speed change system)
Rear axleIntegrated
Wheel & Tyre4J*12 Steel wheel, wheel cap, 155R12,8PR
Options2point seat belt
Overshadowing Curtain/Enclosure
New seat
Formed seat&backrest vinyl
Inner rear view mirror
License plate light
CD player to replace MP3 receiver
Microphone Wired
with water sprayer
Solar panel
On-board charger
Right hand drive system
Electrical power steering
Front disc brake and rear drum brake, with vacuum booster
4J*12 Aluminum wheel,
Body Color Up to 6 kinds of standard color for option
LoadingBoth Assembly and Disassembly are available







Packaging & Shipping



Container loading qtyDisassembledAssembled
Qty/20'2units1unit
Qty/40'4units2units
Qty/40'HQ4units2units







Our Services



All electric vehicles sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.





Company Information

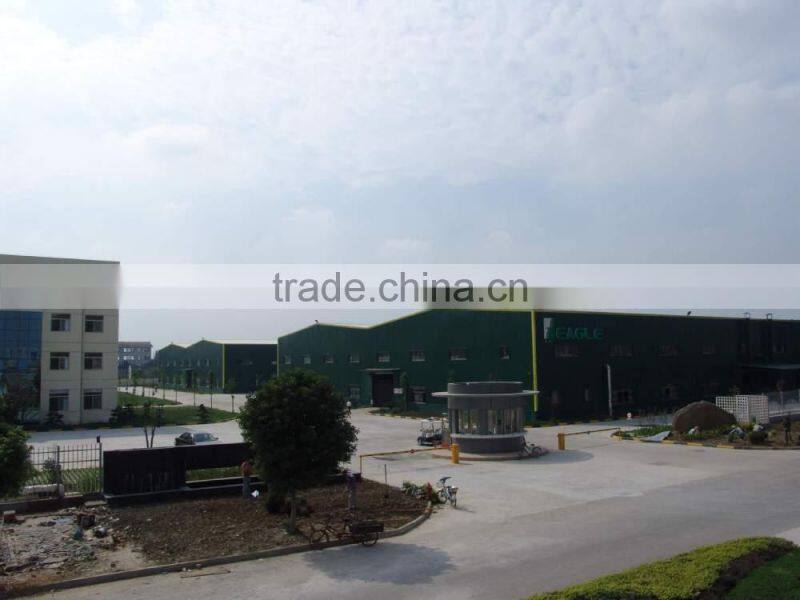

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Suzhou Eagle takes quality as its lifeline. Eagle invests a lot to make production moulds, jigs and checking moulds to ensure precise component parts. Eagle invests a lot on checking machines like Salt spray test equipment for anti-rust ability, Rockwell hardness tester, Three-coordinate shock test-bed, Life test equipment, etc. to ensure component parts are produced and treated correctly. Eagle chooses the most top quality key component parts (Battery, Controller) to ensure the performance of its vehicles. In all, Eagle follows International Quality Standard to produce, control and inspect its electric vehicles. Hence, Eagle was awarded ISO9001-2000 Certificate in 2003 and Certificate of WMI Code (L4F) in 2006.

Eagle people believe good service has the same importance as good quality. Eagle’s sales persons can be reached in 24 hours x 365 days. Eagle’s sales persons are willing to answer any emails from their customers within 24 hours. Eagle provides all the spare parts (Except battery) of its vehicles.

With effective management and specialized talents, Suzhou Eagle is dedicated to offering top quality products with competitive price and first class after-sales service.



electric eight seats shuttle bus , CE approved,USA LSVelectric eight seats shuttle bus , CE approved,USA LSVelectric eight seats shuttle bus , CE approved,USA LSVelectric eight seats shuttle bus , CE approved,USA LSV
