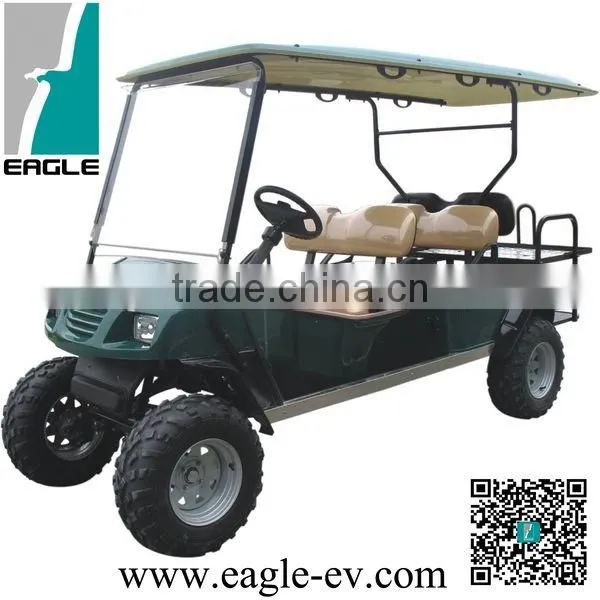

Electric Six Seat Hunting Buggy, Hunting Vehicle,hunting Buggy
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
5 - 6
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Dining Car ; Two SeatsNegotiableMOQ: 1 Unit -
Six Seats Electric Golf Cart With Two Rear Facing SeatsNegotiableMOQ: 1 Unit
-
Four Seats Electric Golf Cart Including Two Rear Facing SeatsNegotiableMOQ: 1 Unit
-
Dining Car With Catering Equipment , EG2048TNegotiableMOQ: 1 Unit
-
Electric Dining Car for Sale With Closed Box , EG2028TNegotiableMOQ: 1 Unit
Seats
5 - 6
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
EG2020ASZ with EEC approved
electric six seat hunting buggy
USA LSV approved
CE approved
Product Description
| Specifications | Model | EG2040ASZ |
| Key Components | Power Source | Pure Electric |
| Electric System | Both AC and DC system are available | |
| Battery | Trojan battery | |
| Motor | Chinese Motor | |
| Controller | Curtis controller | |
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |
| Performance | Passenger capacity | 6 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | Up to 55 | |
| Max. speed | Up to 40 | |
| Minimum turning radius (m) | 4 | |
| Max. climbing ability (loaded) | Up to 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | |
| Max. loading weight | 450kgs | |
| Dimensions | Overall dimensions (mm) | 3500x1340x2100 |
| Min. ground clearance (mm) | N/A | |
| Wheelbase (mm) | 2440 | |
| Front wheel tread (mm) | 850 | |
| Rear wheel tread (mm) | 975 | |
| Body and Frame | Frame | Welded steel framework with phosphate+electro-coating treatment |
| Body | PP plastic front body + PP plastic rear body | |
| Roof | Fiberglass | |
| Electric system | Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. |
| Steering and Suspension | Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function |
| Brake system | Mechanical brake | |
| Suspension system | Front and rear plate spring + vibration absorber | |
| Driving mode | Rear axle two stage deceleration, motor direct driving | |
| Rear axle | Integrated, Gear ratio12.49:1 | |
| Wheel & Tyre | 22 x 11-10 tyre, 10*8 Steel wheel | |
| Option | 2point seat belt | |
| Formed seat&backrest vinyl | ||
| Backrest cover in wood finish | ||
| Dashboard in wood finish | ||
| Steering wheel in wood finish | ||
| Glove box door (include two locks) in wood finish (inside and outside) | ||
| Inner rear view mirror | ||
| Enclosure | ||
| Hour meter | ||
| Meter(only available for 48V system) | ||
| 22 x 11-10 tyre, 10*8 Aluminum wheel | ||
| On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A | ||
| 12x7 Steel rim, 25*8-12 tyre | ||

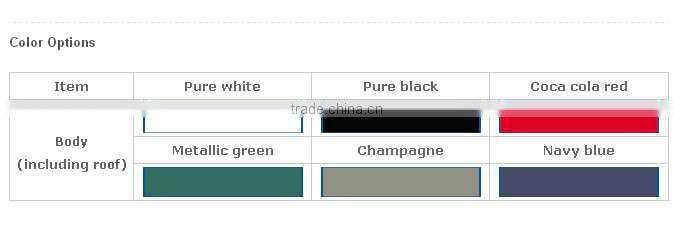

| Body Color | Up to 6 kinds of standard color for option | |
| Loading | Both Assembly and Disassembly are available | |
Packaging & Shipping
| Container loading qty | Disassembled(with top basket, front basket, front bumper | Disassembled (without top basket, front basket, front bumper) |
| Qty/20' | 4units | 4units |
| Qty/40' | 10units | 12units |
| Qty/40'HQ | 14units | 15units |
Our Services
All electric vehicles sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
Company Information
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.
