Home > Sporting Goods & Recreation > Golf Cart > Road Legal Street Legal Electric Hunting Buggy, EG2020ASZR-01

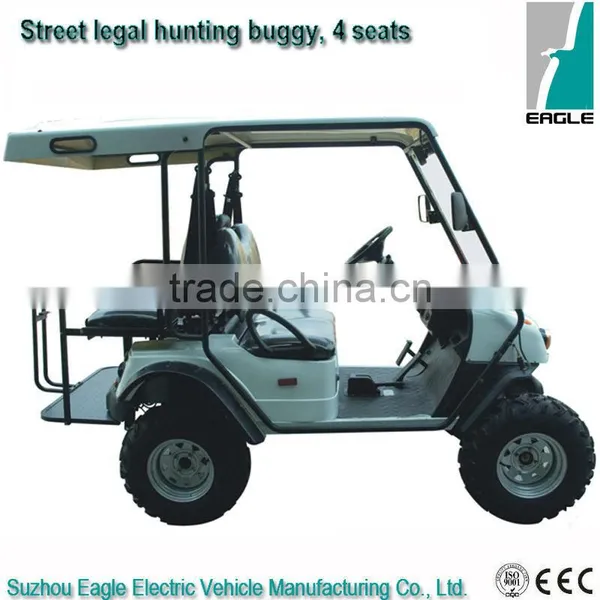

Road Legal Street Legal Electric Hunting Buggy, EG2020ASZR-01
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
3 - 4
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Street Legal Sports Utility Vehicle, With Flip Flop Seat, EG2040ASZR-01NegotiableMOQ: 1 Unit -
Road Legal Sports Utility Vehicle, With Cargo Bed, EG2040HCXR-01NegotiableMOQ: 1 Unit
-
Street Legal Electric Golf Utility Buggy, CE Approved, EG2048HSZR-01NegotiableMOQ: 1 Unit
-
Street Legal Electric Vehicle, 4 Seats, EEC ApprovedNegotiableMOQ: 1 Unit
-
Street Legal Electric Car, 2 Seats With Cargo Bed, EEC ApprovedNegotiableMOQ: 1 Unit
Seats
3 - 4
Fuel Type
Electric
Battery Voltage
48V
Certification
EEC
Road legal Street legal electric hunting buggy, EG2020ASZR-01
Product Description
| Model | EG2020ASZR-01 | EG2020ASZR-02 | EG2020ASZR-04 | ||
| System | 48V/5KW AC system | 48V/5.3KW Sepex | 48V/5KW AC system | ||
| Key Components | |||||
| Battery | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | ||
| Motor | 5KW Chinese motor | 5.3KW Chinese motor | 5KW Chinese motor | ||
| Controller | Curtis 1236 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minutes) | ||
| Performance | |||||
| Passenger capacity | 4 | 4 | 4 | ||
| Range (loaded) based on flat road at a speed of 20km/h (km)* | 100 | 80 | 100 | ||
| Max. speed(km/h) | 40 | 40 | 40 | ||
| Minimum turning radius (m) | 3.5 | 3.5 | 3.5 | ||
| Max. climbing ability (loaded) | 20% | 20% | 20% | ||
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ||
| Max. loading weight | 300kgs | 300kgs | 300kgs | ||
| Net weight | 620kgs | 620kgs | 620kgs | ||
| Dimensions | |||||
| Overall dimensions (mm) | 3015*1290*2060 | ||||
| Min. ground clearance (mm) | 120 | ||||
| Wheelbase (mm) | 1700 | ||||
| Front wheel tread (mm) | 855 | ||||
| Rear wheel tread (mm) | 975 | ||||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | |||||
| Body and Frame | |||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | ||||
| Body | PP plastic front body + PP plastic rear body | ||||
| Roof | Fiberglass(2P Roof) | ||||
| Fiberglass(4P Roof) | |||||
| Roof handle | |||||
| Windshield | one-piece Laminated glass | ||||
| Wiper and water tank | / | ||||
| Roof Frame | Carbon Steel, powder coating | ||||
| 3point seat belt | / | ||||
| Large Seats: | |||||
| 1) backrest and cushion | Rebond seat + artificial leather | ||||
| 2) armrest | Formed | ||||
| 3) plastic seat bottom | |||||
| Formed seat&backrest vinyl | exclude rear flip-flop seat cushion | ||||
| Backrest cover in wood finish | |||||
| Floor | rubber | ||||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | ||||
| Dashboard in wood finish | |||||
| Steering wheel in wood finish | |||||
| Beverage holders | 4 cups drink holders | ||||
| Glove box | |||||
| Glove box door (include two locks) in black plastic | 2 doors per set | ||||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | ||||
| Side trim | Aluminum | ||||
| Score card holder | on steering wheel | ||||
| Towing bracket | on front of golf car | ||||
| Side rear view mirror | Two pieces per cart | ||||
| Battery watering system,48V system | without water supply tool | ||||
| Manual Pump | water supply tool (other water supply tools are available) | ||||
| Electric system | |||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. All lights with E-mark | ||||
| Reversing alarm | |||||
| Meter | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | ||||
| 12V accessory plug | to be mounted on the dashboard | ||||
| Hour meter | |||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | ||||
| Steering and Suspension | |||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | ||||
| Brake System | 4-wheel hydraulic brake, front and rear drum brake, with hand parking brake | ||||
| Accelerator | Stepless speed change | ||||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | ||||
| Driving mode | Rear axle two stage deceleration, motor direct driving | ||||
| Rear axle | Integrated, Gear ratio12.49:1 | ||||
| Wheel & Tyre | 12x7 Steel rim, 24*8-12 tyre | ||||
| 12x7 Steel rim, 25*8-12 tyre | |||||
Color
Packaging & Shipping
| Container loading qty | Disassembled |
| Qty/20' | 6units |
| Qty/40' | 12units |
| Qty/40'HQ | 18units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
