Home > Transportation > UTV & Parts > Street Legal Sports Utility Vehicle, With Flip Flop Seat, EG2040ASZR-01
Street Legal Sports Utility Vehicle, With Flip Flop Seat, EG2040ASZR-01
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Electric
Certificate:
EEC
Fuel:
Electric
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Road Legal Sports Utility Vehicle, With Cargo Bed, EG2040HCXR-01NegotiableMOQ: 1 Unit -
Street Legal Electric Golf Utility Buggy, CE Approved, EG2048HSZR-01NegotiableMOQ: 1 Unit
-
Street Legal Electric Vehicle, 4 Seats, EEC ApprovedNegotiableMOQ: 1 Unit
-
Street Legal Electric Car, 2 Seats With Cargo Bed, EEC ApprovedNegotiableMOQ: 1 Unit
-
Street Legal Electric Car, 2 Seats With Cargo Bed, EECNegotiableMOQ: 1 Unit
Type
Other, Electric
Certificate
EEC
Fuel
Electric
Transmission Type
Automatic
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG2040ASZR-01

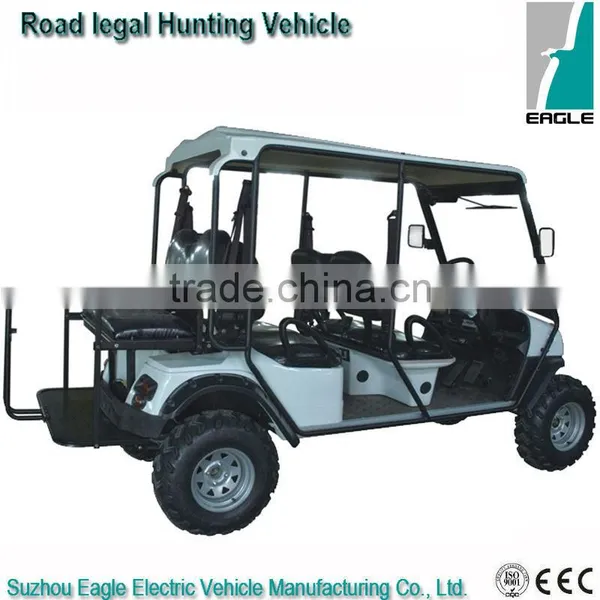

Street legal sports utility vehicle, with flip flop seat, EG2040ASZR-01
Product Description
| Model | EG2040ASZR-01 | EG2040ASZR-02 | EG2040ASZR-04 | |
| System | 48V/5KW AC Sepex | 48V/5.3KW Sepex | 48V/5KW AC Sepex | |
| Key Components | ||||
| Battery | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | 8PCSxT105(185Ah@5hr rate) | |
| Motor | 5KW Chinese motor | 5.3KW Chinese motor | 5KW Chinese motor | |
| Controller | Curtis 1236 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minutes) | |
| Performance | ||||
| Seating number | 4 | 4 | 4 | |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >100 | >80 | >100 | |
| Max. speed (km/h) | 50 | 40 | 40 | |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | |
| Max. climbing ability (loaded) | 20% | 20% | 20% | |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | |
| Max. loading weight | 450kgs | 450kgs | 450kgs | |
| Net weight | 760kgs | 760kgs | 760kgs | |
| Dimensions | ||||
| Overall dimensions (mm) | 3765*1290*2060 | |||
| Min. ground clearance (mm) | 120 | |||
| Wheelbase (mm) | 1700 | |||
| Front wheel tread (mm) | 855 | |||
| Rear wheel tread (mm) | 975 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||
| Body | PP plastic front body + PP plastic rear body | |||
| Roof | Fiberglass | |||
| Roof handle | ||||
| Windshield | one-piece Laminated glass | |||
| Wiper and water tank | / | |||
| Upright and bracket | Carbon Steel, powder coating | |||
| 3point seat belt | / | |||
| Large Seats: | ||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||
| 2) armrest | Formed | |||
| 3) plastic seat bottom | ||||
| Formed seat&backrest vinyl | exclude the first rwo of seat cushion and rear flip-flop seat cushion | |||
| Backrest cover in wood finish | ||||
| Floor | rubber | |||
| Center storage basket | Large volume | |||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||
| Dashboard in wood finish | ||||
| Steering wheel in wood finish | ||||
| Beverage holders | 4 cups drink holders | |||
| Glove box | ||||
| Glove box door (include two locks) in black plastic | 2 doors per set | |||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | |||
| Side trim | Aluminum | |||
| Score card holder | on steering wheel | |||
| Towing bracket | on front of golf car | |||
| Side rear view mirror | Two pieces per cart | |||
| Battery watering system,48V system | without water supply tool | |||
| Manual Pump | water supply tool (other water supply tools are available) | |||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||
| Reversing alarm | ||||
| Meter | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | |||
| 12V accessory plug | to be mounted on the dashboard | |||
| Hour meter | ||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Brake system | 4-wheel hydraulic drum brake + hand brake | |||
| Accelerator | Stepless speed change | |||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||
| Rear axle | Integrated, Gear ratio12.49:1 | |||
| Wheel & Tyre | 12x7 Steel rim, 24*8-12 tyre | |||
| 12x7 Steel rim, 25*8-12 tyre | ||||
Color
Packaging & Shipping
| Container loading qty | Disassembled |
| Qty/20' | 4units |
| Qty/40' | 10units |
| Qty/40'HQ | 14units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
