Street Legal Electric Vehicle, 4 Seats, EEC Approved

Street Legal Electric Vehicle, 4 Seats, EEC Approved thumbnail-1
Street Legal Electric Vehicle, 4 Seats, EEC Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Type:
Other, Street legal vehicle
Fuel:
Electric
Gear Box:
Automatic
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Type Other, Street legal vehicle
Fuel Electric
Gear Box Automatic
Made In China
Steering Left
Drive RWD
Brand Name Eagle
Place of Origin Jiangsu, China
Model EG6043KR-00

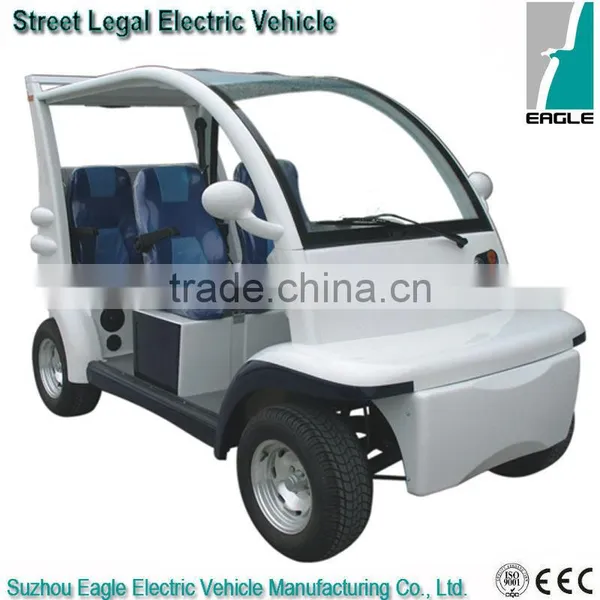

Street legal electric vehicle, 4 seats, EEC approved

Product Description



Model EG6043KR-00
System 48V/4KW Sepex
Key Components
Battery 8xT105(185Ah@5hr rate)
Motor 3.8KW Chinese motor
Controller Curtis 1244 (400A@2minutes)
Performance
Passenger capacity 4
Range (loaded) based on flat road at a speed of 20km/h (km)* >80
Max. speed @10.25:1 gear ratio 40
Minimum turning radius (m) 4
Max. climbing ability (loaded)   @ 10.25:1 gear ratio 20%
Max. movement after brake at speed of 20km/h ≤4m
Max. loading weight 320kgs
Net weight (without battery) 400kgs
Dimensions
Overall dimensions (mm)
Min. ground clearance (mm)
Wheelbase (mm)
Front wheel tread (mm)
Rear wheel tread (mm)
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame Welded steel framework with sand blasting+paint treatment
Body Fibreglass
Roof Fibreglass+steel frame
Windshield Laminated glass, with E-mark
3point seat belt 4pcs, with E-mark
Large Seats:
     1) backrest and cushion Sponge + artificial leather
     2) armrest Soft expanded plastic
Hand holder for front passenger 1pc hand holder fixed under the roof
Hand holder for rear passenger 2pcs, fixed in the back of front backrest
Rear storage box Fibreglass
Floor Bamboo + artificial leather
Inner rear view mirror One piece per cart in the middle of the windshield
Side rear view mirror Two pieces per cart (with E-mark)
Battery watering system,48V system without water supply tool
Manual Pump water supply tool (other water supply tools are available)
Rain cover PVC
Electric system
Lighting system and horn(all lights and horn with E-mark) 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn.
Dashboard forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items
CD player
Speaker 2pcs
Reversing alarm
Switch assembly Lights switch, horn switch, wiper switch
Wiper 12V
Charger China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A
Steering and Suspension
Steering system Single-stage rack and pinion steering system, automatic rocker compensating function
Lock for steering system
Brake system Four wheel hydraulic drum brake+foot parking brake
Accelerator Stepless speed change
Front suspension Independent suspension, helix spring + shock absorber
Rear suspension rear plate spring + shock absorber
Driving mode Rear axle two stage deceleration, motor direct driving
Rear axle Integrated, Gear ratio10.25:1
Wheel & Tyre 225/55b12 10PR tire(with E-mark), 12X7 aluminum wheel



Color

 Street legal electric vehicle, 4 seats, EEC approved

Packaging & Shipping



Container loading qty Disassembled Assembled
Qty/20' 2units 1unit
Qty/40' 6units 3units
Qty/40'HQ 6units 3units




Street legal electric vehicle, 4 seats, EEC approved

Company Information

 Street legal electric vehicle, 4 seats, EEC approved

Certifications

 Street legal electric vehicle, 4 seats, EEC approved

After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
