Home > Sporting Goods & Recreation > Golf Cart > Cheap Electric 4 Seater Golf Cart With Jumper Seat , EG2026KSF

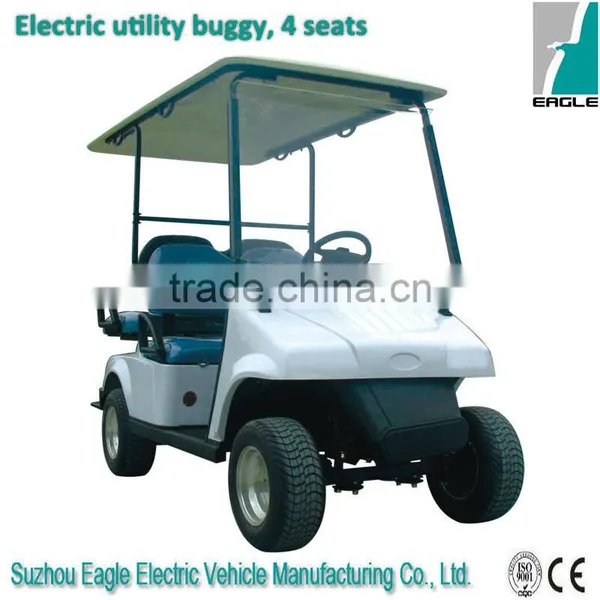

Cheap Electric 4 Seater Golf Cart With Jumper Seat , EG2026KSF
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
3 - 4
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Golf Cart With Flip Flop Seat, CE Approved,EG2026KSZNegotiableMOQ: 1 Unit -
Electric Golf Cart With Cargo Box, CE Approved, EG2046HNegotiableMOQ: 1 Unit
-
Electric Delivery Car With Cargo Box and 2 Seats, CE ApprovedNegotiableMOQ: 1 Unit
-
6 Seater Electric Scooter With Jumper Seat for Golf CruiserNegotiableMOQ: 1 Unit
-
Small Electric Towing Tractor With 5 Tons Towing Capacity, CE ApprovedNegotiableMOQ: 1 Unit
Seats
3 - 4
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
cheap electric 4 seater golf cart with jumper seat , EG2026KSF
Product Description
| Model | EG2026KSF | EG2026KSF01 | EG2026KSF03 | EG2026KSF05 | EG2026KSF06 | EG2026KSF07 |
| System | 48V/4KW Sepex | 36V/3KW Sepex | 48V/5.3KW Sepex | 48V/3KW AC System | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | ||||||
| Battery | 8xT105(185Ah@5hr rate) | 6xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 3KW ADC motor | 5.3KW Chinese Motor | 3KW German Motor | 5KW Chinese Motor | 5KW DV9 Motor |
| Controller | Curtis 1268 (400A@2minutes) | Curtis 1243 (300A@2minutes | Curtis 1268 (400A@2minutes | Zapi ACE0(280A@2minutes) | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes |
| Performance | ||||||
| Passenger capacity | 4 | 4 | 4 | 4 | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >80 | >55 | >80 | >100 | >100 | >80 |
| Max. speed @12.76:1 gear ratio | 32 | 21 | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 40 | -- | -- | -- | -- | -- |
| Minimum turning radius (m) | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 | 3.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 25% | 20% | 25% | 25% | 25% | 25% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 18% | 15% | -- | -- | -- | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 320kgs | 320kgs | 320kgs | 320kgs | 320kgs | 320kgs |
| Net weight | 555kgs | 500kgs | 556kgs | 554kgs | 565kgs | 556kgs |
| Dimensions | ||||||
| Overall dimensions (mm) | 2720X1180X1800 | |||||
| Min. ground clearance (mm) | 120 | |||||
| Wheelbase (mm) | 1700 | |||||
| Front wheel tread (mm) | 855 | |||||
| Rear wheel tread (mm) | 975 | |||||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||||
| Body and Frame | ||||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||||
| Body | PP plastic front body + PP plastic rear body | |||||
| Roof | FRP | |||||
| Plastic | ||||||
| Windshield | one-piece Organic glass | |||||
| Windshield, hinged | ||||||
| Stainless steel package | including front upright, rear upright, caddie handle | |||||
| 2point seat belt | ||||||
| Large Seats: | ||||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||||
| 2) armrest | Formed | |||||
| 3) plastic seat bottom | ||||||
| Backrest cover in wood finish | ||||||
| Floor | rubber | |||||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||||
| Dashboard in wood finish | ||||||
| Steering wheel in wood finish | ||||||
| Beverage holders | 4 cups drink holders | |||||
| Glove box | ||||||
| Side trim | plastic | |||||
| Score card holder | on steering wheel | |||||
| Towing bracket | on front of golf car | |||||
| Inner rear view mirror | One piece per cart in the middle of the windshield | |||||
| Side rear view mirror | Two pieces per cart | |||||
| Battery watering system,48V system | without water supply tool | |||||
| Battery watering system,36V system | without water supply tool | |||||
| Manual Pump | water supply tool (other water supply tools are available) | |||||
| Overshadowing Curtain | ||||||
| Enclosure | ||||||
| Electric system | ||||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||||
| Reversing alarm | ||||||
| Police Light | ||||||
| 12V accessory plug | to be mounted on the dashboard | |||||
| Hour meter | ||||||
| Solar Panel | 48V, 185W | |||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||||
| Steering and Suspension | ||||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||||
| Brake system | Mechanical brake | |||||
| 4-wheel hydraulic brake + hand brake | ||||||
| 4-wheel hydraulic brake, front disc brake, rear drum brake | ||||||
| Accelerator | Stepless speed change | |||||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||||
| Rear axle | Integrated, Gear ratio 12.76:1 | |||||
| Integrated, Gear ratio 10.26:1 | ||||||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | |||||
| 6J-10 steel wheel with cap & 205/50-10 4PR | ||||||
| 8*7 steel wheel with cap & 18*8.5-8 4PR | ||||||
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
