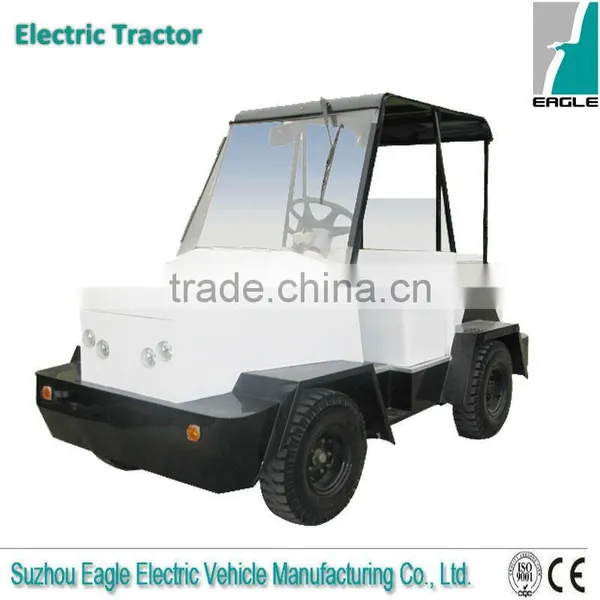

Small Electric Towing Tractor With 5 Tons Towing Capacity, CE Approved

Small Electric Towing Tractor With 5 Tons Towing Capacity, CE Approved thumbnail-1
Small Electric Towing Tractor With 5 Tons Towing Capacity, CE Approved photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Wheel Tractor
By wheel:
2WD
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Wheel Tractor
By wheel 2WD
Usage Other
Certificate CE
Brand Name Eagle
Model Number EG6050Y
Place of Origin Jiangsu, China

small Electric towing tractor with 5 tons towing capacity, CE approved

Product Description



Model EG6050Y
System 72V/10KW Series With CE Certificate for EU
Key Components

Battery 12xT105(185Ah@5hr rate)
Motor 10KW Chinese motor
Controller Curtis 1209 (400A@2minutes)
Performance
Passenger capacity 1
Range (loaded) based on flat road at a speed of 20km/h (km)* >?
Max. speed 25km/h Above photo is just for reference!
Minimum turning radius (m) 3 The final product should subject to the
Max. climbing ability (loaded)  10% Configuration chose
Max. movement after brake at speed of 20km/h ≤? *Range will vary depending on temperature, grade, payload and driving style
Max. Towing Capacity 5000kgs
Net weight
Dimensions
Overall dimensions (mm) 3000X1400X2000
Cargo bed dimensions (mm)
Min. ground clearance (mm) 130
Wheelbase (mm) 1400
Front wheel tread (mm) 1200
Rear wheel tread (mm) 1200
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame Welded steel framework with sand blasting+paint treatment S
Body FRP S
2 point seat belt O plus USD23.00
Large Seats:
     1) backrest and cushion Rebond seat + artificial leather S
     2) armrest Steel S
Floor Bamboo board+ plastic S
Cover for rear bed plywood+ galvanized steel plate on the top S
Inner rear view mirror 1pc  S





Battery watering system,72V system without water supply tool O plus USD220.00
Manual Pump water supply tool (other water supply tools are available) O plus USD30.00
Front windshield Organic plastic S
Canopy Top Steel frame+Canvas Top S
Electric system
Lighting system and horn Front: 2 Headlights, 2 front turn signals;  Back: 2 rear turn signals, 2 brake lights; S
DC/DC Converter 72V/12V DC/DC S
Reversing alarm S
Dashboard meter Voltameter, ammeter, emergency switch, ignition key; Headlight switch, turn signal switch, horn button;   S
Charger China origin, input 110V-240V~50Hz-60Hz, output 348V, 25A  S
Steering and Suspension
Steering system Recirculating ball-type steering gear S
Brake system 4-wheel hydraulic drum brake + hand brake, with vacuum booster S
Transmission system Clutch, gear box, transmission shaft S
Front suspension system non-independent suspension, leaf spring S
Rear suspension system integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber S
Wheel & Tyre Front 12*3.00D steel rim, rear 5.60-13 steel rim, 6.5-10' tyre S
Standard Body Color (customized color if available, but extra cost should be paid)








Standard Seat Color



                White seat                                                    Tan Seat
 All the color showed here is just for reference!
The real color of the car may look different as
showed here!

Container loading qty Assembled
Qty/20' 1units
Qty/40' 3units
Qty/40'HQ 3units



Packaging & Shipping

 small Electric towing tractor with 5 tons towing capacity, CE approved

small Electric towing tractor with 5 tons towing capacity, CE approved



Company Information

 small Electric towing tractor with 5 tons towing capacity, CE approved



Color

 small Electric towing tractor with 5 tons towing capacity, CE approved



After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
