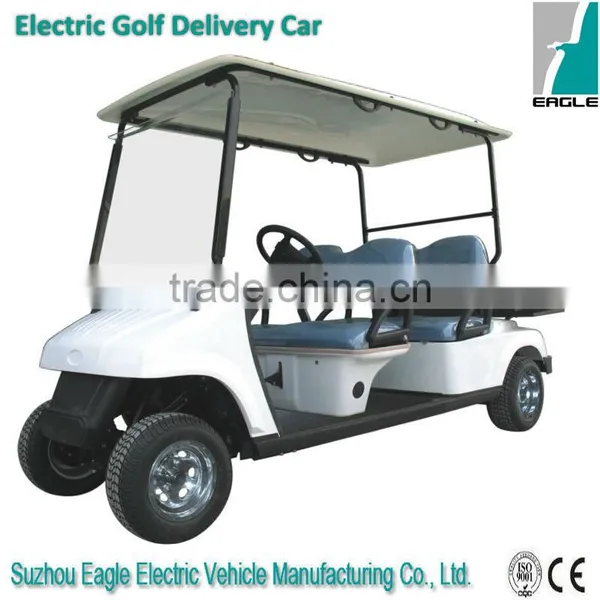

Electric Golf Cart With Cargo Box, CE Approved, EG2046H
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
3 - 4
Fuel Type:
Electric
Battery Voltage:
48V
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Delivery Car With Cargo Box and 2 Seats, CE ApprovedNegotiableMOQ: 1 Unit -
6 Seater Electric Scooter With Jumper Seat for Golf CruiserNegotiableMOQ: 1 Unit
-
Small Electric Towing Tractor With 5 Tons Towing Capacity, CE ApprovedNegotiableMOQ: 1 Unit
-
8 Seater Electrical Golf Trolley for Golf ClubNegotiableMOQ: 1 Unit
-
Park Vehicle of Electric Utility Car , CE ApprovedElectric Utility Vehicles, Long Cargo Bed and Roof, EG6063KCXNegotiableMOQ: 1 Unit
Seats
3 - 4
Fuel Type
Electric
Battery Voltage
48V
Certification
CE
Electric golf cart with cargo box, CE approved, EG2046H
| Model | EG2046H | EG2046H02 | EG2046H04 | EG2046H05 |
| System | 48V/4KW Sepex | 48V/5.3KW Sepex | 48V/5KW AC System | 48V/5KW Sepex |
| Key Components | ||||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 5.3KW Chinese Motor | 5KW Chinese Motor | 5KW DV9 Motor |
| Controller | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes | Zapi ACE2(400A@2minutes) | Curtis 1268 (400A@2minutes |
| Performance | ||||
| Passenger capacity | 4 | 4 | 4 | 4 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >70 | >70 | >90 | >70 |
| Max. speed @12.76:1 gear ratio | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 40 | -- | -- | -- |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | 4.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 20% | 20% | 20% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | -- | -- | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 480kgs | 480kgs | 480kgs | 480kgs |
| Net weight | 650kgs | 650kgs | 658kgs | 651kgs |
| Dimensions | ||||
| Overall dimensions (mm) | 3480X1180X1850 | |||
| Dimension of rear cargo box(mm) | 770x1100x250 | |||
| Min. ground clearance (mm) | 120 | |||
| Wheelbase (mm) | 2450 | |||
| Front wheel tread (mm) | 855 | |||
| Rear wheel tread (mm) | 975 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||
| Body | PP plastic front body + PP plastic rear body | |||
| Roof | Fibreglass | |||
| Windshield | one-piece Organic glass | |||
| Windshield, hinged | ||||
| Stainless steel package | including front upright, rear upright, caddie handle | |||
| 2point seat belt | ||||
| Large Seats: | ||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||
| 2) armrest | Formed | |||
| 3) plastic seat bottom | Second row of seat | |||
| Backrest cover in wood finish | ||||
| Floor | rubber | |||
| Rear cargo box | Carbon Steel frame (powder coating)+steel fender+alluminum bottom | |||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||
| Dashboard in wood finish | ||||
| Steering wheel in wood finish | ||||
| Beverage holders | 4 cups drink holders | |||
| Glove box | ||||
| Side trim | plastic | |||
| Score card holder | on steering wheel | |||
| Towing bracket | on front of golf car | |||
| Inner rear view mirror | One piece per cart in the middle of the windshield | |||
| Side rear view mirror | Two pieces per cart | |||
| Battery watering system,48V system | without water supply tool | |||
| Battery watering system,36V system | without water supply tool | |||
| Manual Pump | water supply tool (other water supply tools are available) | |||
| Overshadowing Curtain | ||||
| Enclosure | ||||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||
| Reversing alarm | ||||
| Police Light | ||||
| 12V accessory plug | to be mounted on the dashboard | |||
| Hour meter | ||||
| Solar Panel | 48V, 185W | |||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Brake system | Mechanical brake | |||
| 4-wheel hydraulic brake + hand brake | ||||
| 4-wheel hydraulic brake, front disc brake, rear drum brake | ||||
| Accelerator | Stepless speed change | |||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||
| Rear axle | Integrated, Gear ratio 12.76:1 | |||
| Integrated, Gear ratio 10.26:1 | ||||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | |||
| 6J-10 steel wheel with cap & 205/50-10 4PR | ||||
| 8*7 steel wheel with cap & 18*8.5-8 6PR | ||||
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
