Electric Fiberglass Golf Cart Bodies With Lifting Cargo Box, CE Approved, EG2048ZT2
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG2048ZT2
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Electric Cargo Vehicle, CE ApprovedNegotiableMOQ: 1 Unit -
Park Vehicle of Electric Utility Car , CE ApprovedNegotiableMOQ: 1 Unit
-
Electric Pickup for Amusement Park With 4 Wheel , CE ApprovedNegotiableMOQ: 1 Unit
-
8 Passenger Electric Golf Carts With Rear Flip Flop Seat, EG2068KSZNegotiableMOQ: 1 Unit
-
6 Seater Utility Golf Car Made in China Golf Clubs, CE Approved, EG2048KSFNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG2048ZT2

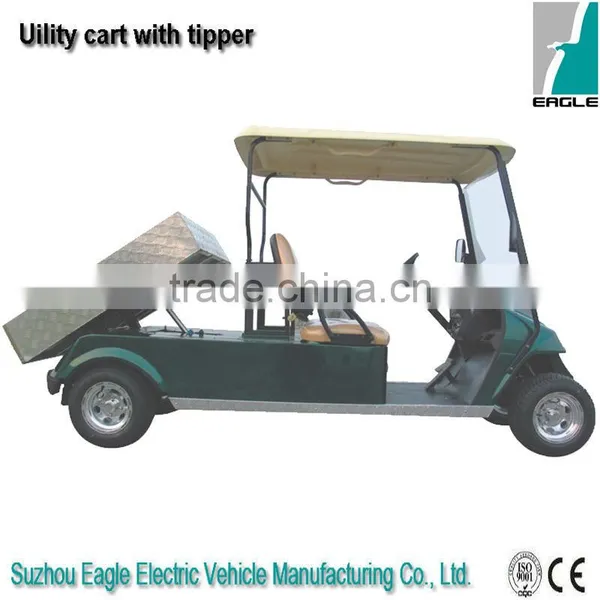

Electric fiberglass golf cart bodies with lifting cargo box, CE approved, EG2048ZT2
Product Description
| Model | EG2048ZT2 | EG2048ZT201 | EG2048ZT202 | EG2048ZT204 |
| System | 48V/4KW Sepex | 48V/5.3KW Sepex | 48V/5KW Sepex | 48V/5KW AC System |
| Key Components | ||||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 5.3KW Chinese motor | 5KW ADC DV9 Motor | 5KW Chinese motor |
| Controller | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes | Zapi ACE2 (400A@2minutes) |
| Performance | ||||
| Passenger capacity | 2 | 2 | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >80 | >80 | >80 | >90 |
| Max. speed @12.76:1 gear ratio | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | 40 | -- | -- | -- |
| Minimum turning radius (m) | 4.5 | 4.5 | 4.5 | 4.5 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 20% | 20% | 20% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | -- | -- | 15% |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 450kgs | 450kgs | 450kgs | 450kgs |
| Net weight | 580kgs | 580kgs | 580kgs | 580kgs |
| Dimensions | ||||
| Overall dimensions (mm) | 3180X1180X1890mm | |||
| Dimension of rear cargo box(mm) | 1400x1100x250 | |||
| Min. ground clearance (mm) | 120 | |||
| Wheelbase (mm) | 2450 | |||
| Front wheel tread (mm) | 855 | |||
| Rear wheel tread (mm) | 975 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with phosphate+electro-coating treatment | |||
| Body | PP plastic front body +FRP rear body | |||
| Roof | Injected plastic | |||
| Windshield | one-piece Organic glass | |||
| Windshield, hinged | ||||
| Laminated windshield | ||||
| Laminated windshield with wiper | ||||
| Stainless steel package | including front upright, rear upright, caddie handle | |||
| 2point seat belt | ||||
| Large Seats: | ||||
| 1) backrest and cushion | Rebond seat + artificial leather | |||
| 2) armrest | Formed | |||
| 3) plastic seat bottom | ||||
| Formed seat&backrest vinyl | ||||
| Backrest cover in wood finish | ||||
| Floor | rubber | |||
| Rear cargo box | aluminium box with STS bracket | |||
| Dashboard in black plastic | forward/reverse switch, battery capacity indicator, ignition key | |||
| Dashboard in wood finish | ||||
| Steering wheel in wood finish | ||||
| Beverage holders | 4 cups drink holders | |||
| Glove box | ||||
| Glove box door (include two locks) in black plastic | 2 doors per set | |||
| Glove box door (include two locks) in wood finish (inside and outside) | 2 doors per set | |||
| side trim | Aluminum | |||
| Stainless steel | ||||
| Score card holder | on steering wheel | |||
| Towing bracket | on front of golf car | |||
| Inner rear view mirror | One piece per cart in the middle of the windshield | |||
| Side rear view mirror | Two pieces per cart | |||
| Battery watering system,48V system | without water supply tool | |||
| Battery watering system,36V system | without water supply tool | |||
| Manual Pump | water supply tool (other water supply tools are available) | |||
| Enclosure | ||||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn. | |||
| Reversing alarm | ||||
| Meter(only available for 48V system) | speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator | |||
| 12V accessory plug | to be mounted on the dashboard | |||
| Hour meter | ||||
| Solar Panel | 48V, 185W | |||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A | |||
| On-board charger, input 85V~265V, 45~65Hz, output 36V/21A, 48V/18A | ||||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Brake system | Mechanical brake | |||
| 4-wheel hydraulic brake + hand brake | ||||
| 4-wheel hydraulic brake, front disc brake, rear drum brake | ||||
| Accelerator | Stepless speed change | |||
| Suspension system | Front and rear plate spring + cylinder hydraulic shock absorber | |||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||
| Rear axle | Integrated, Gear ratio 12.76:1 | |||
| Integrated, Gear ratio 10.26:1 | ||||
| Wheel & Tyre | 10x6 Alumimum wheel & 205/50-10 4PR | |||
| 6J-10 steel wheel with cap & 205/50-10 4PR | ||||
| 8*7 steel wheel with cap & 18*8.5-8 6PR | ||||
Color
Packaging & Shipping
Company Information
Certifications
After-Sales Service
All street legal golf cart sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
