Home > Transportation > Trailer > Truck Trailer > Electric Pickup for Amusement Park With 4 Wheel , CE Approved

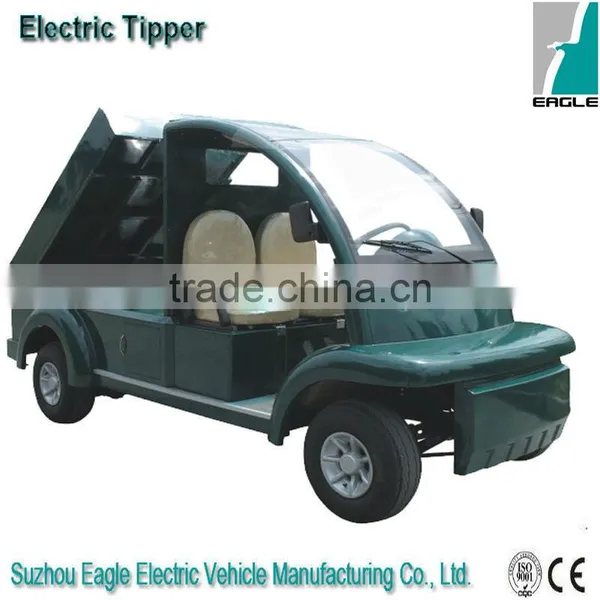

Electric Pickup for Amusement Park With 4 Wheel , CE Approved
Negotiable
MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG6062T
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
8 Passenger Electric Golf Carts With Rear Flip Flop Seat, EG2068KSZNegotiableMOQ: 1 Unit -
6 Seater Utility Golf Car Made in China Golf Clubs, CE Approved, EG2048KSFNegotiableMOQ: 1 Unit
-
China 4 Wheel Drive Electric Golf Cart With Rear SeatsNegotiableMOQ: 1 Unit
-
Electric Golf Buggy With Rear Folding SeatsNegotiableMOQ: 1 Unit
-
Mini Electric Golf Cart for Sale With Rear SeatsNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
Eagle
Model Number
EG6062T
Electric pickup for amusement park with 4 wheel , CE approved
Product Description
| Model | EG6062T | EG6062T01 | EG6062T02 | |
| Voltage (V) | 48V | 48V | 48V | |
| Battery | T105X8PCS | T105X8PCS | T105X8PCS | |
| Motor | 4KW | 4KW | DV2 | |
| Controller | Curtis 1204 | Curtis 1268 | Curtis 1244 | |
| DESCRPTIONS: | ||||
| General Specifications: | ||||
| Passenger capacity | 2 | 2 | 2 | |
| Range (loaded) based on flat road at a speed of 20km/h (km) | 70 | 70 | 70 | |
| Max. speed (km/h) | 30 | 32 | 40 | |
| Minimum turning radius (m) | 4 | 4 | 4 | |
| Max. climbing ability (loaded) | 20% | 20% | 25% | |
| Max. movement after brake | ≤4m | ≤4m | ≤4m | |
| Overall dimensions | 3750X1400X1810mm | 3750X1400X1810mm | 3750X1400X1810mm | |
| Rear dumper cargo box demensions(L*W*H)(mm) | 1720X1070X250mm | 1720X1070X250mm | 1720X1070X250mm | |
| Motor power of hydraulic cylinder | DC24V, 0.8KW | DC24V, 0.8KW | DC24V, 0.8KW | |
| Max. dumping angle | 45' | 45' | 45' | |
| Normal driving slope | 12% | 12% | 12% | |
| Dumping angle switch | three position | three position | three position | |
| Max. loading weight | 450kgs | 450kgs | 450kgs | |
| Net weight | 800kgs | 800kgs | 800kgs | |
| Qty/40' (Assembled) | 3 | 3 | 3 | |
| Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| DESCRPTIONS: | REMARKS | |||
| Body | Steel framework + fiber glass body | S | ||
| Roof | Aluminum frame + fiber glass | S | ||
| Windshield | Toughened glass | S | ||
| Seats: | ||||
| 1) backrest and cushion | Sponge + artificial leather | S | ||
| 2) armrest | Soft expanded plastic | S | ||
| Seat belt(3-point) | 2pcs per cart | O | ||
| Hand holder for front passenger | 1pc hand holder fixed under the roof | S | ||
| Hand holder for rear passenger | 2pcs, fixed on front backrest | S | ||
| Storage net | 1pc each on backrest | S | ||
| Inner rear view mirror | 1pc | O | ||
| Side rear view mirror | 2pcs per cart | S | ||
| Floor | Bamboo + artificial leather | S | ||
| Dashboard | forward/reverse switch, headlight indicator, turn signal indicator, ignition key, battery state indicator, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items, Radio and tape player | S | ||
| Radio and tape player | S | |||
| If with CD player | replacing original Radio & Tape player | O | ||
| Microphone | with wire | O | ||
| If with speedometer | S | |||
| Speaker for radio and tape player | 2pcs | S | ||
| Lighting system | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights | S | ||
| Horn and reverse alarm | S | |||
| DC/DC Convertor | Convertor 48V-12V | S | ||
| Training gear | gear and rack | S | ||
| Brake system | Rear and front drum hydraulic brake system | S | ||
| Accelerator | Stepless speed change | S | ||
| Front end and front suspension | Independent suspension | S | ||
| Rear end | with primary speed reducer and speed-change gear box | S | ||
| Rear suspension | Steel plate suspension | S | ||
| Driving mode | rear wheel driving | S | ||
| Tyre and steel wheel and wheel cap | 20.5x8.0-10 tire, 6J-10 steel wheel, wheel cap | S | ||
| Enclosure | / | O | ||
| ACCESSORIES: | ||||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | S | ||
| Imported on-body charger | O | |||
| 1pc density checker for battery | to be provided according to 50% of the order quantity | S | ||
Packaging & Shipping
Color
Company Information
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
