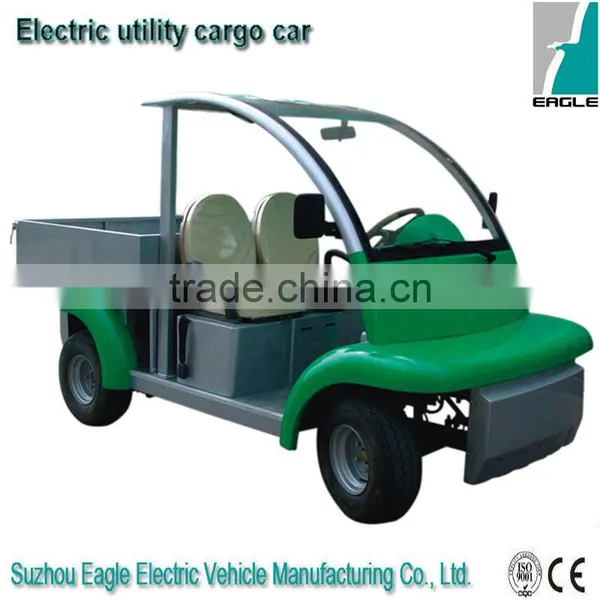

Electric cargo vehicle, CE approved
Product Description
| Model | EG6043KDX | EG6043KDX01 | EG6043KDX02 | EG6043KDX06 |
| System | 48V/4KW Series | 48V/4KW Sepex | 48V/5KW Sepex | 48V/5KW AC System |
| Key Components | ||||
| Battery | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) | 8xT105(185Ah@5hr rate) |
| Motor | 3.8KW Chinese motor | 3.8KW Chinese motor | DV9 ADC motor | 5KW Chinese Motor |
| Controller | Curtis 1204 (275A@2minutes) | Curtis 1268 (400A@2minutes) | Curtis 1268 (400A@2minutes) | Zapi ACE2(400A@2minute) |
| Performance | ||||
| Passenger capacity | 2 | 2 | 2 | 2 |
| Range (loaded) based on flat road at a speed of 20km/h (km)* | >70 | >70 | >70 | >90 |
| Max. speed @12.76:1 gear ratio | 32 | 32 | 32 | 32 |
| Max. speed @10.26:1 gear ratio | / | 40 | 32 | -- |
| Minimum turning radius (m) | 4 | 4 | 4 | 4 |
| Max. climbing ability (loaded) @ 12.76:1 gear ratio | 20% | 20% | 25% | 20% |
| Max. climbing ability (loaded) @ 10.26:1 gear ratio | 15% | 15% | 18% | -- |
| Max. movement after brake at speed of 20km/h | ≤4m | ≤4m | ≤4m | ≤4m |
| Max. loading weight | 480kgs | 480kgs | 480kgs | 480kgs |
| Net weight | N/A | N/A | N/A | N/A |
| Dimensions | ||||
| Overall dimensions (mm) | 3050x1400x1800 | |||
| Rear cargo bed dimension(mm) | 1200x1100x250 | |||
| Min. ground clearance (mm) | 140 | |||
| Wheelbase (mm) | 2040 | |||
| Front wheel tread (mm) | 1143 | |||
| Rear wheel tread (mm) | 1143 | |||
| Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration) | ||||
| Body and Frame | ||||
| Frame | Welded steel framework with sand blasting+paint treatment | |||
| Body | Fibreglass + Plastic | |||
| Roof | Fibreglass | |||
| Windshield | Laminated glass | |||
| 2 point seat belt | 2pcs | |||
| Large Seats: | ||||
| 1) backrest and cushion | Sponge + artificial leather | |||
| 2) armrest | Soft expanded plastic | |||
| Floor | Bamboo + artificial leather | |||
| Inner rear view mirror | One piece per cart in the middle of the windshield | |||
| Side rear view mirror | Two pieces per cart | |||
| Battery watering system,48V system | without water supply tool | |||
| Manual Pump | water supply tool (other water supply tools are available) | |||
| Overshadowing curtain | ||||
| Rain cover | PVC | |||
| Electric system | ||||
| Lighting system and horn | 2 headlights, 2 front turn signals, 2 rear turn signals and 2 rear brake lights, with DC-DC converter (converting from 48V to 12V), horn. | |||
| Dashboard | forward/reverse switch, headlight indicator, turn signal indicator, ignition key, voltameter, ammeter, emergency switch; turn signal switch, headlight switch, windscreen wiper switch, horn button; Storage for miscellaneous items | |||
| Audio System | Radio and MP3 receiver | |||
| CD player to replace MP3 receiver | ||||
| Microphone | Wired | |||
| Speaker | 2pcs | |||
| Reversing alarm | ||||
| Switch assembly | Lights switch, horn switch, wiper switch | |||
| Wiper | 12V | |||
| Charger | China origin, input 110V-240V~50Hz-60Hz, output 48V, 25A | |||
| Steering and Suspension | ||||
| Steering system | Single-stage rack and pinion steering system, automatic rocker compensating function | |||
| Brake system | Four wheel hydraulic drum brake+foot parking brake | |||
| Accelerator | Stepless speed change | |||
| Front suspension | Independent suspension, helix spring + shock absorber | |||
| Rear suspension | rear plate spring + shock absorber | |||
| Driving mode | Rear axle two stage deceleration, motor direct driving | |||
| Rear axle | Integrated, Gear ratio 12.76:1 | |||
| Integrated, Gear ratio 10.26:1 | ||||
| Wheel & Tyre | 12X7 Aluminum Wheel,225/55B12 6PR tyre | |||
Color
Packaging & Shipping
| Container loading qty | Disassembled | Assembled |
| Qty/20' | 2units | 1unit |
| Qty/40' | 6units | 3units |
| Qty/40'HQ | 6units | 3units |
Company Information
Certifications
After-Sales Service
All electric golf carts sold by us are quality guaranteed.
We provide 13 months warranty to our electric vehicles from the shipping date.
