Industrial Electric Carts EG6030H

Industrial Electric Carts EG6030H thumbnail-1
Industrial Electric Carts EG6030H photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description

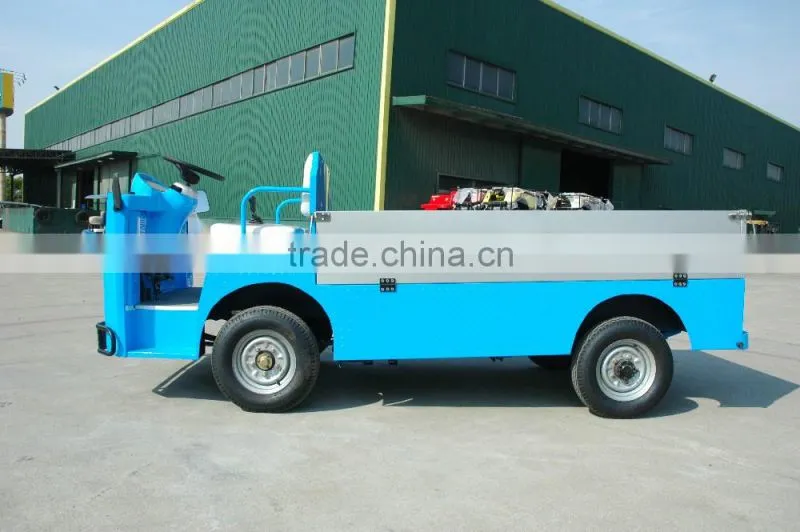

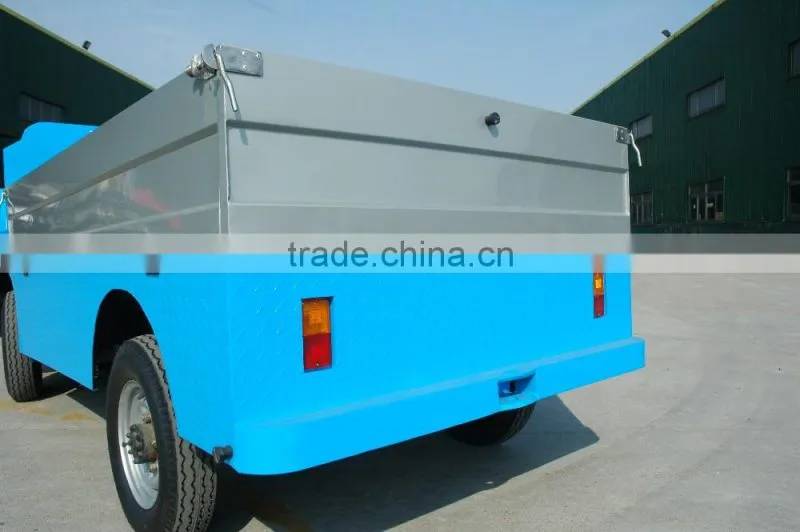

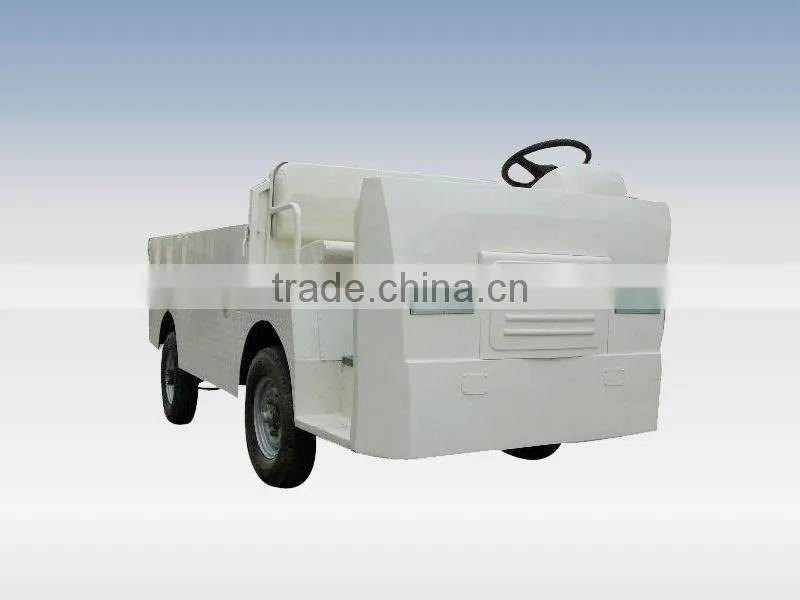

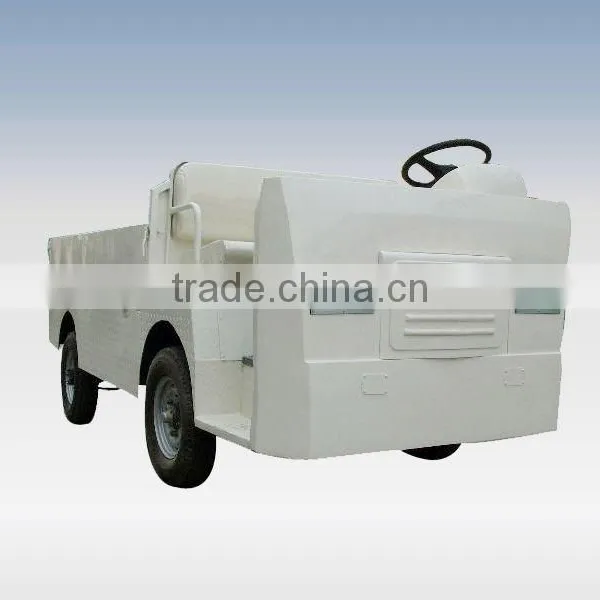

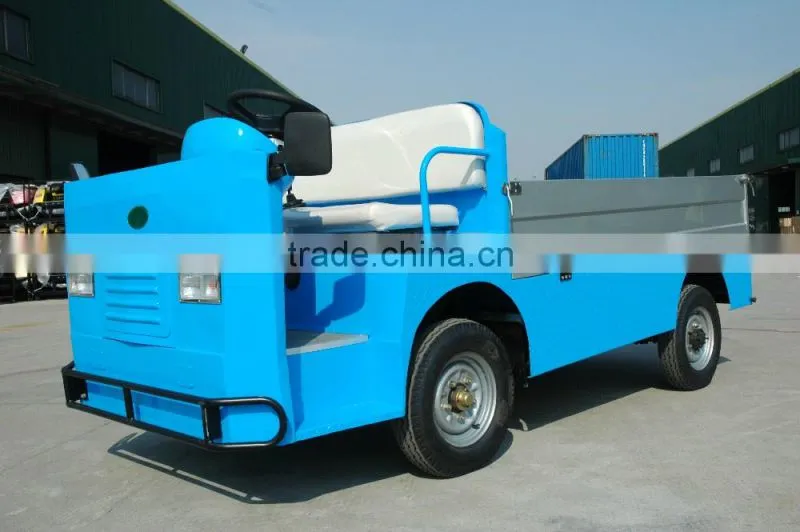

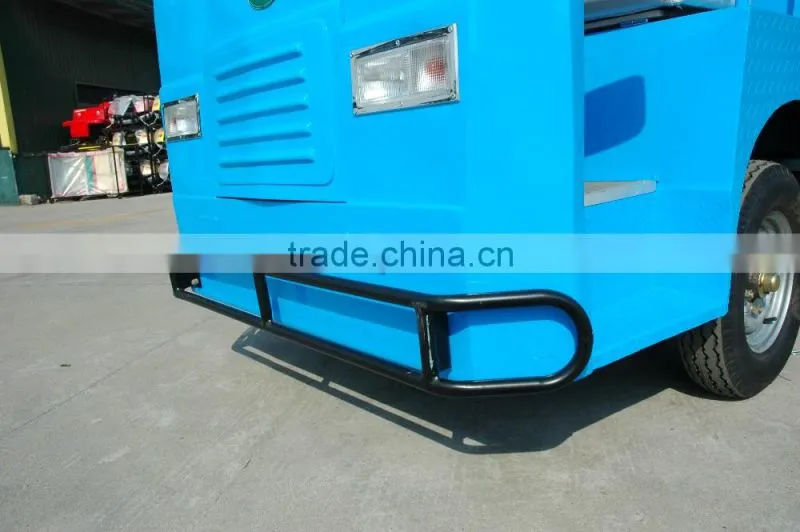

industrial electric carts----------EG6030H


Model
EG6030H
System
48V/5KW Sepex
Battery
8xT105(185Ah@5hr rate)
Motor
3.8KW Chinese motor
Controller
Curtis 1205 (275A@2minutes)
Dimensions
Overall dimensions (mm)
3475X1390X1300
Min. ground clearance (mm)
2300X1390X280
Wheelbase (mm)
170
Front wheel tread (mm)
1920
Rear wheel tread (mm)
1240
Electric system
Lighting system and horn
Voltameter, ammeter, speedometer, turn signal indicator, headlight indicator, emergency switch, ignition key; Headlight switch, turn signal switch, horn button;
Charger
China origin, input 110V-240V~50Hz-60Hz, output 48V/22A Off Board Charger
Steering and Suspension
Steering system
Recirculating ball-type steering gear
Brake system
4-wheel hydraulic brake + hand brake
Transmission system
Clutch, 4F+1R gear box, transmission shaft
Front suspension system
non-independent suspension, cylinder hydraulic vibration absorber and leaf spring
Rear suspension system
integrated rear end, steel plate spring suspension, cylinder hydraulic vibration absorber
Wheel & Tyre
12*3.00D steel rim, 5.00-12 tyre
Body and Frame
Frame
Welded steel framework with sand blasting+paint treatment
Body
Steel plate
2point seat belt
Large Seats:
1) backrest and cushion
Rebond seat + artificial leather
2) armrest
Steel
Floor
Bamboo board+ plastic
Cover for rear bed
plywood+ galvanized steel plate
Beverage holders
1 cup drink holders
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>50
Max. speed
38
Minimum turning radius (m)
4.3
Max. climbing ability (loaded)
20%
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
1500kgs
Net weight
980kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Assembled
20'ft GP
1units
40'ft GP
2units
40'HQ
2units
