Electric Golf Car, Battery Powered, Chinese 2 Person Electric Golf Cart , EG202AK

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
Electric Golf Car, Battery Powered, Chinese 2 Person Electric Golf Cart , EG202AK thumbnail-1
Electric Golf Car, Battery Powered, Chinese 2 Person Electric Golf Cart , EG202AK thumbnail-2
Electric Golf Car, Battery Powered, Chinese 2 Person Electric Golf Cart , EG202AK photo-1
Electric Golf Car, Battery Powered, Chinese 2 Person Electric Golf Cart , EG202AK photo-2
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Seats:
1 - 2
Fuel Type:
Electric
Battery Voltage:
48V
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Seats 1 - 2
Fuel Type Electric
Battery Voltage 48V
Certification CE
Product Description


Electric Golf Car, Battery Powered, Chinese 2 person electric golf cart ----EG202Ak


Model
EG202Ak
System
48V/3KW AC
Battery
6PCSxT875(145Ah@5hr rate)
Motor
3KW AC motor
Controller
Zapi ACE0(280A@2minutes)
Dimensions
Overall dimensions (mm)
2410x1180x1800
Min. ground clearance (mm)
120
Wheelbase (mm)
1680
Front wheel tread (mm)
1010
Rear wheel tread (mm)
1010
Electric system
Lighting system and horn
2 headlights (with H/L beam), 2 front turn signals, Front LED position light, 2 LED taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn.
Charger
China origin, onboard,input 110V-240V~50Hz-60Hz, output 36V/25A,48V/22A
Steering and Suspension
Steering system
Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system
Mechanical brake
Accelerator
accelerate,brake&park)
Suspension system
Front Independent Suspension and rear taper leaf spring + cylinder hydraulic shock absorber
Driving mode
Rear axle two stage deceleration, motor direct driving
Rear axle
Integrated, Gear ratio 12.76:1
Wheel & Tyre
10x6 Alumimum wheel & 205/50-10 4PR
Body and Frame
Frame
Aluminum alloy beam
Body
PP plastic front body + PP plastic rear body
Roof
Injected plastic
Windshield
one-piece Organic glass
Large Seats:
1) backrest and cushion
Foamed cushion + formed vinyl(artificial leather )
2) armrest
Plastic, black texture finish
3) plastic seat bottom
Performance
Passenger capacity
2
Range (loaded) based on flat road at a speed of 20km/h (km)＊
>70
Max. speed @12.76:1 gear ratio
32
Minimum turning radius (m)
3
Max. climbing ability (loaded) @ 12.76:1 gear ratio
25%
Max. climbing ability (loaded) @ 10.26:1 gear ratio
--
Max. movement after brake at speed of 20km/h
≤4m
Max. loading weight
270kgs
Net weight
460kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

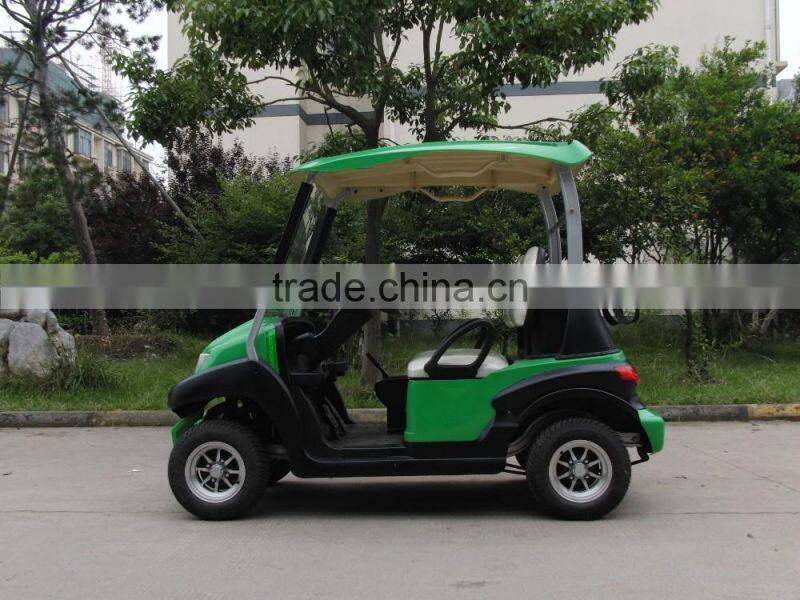

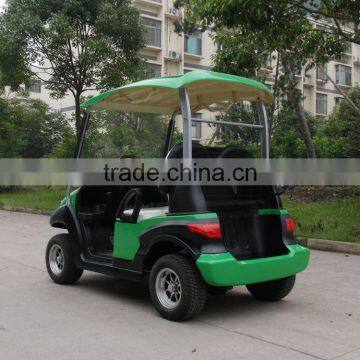

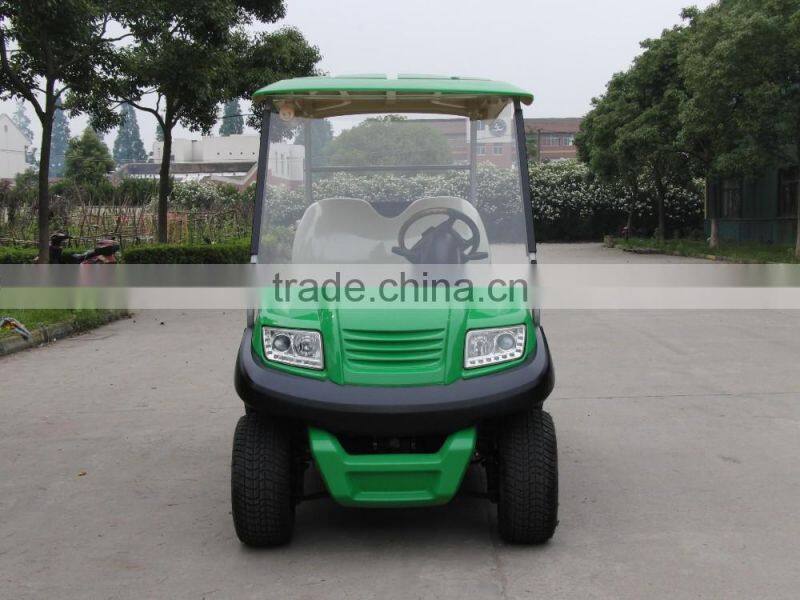

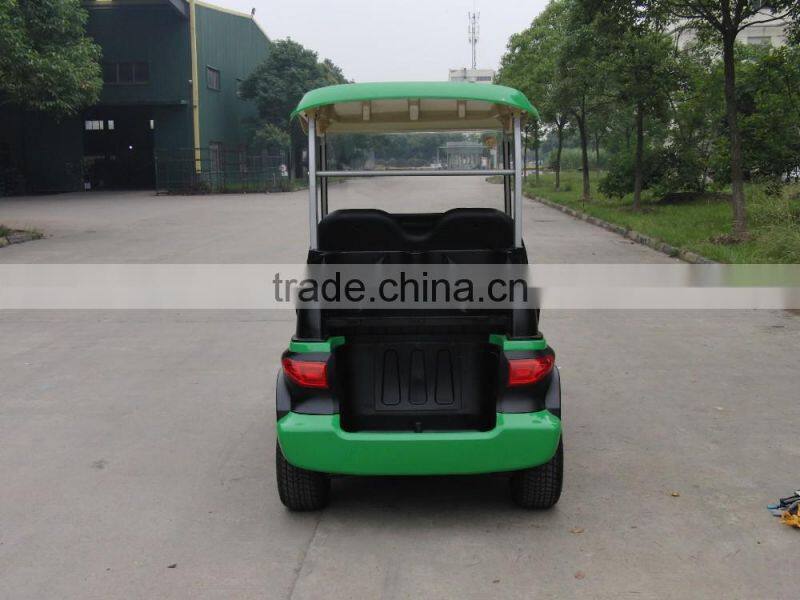

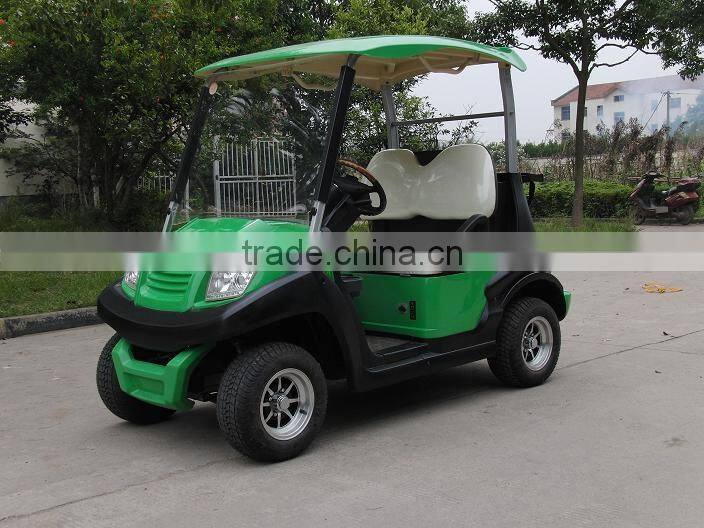

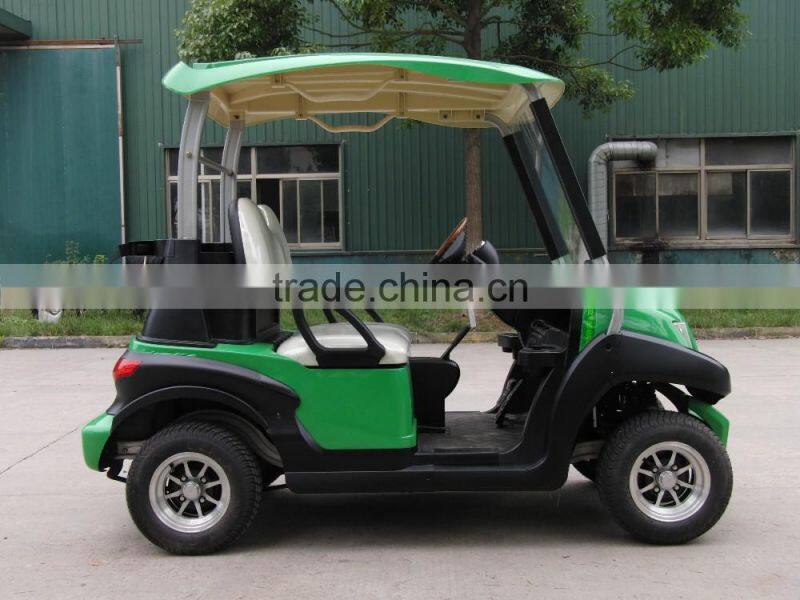

Detailed Images
Packing & Delivery
Our most professional packaging
Transport of large trucks to the seaport
And international transport cooperation
Container loading qty
Disassembled
20'ft GP
8units
40'ft GP
16units
40'HQ
24units
Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

 1) Customization is available

2)  13 months warranty from shipping date

3)  FOC spare parts provided

Certifications
