Electric Golf Car, Battery Powered, chinese golf carts handicapped 2 person electric golf cart , EG202AK

Name: Electric Golf Car, Battery Powered, chinese golf carts handicapped 2 person electric golf cart , EG202AK
Price: Negotiable

FOB Price

Negotiable / Unit

1 Unit(Min.Order)

Supply Ability 2000 Unit / Units per Month

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Seats:	1 - 2	Fuel Type:	Electric	Battery Voltage:	48V
Certification:	CE

Product Description

Electric Golf Car, Battery Powered, Chinese 2 person electric golf cart _----EG202Ak

Model	EG202Ak
System	48V/3KW AC
Battery	6PCSxT875(145Ah@5hr rate)
Motor	3KW AC motor
Controller	Zapi ACE0(280A@2minutes)

Dimensions
Overall dimensions (mm)	2410x1180x1800
Min. ground clearance (mm)	120
Wheelbase (mm)	1680
Front wheel tread (mm)	1010
Rear wheel tread (mm)	1010

Electric system
Lighting system and horn	2 headlights (with H/L beam), 2 front turn signals, Front LED position light, 2 LED taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V/36V to 12V), horn.
Charger	China origin, onboard,input 110V-240V~50Hz-60Hz, output 36V/25A,48V/22A

Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
Accelerator	accelerate,brake&park)
Suspension system	Front Independent Suspension and rear taper leaf spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR

Body and Frame
Frame	Aluminum alloy beam
Body	PP plastic front body + PP plastic rear body
Roof	Injected plastic
Windshield	one-piece Organic glass
Large Seats:
1) backrest and cushion	Foamed cushion + formed vinyl(artificial leather )
2) armrest	Plastic, black texture finish
3) plastic seat bottom

Performance
Passenger capacity	2
Range (loaded) based on flat road at a speed of 20km/h (km)＊	>70
Max. speed @12.76:1 gear ratio	32
Minimum turning radius (m)	3
Max. climbing ability (loaded) @ 12.76:1 gear ratio	25%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	--
Max. movement after brake at speed of 20km/h	≤4m
Max. loading weight	270kgs
Net weight	460kgs

Specifications

* 1) based on the test conditions: 20km/h speed, flat and straight concrete road, wind speed less than 5m/s, temperature of 25 Celsius degree;

2) Range will vary depending on temperature, grade, payload and driving style.

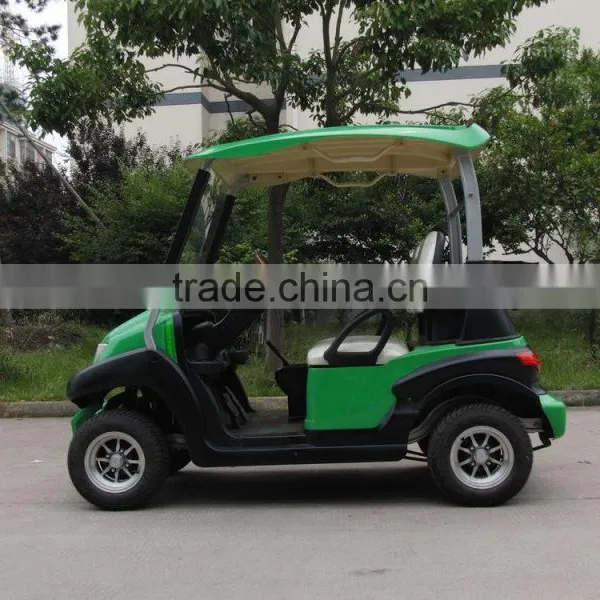

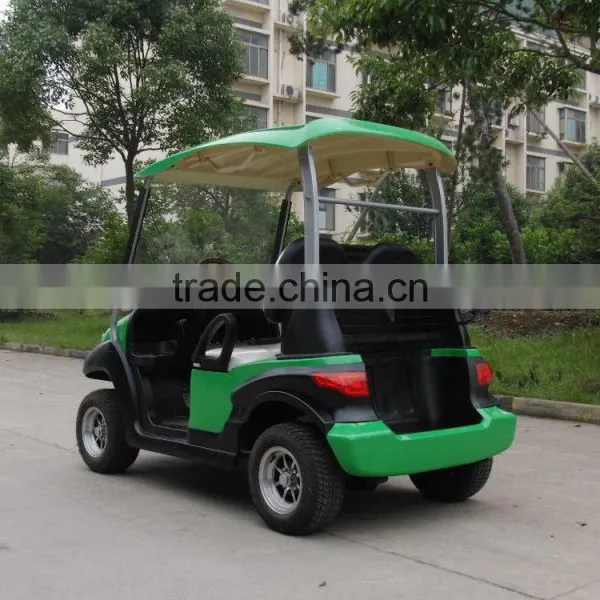

Detailed Images

Packing & Delivery

Our most professional packaging

Transport of large trucks to the seaport

And international transport cooperation

Container loading qty	Disassembled
20'ft GP	8units
40'ft GP	16units
40'HQ	24units

Other Products

EG2028HR

.http://www.china.cn/product-detail/Street-legal-electric-for-europe-market_60477553624.html

EG2048H

http://www.china.cn/product-detail/4-4-golf-cart-with-cargo_60151819172.html

Our Company

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd. was founded 1999, and it's a leading manufacturer specialized in designing and manufacturing 4-wheel electric vehicles, includes: electric golf cart, electric utility car, electric personal carrier, electric shuttle bus, electric industrial car, various customized electric vehicles based on standard ones, etc.. It has a workshop area of 20,000 square meters with 2 assembly lines inside. Its daily production capacity is 80 units per day; this can be adjusted with the order volume increasing. It has around 300 workers including 50 engineers in R&D department and 15 engineers in QC department.

Our Service

1) Customization is available

2) 13 months warranty from shipping date

3) FOC spare parts provided

Certifications

Contact Us

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.: Contact nameKevin Song; Phone0086-512-65960151; AddressNo.99, Yin Xin Road Suzhou,Jiangsu
