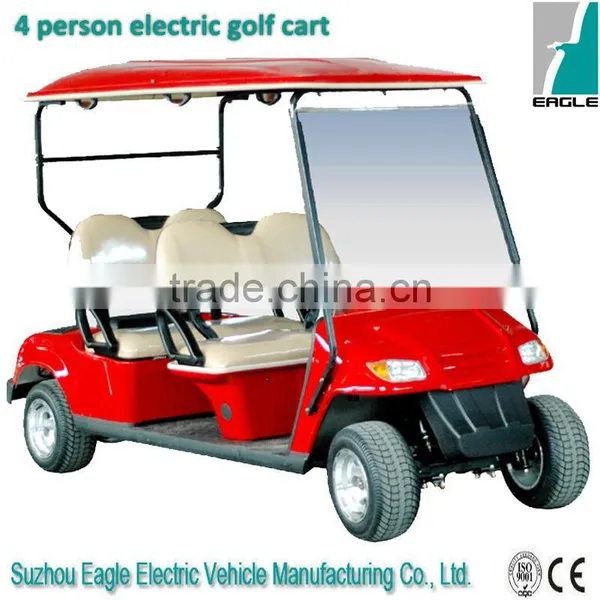

CE Approved 4 Passenger Electric Golf Cars

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.
CE Approved 4 Passenger Electric Golf Cars thumbnail-1
CE Approved 4 Passenger Electric Golf Cars photo-1
Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
Eagle
Model Number:
EG2049K
Contact Supplier Request Quote Chat Now
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Jiangsu, China
Brand Name Eagle
Model Number EG2049K

CE approved 4 passenger Electric Golf cars

Product Description



ModelEG2049KEG2049K01EG2049K02EG2049K03EG2049K05EG2049K07EG2049K08EG2049K09
System48V/3KW Sepex48V/4KW Sepex48V/4KW Sepex36V/3KW Sepex48V/5.3KW Sepex48V/3KW AC System48V/5KW AC System48V/5KW Sepex
Key Components
Battery6PCSxT875(145Ah@5hr rate)6PCSxT875(145Ah@5hr rate)8PCSxT105(185Ah@5hr rate)6PCSxT105(185Ah@5hr rate)8xT105(185Ah@5hr rate)8xT105(185Ah@5hr rate)8xT105(185Ah@5hr rate)8xT105(185Ah@5hr rate)
Motor3KW ADC motor 3.8KW Chinese motor3.8KW Chinese motor3KW ADC motor5.3KW Chinese Motor3KW Germany Motor5KW Chinese Motor5KW ADC DV9 Motor
ControllerCurtis 1266 (275A@2minutesCurtis 1268 (400A@2minutes)Curtis 1268 (400A@2minutes)Curtis 1243 (300A@2minutes)Curtis 1268 (400A@2minutesZapi ACE0(280A@2minutes)Zapi ACE2(400A@2minutes)Curtis 1268 (400A@2minutes
Performance
Passenger capacity44444444
Range (loaded) based on flat road at a speed of 20km/h (km)*>55>55>80>55>80>100>100>80
Max. speed @12.76:1 gear ratio2532322132323232
Max. speed @10.26:1 gear ratio324040 -- -- -- -- --
Minimum turning radius (m)4.54.54.54.54.54.54.54.5
Max. climbing ability (loaded)   @ 12.76:1 gear ratio25%25%25%20%25%25%25%25%
Max. climbing ability (loaded)   @ 10.26:1 gear ratio15%20%20% -- -- -- -- --
Max. movement after brake at speed of 20km/h≤4m≤4m≤4m≤4m≤4m≤4m≤4m≤4m
Max. loading weight370kgs370kgs370kgs370kgs370kgs370kgs370kgs370kgs
Net weight542kgs544kgs590kgs536kgs591kgs594kgs602kgs592kgs
Dimensions
Overall dimensions (mm)3110X1180X1890
Min. ground clearance (mm)120
Wheelbase (mm)2450
Front wheel tread (mm)855
Rear wheel tread (mm)975
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
FrameWelded steel framework with phosphate+electro-coating treatment
BodyPP plastic front body + PP plastic rear body
RoofFibreglass
Plastic
Windshieldone-piece Organic glass
Windshield, hinged
Laminated windshield
Laminated windshield with wiper
Stainless steel packageincluding front upright, rear upright, sweater basket and bracket
Aluminum roof supportincluding front upright, rear upright,, caddie handle
2point seat belt
Large Seats:
     1) backrest and cushionRebond seat + artificial leather
     2) armrestFormed
     3) plastic seat bottomLast row of seat
Formed seat&backrest vinylexclude the front seat cushion
Backrest cover in wood finish
Floorrubber
Center storage basketLarge volume
Golf bag holder
Dashboard in black plasticforward/reverse switch, battery capacity indicator, ignition key
Dashboard in wood finish
Steering wheel in wood finish
Beverage holders 4 cups drink holders
Glove box
Glove box door (include two locks) in black plastic2 doors per set
Glove box door (include two locks) in wood finish (inside and outside)2 doors per set
Side trim Plastic
Score card holderon steering wheel
Towing bracket on front of golf car
Inner rear view mirror1 piece per cart in the middle of the windshield
Side rear view mirrorTwo pieces per cart
Battery watering system,48V systemwithout water supply tool
Battery watering system,36V systemwithout water supply tool
Manual Pumpwater supply tool (other water supply tools are available)
Overshadowing Curtain
Enclosure
Electric system
Lighting system and horn2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Reversing alarm
Meter (only available for 48V system)speed, mileage, headlight indicator, emergency light indicator, turn signal indicator, reverse indicator
Police Light
12V accessory plugto be mounted on the dashboard
Hour meter
Solar Panel48V, 185W
Cooler12V DC, 6L
ChargerChina origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering systemSingle-stage rack and pinion steering system, automatic rocker compensating function
Right hand drive system
Brake systemMechanical brake
4-wheel hydraulic brake + hand brake
4-wheel hydraulic brake, front disc brake, rear drum brake
AcceleratorStepless speed change
Suspension systemFront and rear plate spring + cylinder hydraulic shock absorber
Driving modeRear axle two stage deceleration, motor direct driving
Rear axleIntegrated, Gear ratio 12.76:1
Integrated, Gear ratio 10.26:1
Wheel & Tyre10x6 Alumimum wheel & 205/50-10 4PR
6J-10 steel wheel with cap & 205/50-10 4PR
8*7 steel wheel with cap & 18*8.5-8 6PR



Color

 CE approved 4 passenger Electric Golf cars



Packaging & Shipping

 CE approved 4 passenger Electric Golf cars

CE approved 4 passenger Electric Golf cars



Company Information

 CE approved 4 passenger Electric Golf cars



Certifications

 CE approved 4 passenger Electric Golf cars



After-Sales Service



All electric golf carts sold by us are quality guaranteed.

We provide 13 months warranty to our electric vehicles from the shipping date.
