Home > Sporting Goods & Recreation > Golf Cart > 2 Seats Golf Carts, Fashion Model, CE Approved,EG2026K

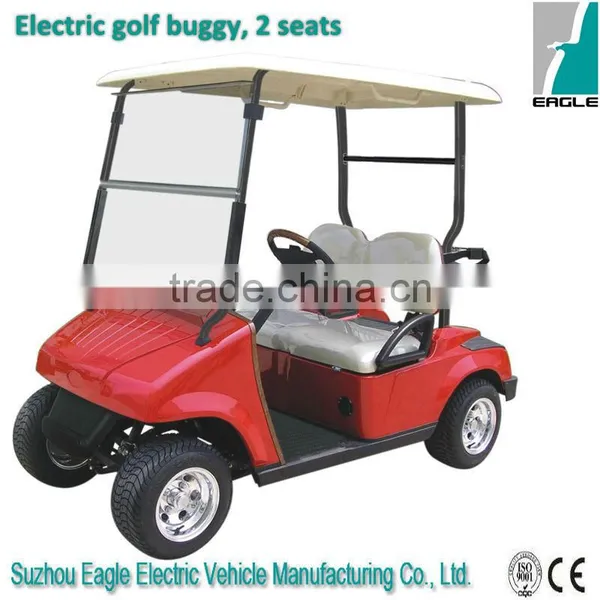

2 Seats Golf Carts, Fashion Model, CE Approved,EG2026K

Suzhou Eagle Electric Vehicle Manufacturing Co., Ltd.

2 Seats Golf Carts, Fashion Model, CE Approved,EG2026K photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Seats:

1 - 2

Fuel Type:

Electric

Battery Voltage:

36V

Contact Supplier Request Quote Chat Now

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Seats 1 - 2

Fuel Type Electric

Battery Voltage 36V

Certification CE

2 seats golf carts, fashion model, CE approved,EG2026K

Model	EG2026K	EG2026K01	EG2026K02	EG2026K03	EG2026K05	EG2026K07	EG2026K08	EG2026K09
System	36V/3KW Sepex	48V/3KW Sepex	48V/4KW Sepex	48V/4KW Sepex	48V/5.3KW Sepex	48V/3KW AC System	48V/5KW AC System	48V/5KW Sepex
Key Components
Battery	6PCSxT105(185Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	6PCSxT875(145Ah@5hr rate)	8PCSxT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)	8xT105(185Ah@5hr rate)
Motor	3KW ADC motor	3KW ADC motor	3.8KW Chinese motor	3.8KW Chinese motor	5.3KW Chinese Motor	3KW German Motor	5KW Chinese Motor	5KW DV9 Motor
Controller	Curtis 1243 (300A@2minutes)	Curtis 1266 (275A@2minutes	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes)	Curtis 1268 (400A@2minutes	Zapi ACE0 (280A@2minutes)	Zapi ACE2 (400A@2minutes)	Curtis 1268 (400A@2minutes)
Performance
Passenger capacity	2	2	2	2	2	2	2	2
Range (loaded) based on flat road at a speed of 20km/h (km)^*	>60	>60	>60	>80	>80	>105	>105	>80
Max. speed @12.76:1 gear ratio	21	25	32	32	32	32	32	32
Max. speed @10.26:1 gear ratio	25	40	40	40	--	--	--	--
Minimum turning radius (m)	3.5	3.5	3.5	3.5	3.5	3.5	3.5	3.5
Max. climbing ability (loaded) @ 12.76:1 gear ratio	20%	25%	25%	25%	25%	25%	25%	25%
Max. climbing ability (loaded) @ 10.26:1 gear ratio	15%	20%	20%	20%	--	--	--	--
Max. movement after brake at speed of 20km/h	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m	≤4m
Max. loading weight	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs	150kgs
Net weight	478kgs	484kgs	486kgs	536kgs	536kgs	545kgs	545kgs	535kgs
Dimensions
Overall dimensions (mm)	2350X1180X1750
Min. ground clearance (mm)	120
Wheelbase (mm)	1700
Front wheel tread (mm)	855
Rear wheel tread (mm)	975
Detailed Configurations: ("S" stands for Standard configuration and "O" stands for Optional configuration)
Body and Frame
Frame	Welded steel framework with phosphate+electro-coating treatment
Body	PP plastic front body + PP plastic rear body
Roof	injected plastic
Windshield	one-piece Organic glass
Windshield	Windshield, hinged
Stainless steel package	including front upright, rear upright, sweater basket and bracket
2point seat belt
Large Seats:
1) backrest and cushion	Rebond seat + artificial leather
2) armrest	Formed
3) plastic seat bottom
Backrest cover in wood finish
Floor	rubber
Center storage basket	Large volume
Golf bag holder
Dashboard in black plastic	forward/reverse switch, battery capacity indicator, ignition key
Dashboard in wood finish
Steering wheel in wood finish
Beverage holders	4 cups drink holders
Glove box
Side trim	plastic
Score card holder	on steering wheel
Towing bracket	on front of golf car
Inner rear view mirror	1 piece per cart in the middle of the windshield
Side rear view mirror	Two pieces per cart
Battery watering system,48V system	without water supply tool
Battery watering system,36V system	without water supply tool
Manual Pump	water supply tool (other water supply tools are available)
Enclosure
Electric system
Lighting system and horn	2 headlights, 2 front turn signals, 2 taillights( each combined 1 brake light with 1 turn signal), with DC-DC converter (converting from 48V to 12V), horn.
Reversing alarm
Police Light
12V accessory plug	to be mounted on the dashboard
Hour meter
Solar Panel	48V, 185W
Cooler	12V DC, 6L
Charger	China origin, input 110V-240V~50Hz-60Hz, output 36V/48V, 25A
Steering and Suspension
Steering system	Single-stage rack and pinion steering system, automatic rocker compensating function
Brake system	Mechanical brake
	4-wheel hydraulic brake + hand brake
	4-wheel hydraulic brake, front disc brake, rear drum brake
Accelerator	Stepless speed change
Suspension system	Front and rear plate spring + cylinder hydraulic shock absorber
Driving mode	Rear axle two stage deceleration, motor direct driving
Rear axle	Integrated, Gear ratio 12.76:1
Rear axle	Integrated, Gear ratio 10.26:1
Wheel & Tyre	10x6 Alumimum wheel & 205/50-10 4PR
	6J-10 steel wheel with cap & 205/50-10 4PR
	87 steel wheel with cap & 188.5-8 4PR
