one unit moq lowest price hotsell PET bottle blowing machine by railway
blow molding machine
1.full automatic: This blow molding machine realizes PET bottles' automatic production.
for juice drinks filling China original pay bottle blower plane design
2.big bottle (0.1~6L) available: With this machine, you have more varieties in bottle shape and use.
Such as 5L oil, water, etc.
3.famous brand name componenents: We adopts high-standard international famous brand name components in building the high reliable machine. FESTO (Germany) or SMC (Japan) on pneumatic components, LG (South Korea) on electric components, such as PLC, operating system, OMRON (Japan) on relays.
4.Low investment: With price under USD30,000/set FOB Shanghai, this small automatic blow molding machine has been proved to be perfect choice for small scale factories.
Machine Specifications
General Information | TNN-A2 | TNN-A4 | TNN-A6 |
Clamping Force | 370KN | 370KN | 370KN |
Clamping Stroke | 125MM | 125MM | 125MM |
Max. Stretching Stroke | 370MM | 370MM | 370MM |
Bottom Moving Stroke | 60MM | 60MM | 60MM |
Number of Cavities | 2 Cavity | 4 Cavity | 6 Cavity |
Theoretical Output | 1800 BPH(500ml) | 3500 BPH(500ml) | 5000 BPH(500ml) |
Max. Mould Thickness | 450MM | 300MM | 300MM |
Electrical System | |||
Voltage Standard | 380v/3PH/50Hz or special order | ||
Number of Heating Zone | 2 Sections | 4 Sections | 4 Sections |
Total Power (Full Loaded) | 25KW | 45KW | 65KW |
Container | |||
Max. Container Volume | 2L | 2L | 2L |
Neck Diameter Range | 38mm | 38-50mm | 38-50mm |
Max. Container Diameter | 150mm | 360mm | 360mm |
Max. Container Height | 380mm | 380mm | 380mm |
Air system | |||
Low Air compressor | 10Bar | 10Bar | 10Bar |
High Air compressor | 30Bar | 30-40Bar | 30-40Bar |
Dimension & Weight | |||
Blow molding machine | 2.35*1.65*2.0m | 3.65+0.5*1.65+0.2*2.0m | 4.65*1.5*2.2m |
Preform Autoloader | 1.1*1.2*2.2m | 1.5*1.5*2.2m | 1.5*1.5*2.6m |
Net Weight | 1.5T | 3.0T | 3.0T |
Main configurations:
No: | Name the part | Brand | Origin |

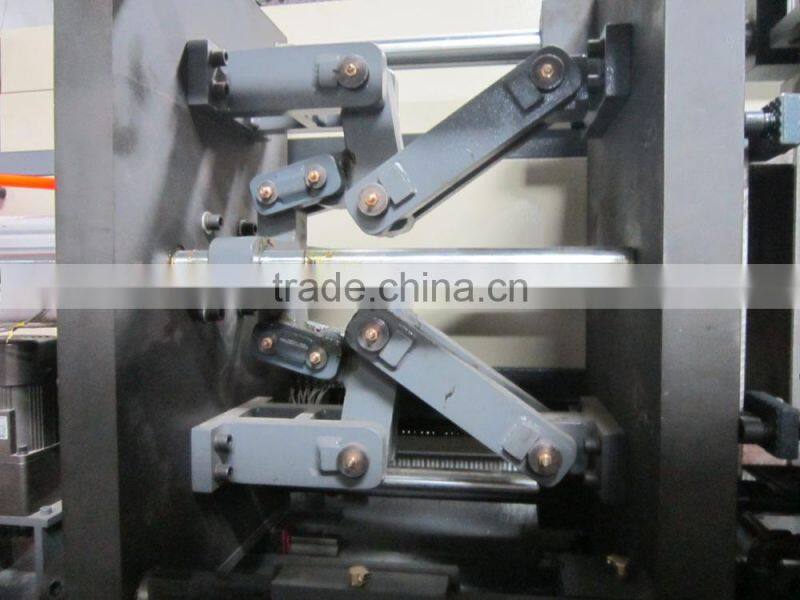

1 | Mould clamping cylinder | SMC/FESTO | Japan/Germany |
Stretch cylinder | |||
Preform move cylinder | |||
Mould bottom move cylinder | |||
Insert preform cylinder | |||
2 | All Solenoid valve | AIRTAC | China Taiwan |
3 | PLC and Touch screen | MITSUBISHI | Japan |
4 | Frequency converter | MITSUBISHI | Japan |
5 | Power switch and time delay | Schneider | France |
6 | All Sensor | SMC | Japan |

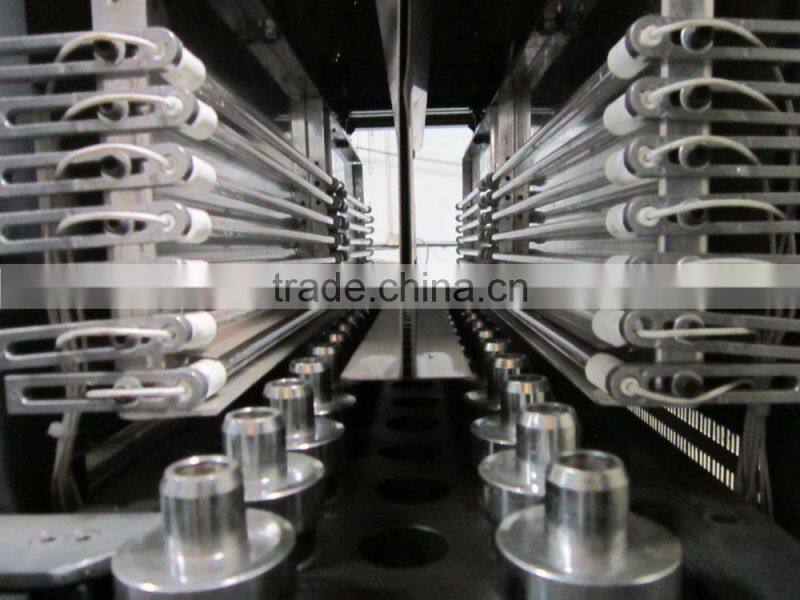

7 | Infrared lamp | HC | China |

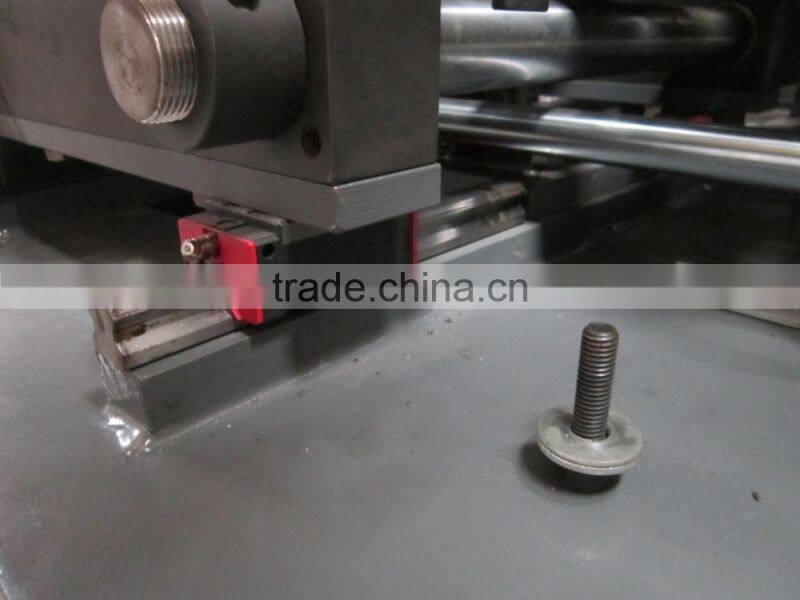

8 | Linear guider way | HIWIN | China Taiwan |
Spare parts
NO. | Name/Model | Qty |
1 | Voltage regulator | 2sets |
2 | Voltage regulator module | 2sets |
3 | Air cylinder sensor | 4pcs |
4 | Solenoid valve | 4sets |
5 | Reduce pressure valve | 1set |
6 | clamp air cylinder | 1set |
7 | Infrared lamp | 20pcs |
8 | O seal for air cylinder | 5sets |
9 | Silencer | 2pcs |
10 | O seal for blow head | 50pcs |
11 | Air pipe for cylinder 12mm 10mm 8mm 4mm | 20meter*4sets |
12 | PTEF belt | 10pcs |
13 | Antirust | 10pcs |
14 | Air pipe fitting | 50pcs |

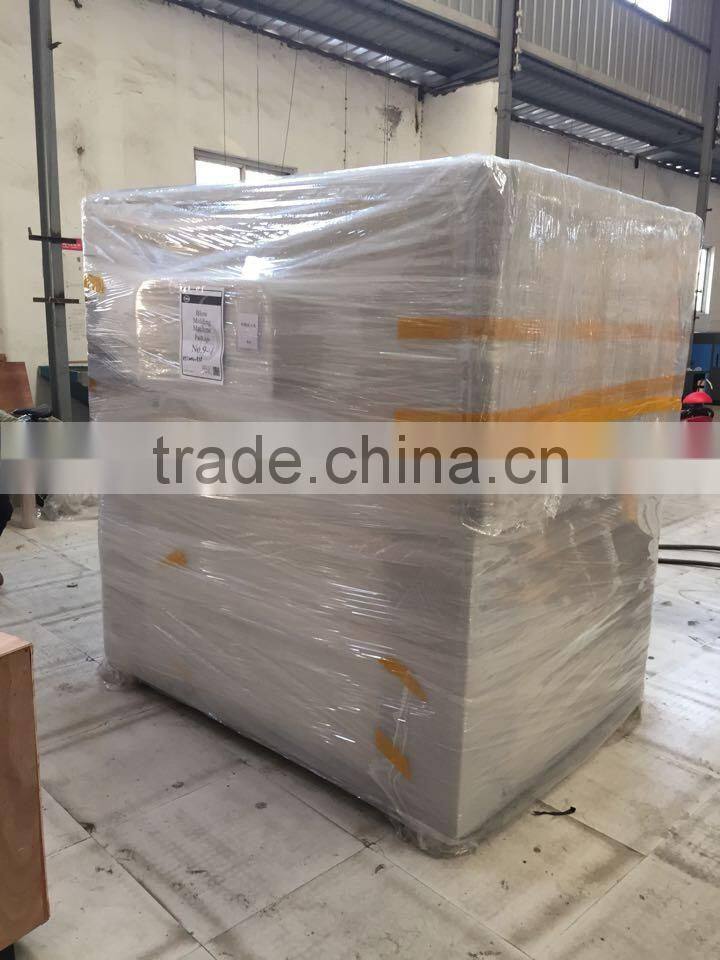

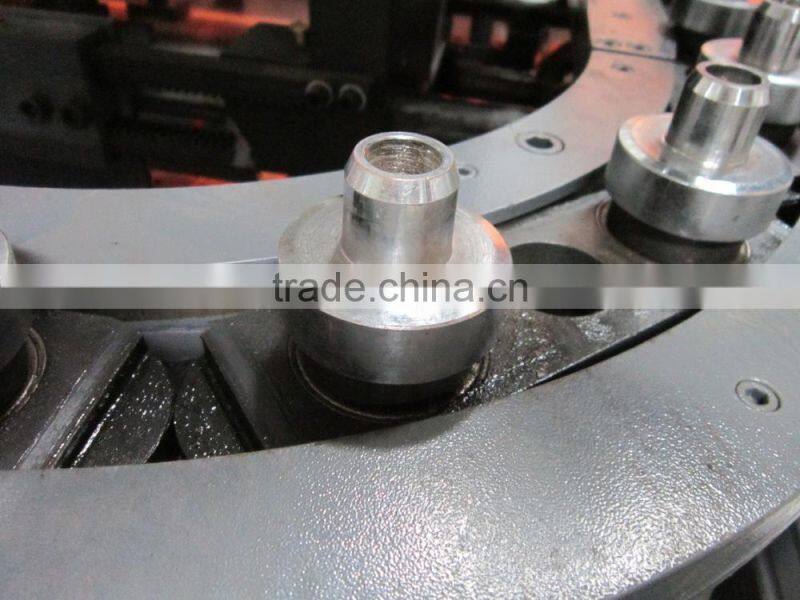

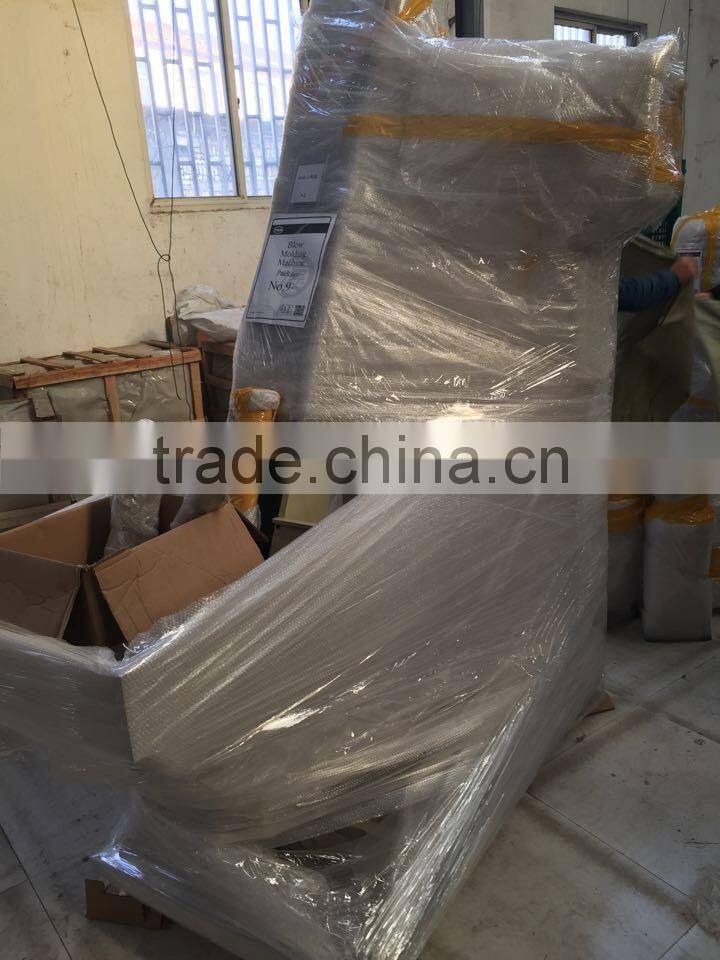

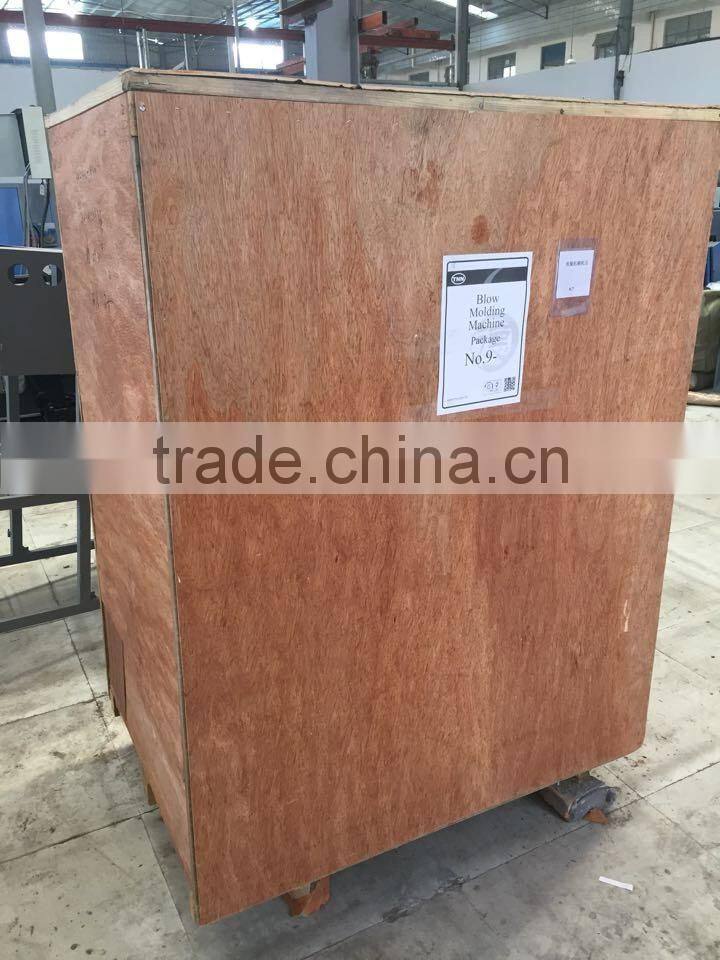

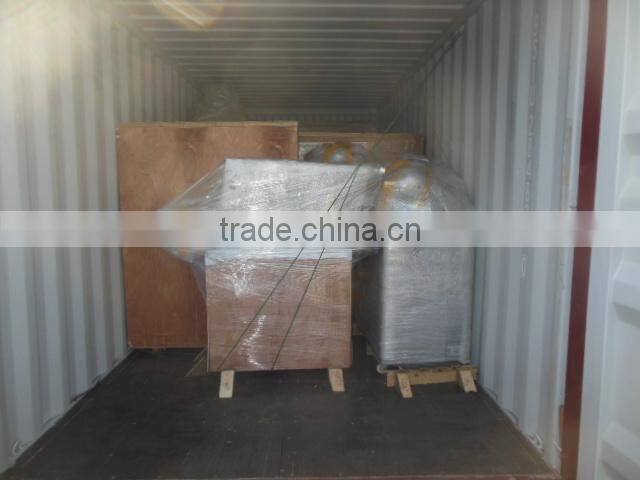

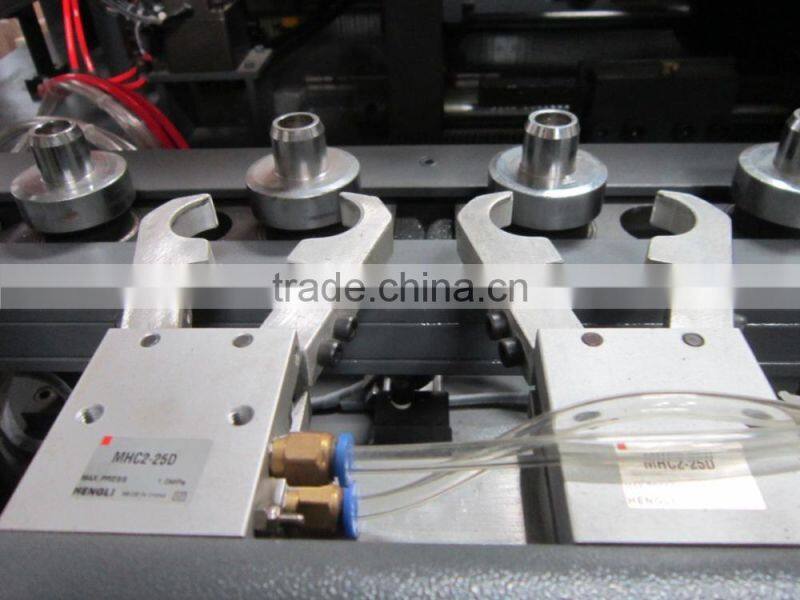

Machine pictures
Warranty: One year from the date from the date of Installation or acceptance of the Plant whichever comes first.
Free Spare Parts : Digital instrument, Sealing, Stretching cylinder seal ring, Mould-adjustment wrench, Furnace temperature table, Furnace heating tube and other relative vulnerable part .
Installation: Experts’ team to buyer’s country after confirmation that the goods arrived in site and civil works completed get ready for installation. Funds for trip need to be payed by client and extra salary $50/day during the engineer’s journey.
