Specifications
carbonated drink filling machineA.washing,filling&capping
B.suitable for carbonated drink
C.SUS304 SS
st efficiently

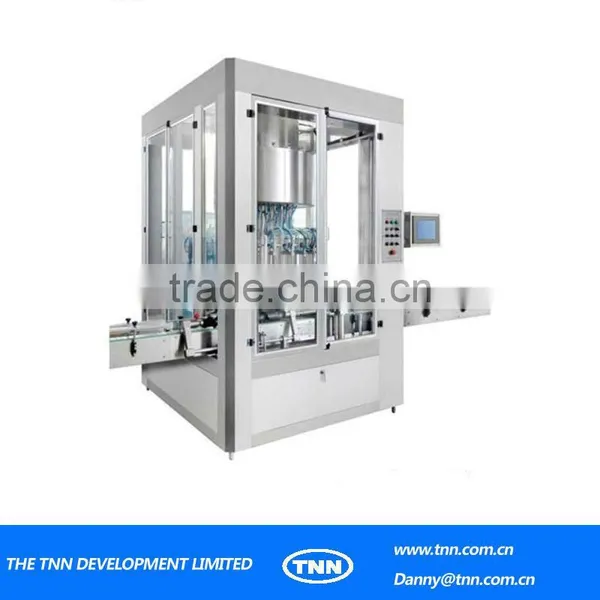

full automatic carbonated drink carbonated drink filling machine
carbonated drink filling machine
A.washing,filling&capping 3 in 1
B.suitable for carbonated drink
C.SUS304 stainless steel
st efficiently
1) Conveying process:
By adopting bottle-neck clamping design, or Hanging Type Bottle-Conveying System, the DCGF series can adapt many different shapes of bottles easily. It can be applied to your producing line directly with much less auxiliary units as well as inconveniences needed.
2) Filling process:
The DCGF series adopt Micro-Pressure technology which makes the filling process faster and more stable without losing pin-point filling accuracy.
3) Washing process:
Spring clamps are applied in the bottle washing unit. Empty bottles can be turned over by 180 degrees along the conveying rail. Two times of internal and external washing can guarantee the bottle washing quality.
4) Sealing process:
Magnetic torque technology is used for cap screwing. The force of cap screwing can be adjusted continuously without grade. This function guarantees a low defect rate of capping process.
5) Cap supplying process:
Air-powered horizontal swirl cap sorting device is applied in cap supplying process, in order to prevent cap from being scratched. And shortage of cap in Cap-Storing-Tank can be sensed out by sensors which can let out an alarming. After that, more caps can be reloaded automatically.
6) Quality of components:
All parts that have direct contact with water are made of SUS304 stainless steel. The key electronic components are introduced from world-famous brand name companies such as Mitsubishi and Omron, etc. And pneumatic devices are also introduced from Japan and Italy.
Model | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-12 | DCGF40-40-15 |
Usage | ||||
Used for bottle washing, filling and sealing processes for AERATED beverage, such as coca-cola, sprite, mineral water (carbonated drink), etc. | ||||
Production capacity(500ml) | 5000-6000 | 6000-7000 | 8000-9000 | Around 10000 |
(1500ml) | 2000-3000 | Around 4000 | Around 5000 | Around 6000 |
Washing heads | 18 | 24 | 32 | 40 |
Filling heads | 18 | 24 | 32 | 40 |
Capping heads | 6 | 8 | 12 | 15 |
Filling pressure | ≤0.4 | ≤0.4 | ≤0.4 | ≤0.4 |
Filling precision | ≤±5mm (by liquid level) | ≤±5mm (by liquid level) | ≤±5mm (by liquid level) | ≤±5mm (by liquid level) |
Dimension of PET Bottle (mm) | Diameter:Φ50-Φ100, Height:150-310 | Diameter:Φ50-Φ100, Height:150-310 | Diameter:Φ50-Φ100, Height:150-310 | Diameter:Φ50-Φ100, Height:150-310 |
Suitable cap type | Plastic thread cap | Plastic thread cap | Plastic thread cap | Plastic thread cap |
Washing medium | Sterilized water | Sterilized water | Sterilized water | Sterilized water |
Washing pressure | 0.25 | 0.25 | 0.25 | 0.25 |
Power (KW) | 3.1 | 3.1 | 5.6 | 7.5 |
Overall dimension (mm) | 2400*1900*2300 | 2800*2100*2300 | 4200*2300*2300 | 5000*2800*2400 |
Weight (kg) | 3500 | 4500 | 5500 | 9000 |
Price (FOB SHANGHAI) | USD28500 | USD37500 | USD49300 | USD55500 |
Factory
The factory is over 10,000 square meters and have over 400 staffs.
Modern processing equipment to control the quality strictly.
Company Activities
Certificate
You may also interested in the following products.
Whole production plant design
TNN Development Ltd. (TNN) is an export-oriented, overseas-funded enterprise established in October, 1998.
TNN has passed ISO 9001: 2008 verification, TNN management and operation has obtained international advanced level.
Our goal is: Make your life better!
***********************************
