S27-Full Automatic Heat Shrink Sleeve Labeling Machine
- 30 Set / Sets per Month
- Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Automatic Steam Shrink Machine for Bottle
- Shrink Sleeve Steam Tunnel Machine
- Steam Shrink Sleeve Label Machine For Bottle
- PVC Sleeve Label and PET Bottle Steam Shrink Tunnel Quality Choice Supplier's Choice
- PET Bottle Shrink Sleeve Steam Shrink Tunnel Quality Choice
- Automatic Heat Shrink Tunnel Machine
Product Details
Condition: | New | Application: | Beverage, Chemical, Commodity, Food, Medical | Packaging Type: | Bottles |
Packaging Material: | Plastic | Automatic Grade: | Automatic | Driven Type: | Electric |
Voltage: | 380V. 50Hz | Power: | 1.5-2kw | Place of Origin: | Shanghai, China |
Brand Name: | TNN | Model Number: | SLM-150 | Dimension(L*W*H): | 2.2*1.25*2.2(main body), >2000*850*2000 mm |
Weight: | 700kg | Certification: | CE/ISO9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

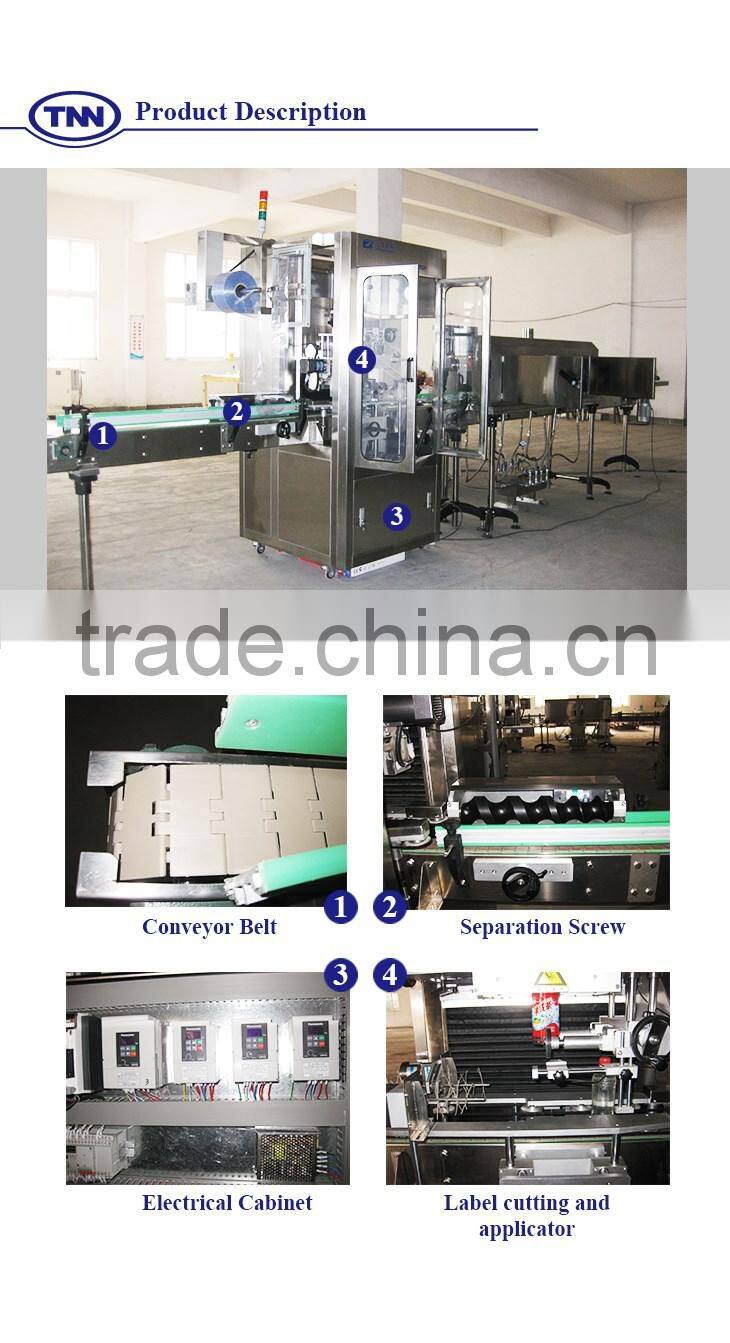

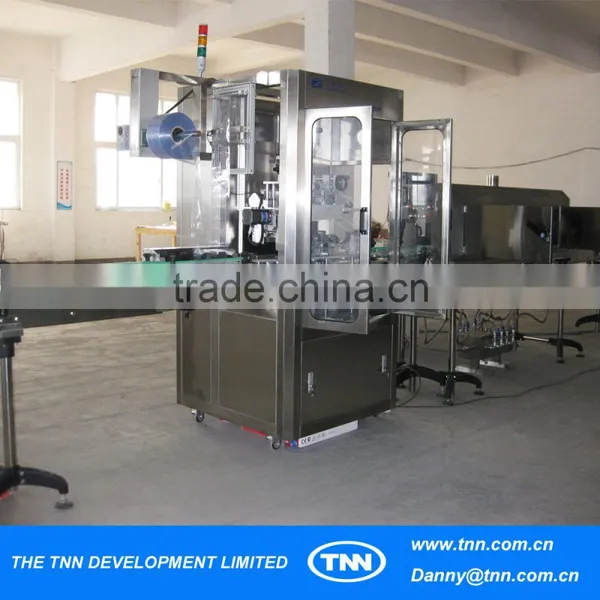

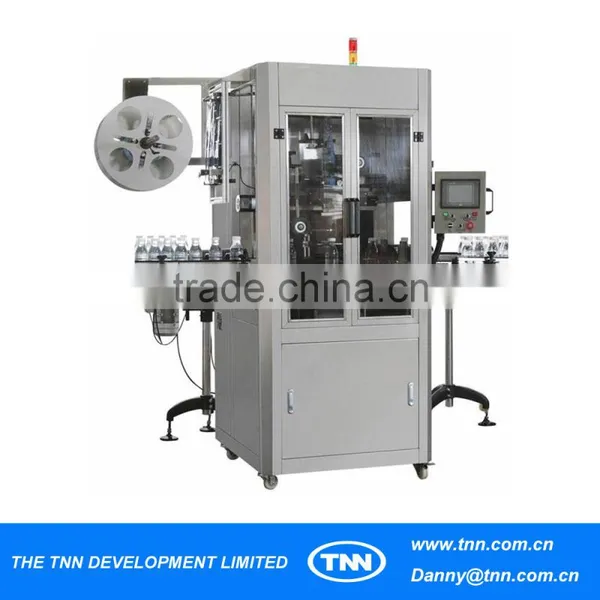

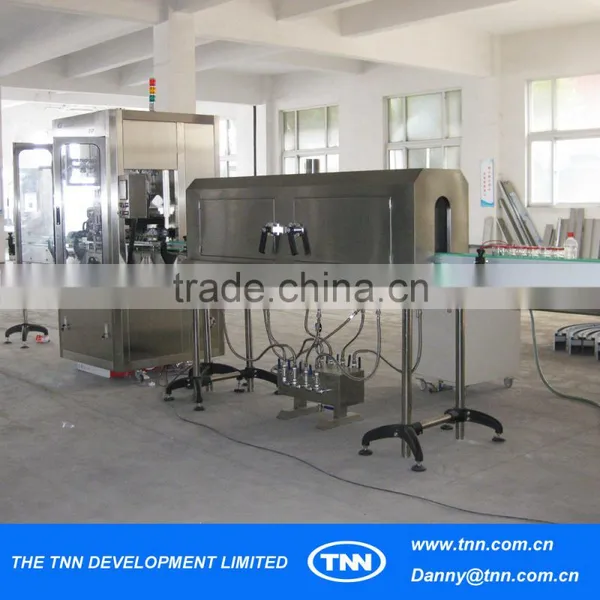

S27-Full Automatic Heat Shrink Sleeve Labeling Machine

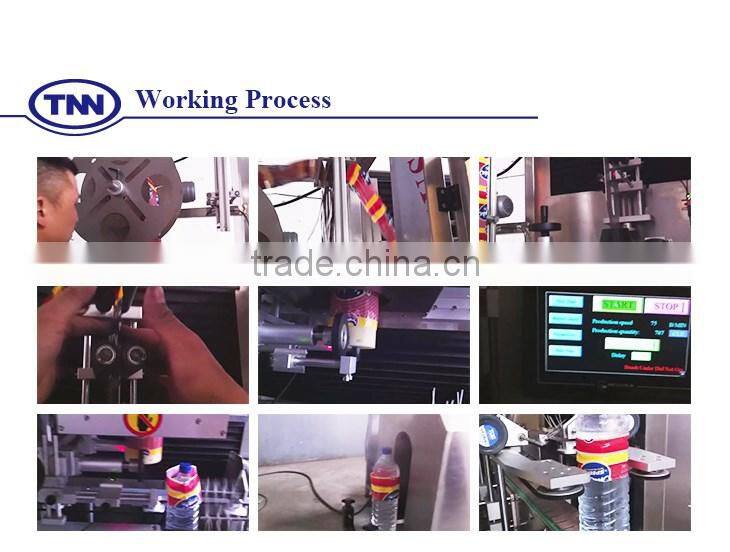

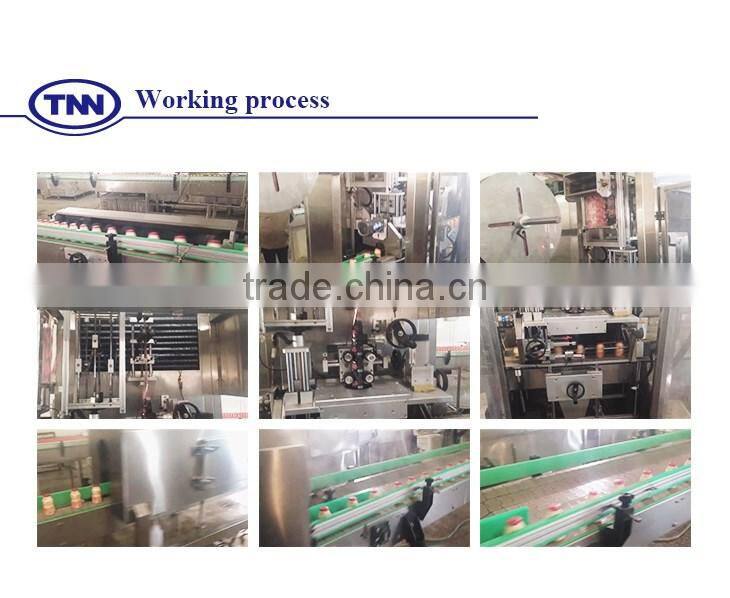

The automatic sleeve labeling machine adopts intentional advanced technology---cover the circle label on the bottle. Hot shrinking to fix on the position which bottle body is designed. This machine’s structure is compact, and suitable for the production line of different directions and different heights.
The machinery part adopts combination designing of modularization and makes the machine reliable. The height adjustment adopts motor fluctuation. It is convenient to replace the material. The special cutter head design, make the label rolling cut more accurated and reliable.
It is widely used in mineral water bottle, pure water bottle, soft drink bottle, medicine bottle, food bottle and other containers. Production capacity range is 2000-36000BPH.
SPECIFICATION:
Model | SLM-150 | SLM -250 | SLM -350 | SLM -150D |
Capacity | 150BPM | 250BPM | 350BPM | 150BPM |
Container diameter | Φ28-Φ120 | |||

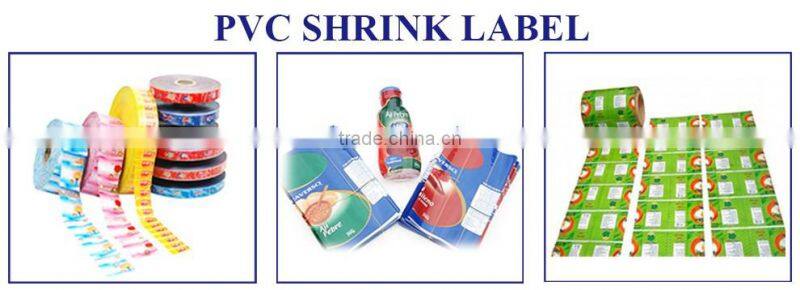

Suitable Label Material | PVC PET OPP OPS | |||
Label Thickness | 0.03-0.10mm | |||
Label Length | 30-250mm | |||
Voltage | 380V, 50/60Hz, 3 phase | |||
Steam Power | 21KW | 21.5KW | 42KW | 42KW |
Overall Dimension | 2100*850*2000 | 2100*850*2000 | 2500*1050*2000 | 3000*1000*2000 |
Weight | 500kg | 550kg | 800kg | 1000kg |
CONFIGURATION:
No. | Item | Brand | Origin |
1 | PLC | Panasonic | Japan |
2 | Touch Screen | WEINVIEW | Taiwan |
3 | Photoelectric Sensor | SUNX | Japan |
4 | Servo Drive and Motor | Panasonic | Japan |
5 | Bottle Discharge AC Contactor | Delta | Taiwan |
6 | Draught Fan Motor | WANSHIN | Taiwan |
7 | Circuit-breaker | Schneider | Germany |
8 | Intermediate Relay | OMRON | Japan |
1. What’s the lowest capacity sleeve labeling machine?

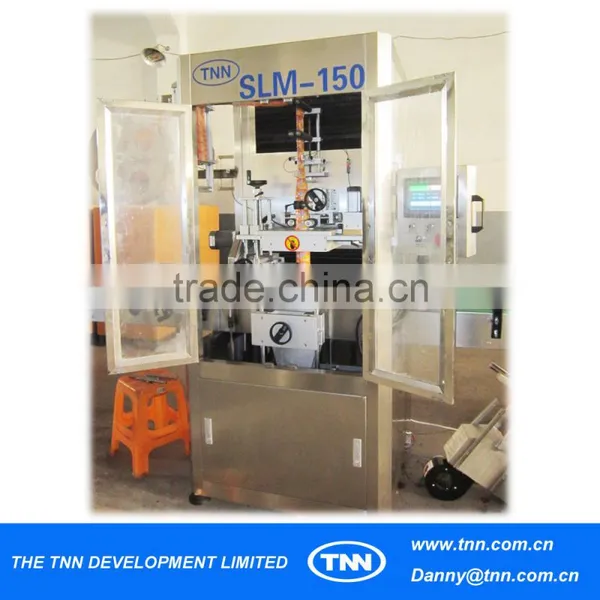

The lowest capacity automatic sleeve labeling machine is 9,000BPH, 500ml bottle, Model SLM150.
2. Can our machine label caps and bottles at the same time?

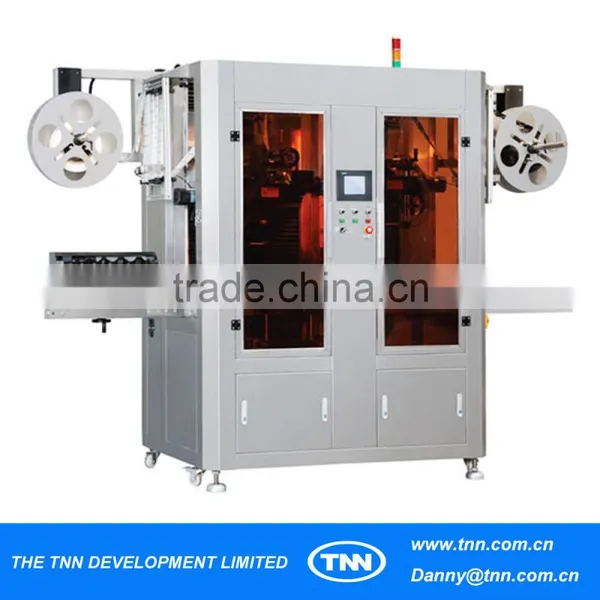

Yes, we have model SLM150D, which is a double-head sleeve labeling machine.
3. How long is the delivery time?
It will take 20-35days. Customers need to confirm bottle drawing as early as possible.
Customers do not need to provide bottles and caps for machine tests.
4. How to install?
We will send technicians to guide customers do installations and trainings, if customers require.
The installation takes 3-5days.
5. What guarantees can we provide?
Free spare parts will be attached to each machine. It is adequate enough for one year's production.We will send new parts within 72 hours, if there is any part is damaged.
6. What is electricity supply requirement?
220V, single phase, 50/60Hz
380V, 3 phase, 50Hz
If your voltage is different from above, please let us know before place an order.
