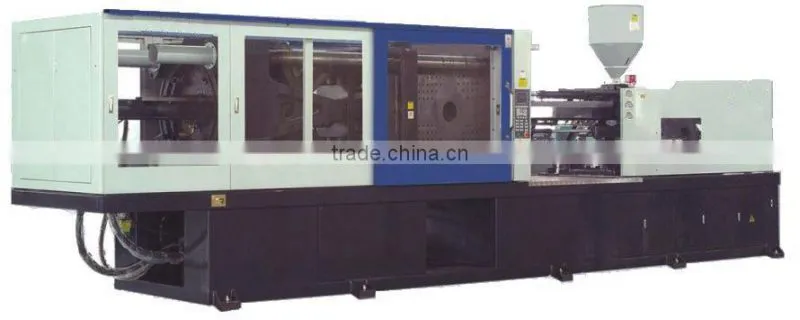

393 Injection Molding Machine HZ1680

393 Injection Molding Machine HZ1680 thumbnail-1
393 Injection Molding Machine HZ1680 photo-1
US$ 16,000 - 25,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Preform Injection
Style:
Horizontal
Contact Supplier Request Quote Chat Now
The TNN Development Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Preform Injection
Style Horizontal
Brand Name HZ
Model Number HZ1680
Place of Origin Zhejiang, China
Plastic Type Thermosetting
Automatic Yes
Injection Weight 393g
Injection Rate 170g/s
Clamping Force 1680KN
Opening Stroke 420mm
Power(W) 15kw
Certification CE
After-sales Service Provided Overseas service center available

393 Injection Molding Machine HZ1680

Injection Molding Machine
1.Energy Saving Design
2.Making PET bottle preform
3.We provide hot runner mold
4.High pressure



Specification

Item

A Type

B Type

C Type

Screw Diameter (mm)

40

45

50

Screw L/D Ratio (L/D)

22.5

20

18

Injection Volume (cm3)

276

350

432

Shot Weight (g)

252

320

393

Plasticizing Capacity (g/s)

15.8

20

24.6

Injection Rate (g/s)

110

140

170

Injection Pressure (MPa)

214

169

137

Screw Speed (rpm)

0~180

Clamping Force (KN)

1680

Toggle Stroke (mm)

420

Space Between Tie Bars (mm)

460*460

Mould Thickness Range (mm)

180~500

Injector Stroke (mm)

120

Pump Pressure (MPa)

16

Motor Power (KW)

15

Heater Power (KW)

9.3

Machine Dimension (L*W*H) (mm)

4700*1450*1900

Machine Weight (T)

5
