Multi Media Filter

US$ 1,000 - 1,000 MOQ: 1 Set

Key Specifications

Get Latest Price

Business Type:

Trading Company

Year Established:

2013

Factory Size:

Below 1,000 square meters

Contact Supplier Request Quote Chat Now

Dongying Kangyu Petroleum Engineering Technology Service Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Product Description

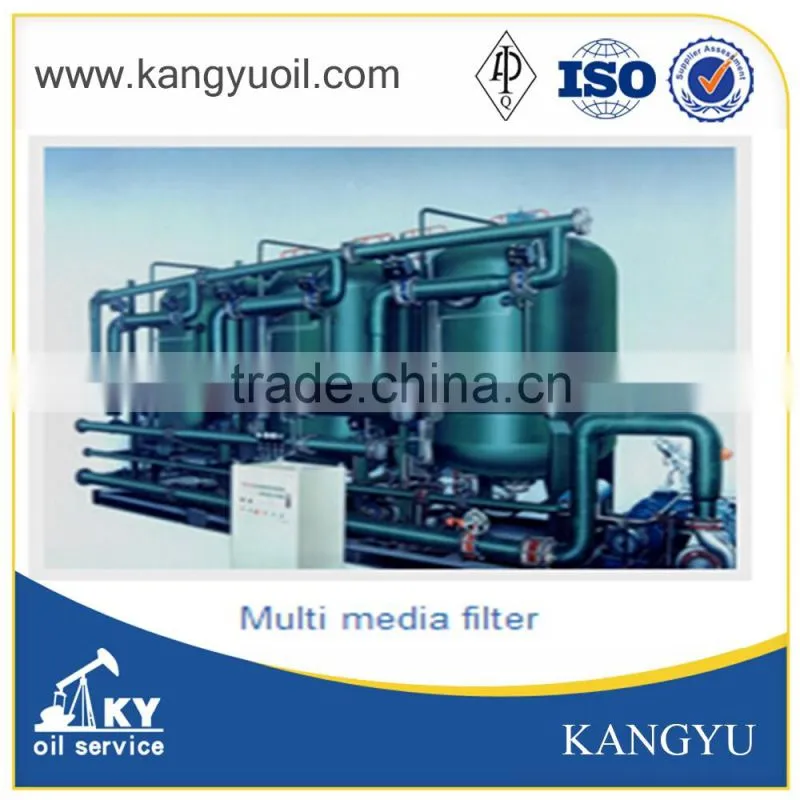

Multi media filter

work principle

    DHDL---X type energy-saving multi-media filter mainly use one or several filter media , under the certain pressure the water through media removal the suspend , mechanical impurities, serve to reduce water turbidity, general requirements of water turbidity is less than 20 degrees , outlet water turbidity is below the 3degrees.
    Removal of the suspended substances, solid particles. Suspended solid are water insoluble hundred colloidal solid, which precipitate, when the conditions are suitable , filter retain suspended solids , suspended solid in the filter media retention as a measure of the weight difference before or after filter function basis, according to water impurities can be filtered using single double and multi-layer filter filter, meet the requirements of deep water purification.
    Filter media include: quartz sand ,anthracite coal magnetite manganese sand. diatomaceous earth activated carbon, the device has a cheap cost , low operation cost ,simple operation etc

technology parameters

model parameters	DHDL-300	DHDL-500	DHDL-800	DHDL-1000	DHDL-1500	DHDL-2000	DHDL-2600	DHDL-3000
Filter flow	2	6	15	25	53	100	150	210
filter volume	0.07	0.20	0.50	0.79	0.79	3.14	5.31	7.07
Filter rate	5~20
Filter media diameter D(mm)	0.5~1.0
Suspend turbidity before filter	≤20mg/L(FTU)
Suspend turbidity after filter	≤3.0mg/L(FTU)
capacity of cut polluted	6~10kg/m3
filtration resistance loss	Initial pressure loss of about 0.02 MPa ;filter failure out of the water pressure is 0.05~0.10MPa
work pressure	0.05~0.6MPa
Woke temperature	5~40OEM
pure water pressure	0.1MPa
pure water strongth	10~12L/S.m2
pure wash air pressure	0.05~0.1MPa
wash air strength	60L/S.m2
