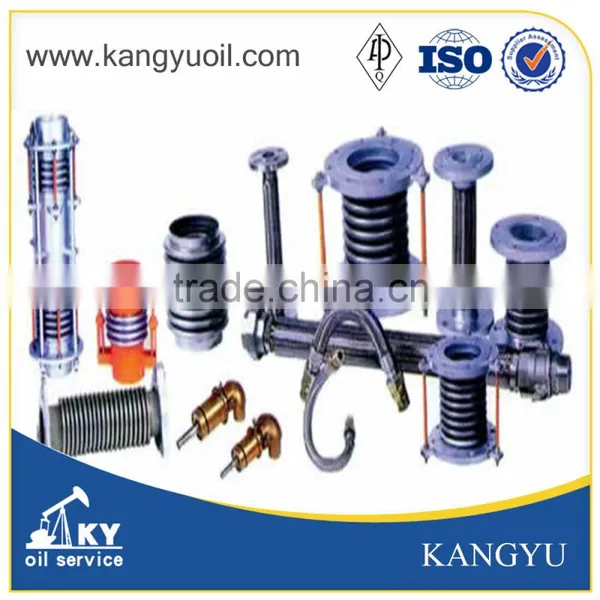

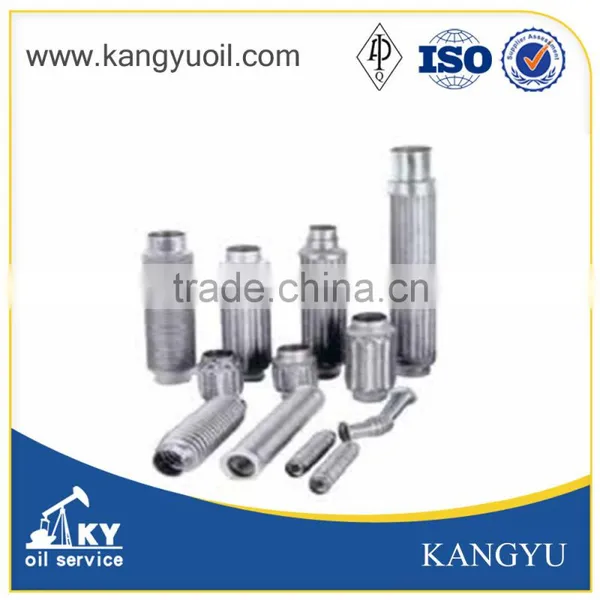

Stainless steel pressure flexible metal tubing is a stainless steel corrugated tube with one or several outer coats of steel wires or steel belt net sleeve and connectors or flanges at the ends for connection . It is flexible element for delivery of various fluid media,featuring resistance to corrosion and low and high temperatures( -196℃~+420℃),light weight,compactness and good flexibility.It is widely used in aviation,spaceflight,petrole um,chemical industry,metallurgy,electricity,paper-making,timber,textile,building,medicine,food,tobacco,traffic and other sectors.
Classification |
Nominal ID(mm) |
Min.ID (mm) |
Max.OD(mm) |
Working Pressure(PN) |
Test Pressure (MPa) |
Burst Pressure |
Min.bend radius |
||
Mpa |
PSI |
Static |
Dynamic |
||||||
high pressure |
4 |
2.5 4.5 6.5 8.5 10 |
8.5 12 14 16 20 |
35 23 |
5071 3332 |
1.5PN |
3PN |
≥10DN |
≥2Rj |
|
14 18 20 25 32 |
12 16 18 22 30 |
22 26 28 34 42 |
21 17 15 10 7 |
3043 2463 2175 1449 1014 |
|||||
medium pressure |
4 6 8 10 |
2.5 4.5 6.5 8.5 |
8.5 12.5 14.5 16.4 |
10 |
1449 |
4PN |
|||
|
12 14 18 |
12 14 18 |
20 22 26 |
8.0 |
|
|||||
|
20 25 |
20 24 |
28 34 |
6.4 |
|
|||||
|
32 40 |
32 40 |
42 52 |
4.0 |
|
|||||
low pressure |
4 6 8 10 |
4 6 8 10 |
8.5 12 14 16 |
2.5 |
|
||||
|
12 14 18 20 |
12 14 18 20 |
|
1.6 |
|
|||||
|
25 32 |
24 32 |
34 42 |
1.0 |
|
|||||
|
40 50 |
40 50 |
52 64 |
2.5 |
|
|||||
|
75 100 |
75 102 |
92 122 |
1.6 |
|
|||||
|
125 150 |
125 150 200 250 |
161 193 252 302 |
1.0 |
|
|||||
|
200 250 |
0.8 |
|
Note:PN,PS,Pb are all the number at 20℃ |
||||||
1. Your inquiry related to our products or prices will be replied in 12 hours.
2. Well-trained and experienced staffs to answer all your inquiries.
3. Protection of your sales area, ideas of design and all your private information
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
standard package or according to customers needs
