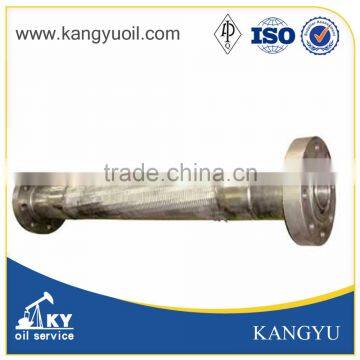

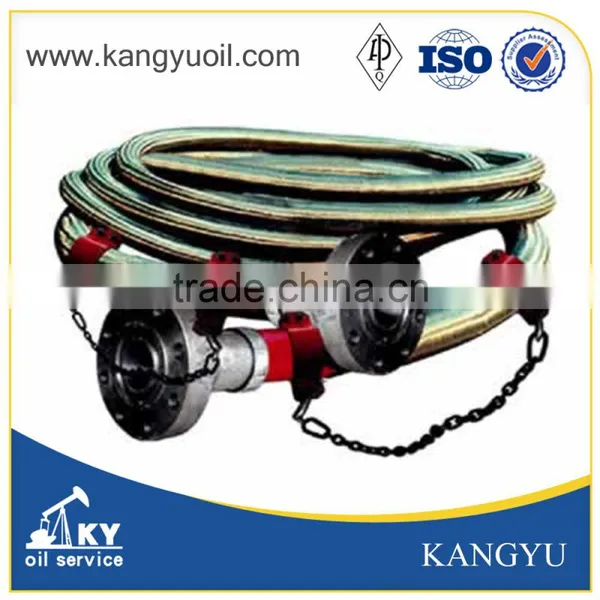

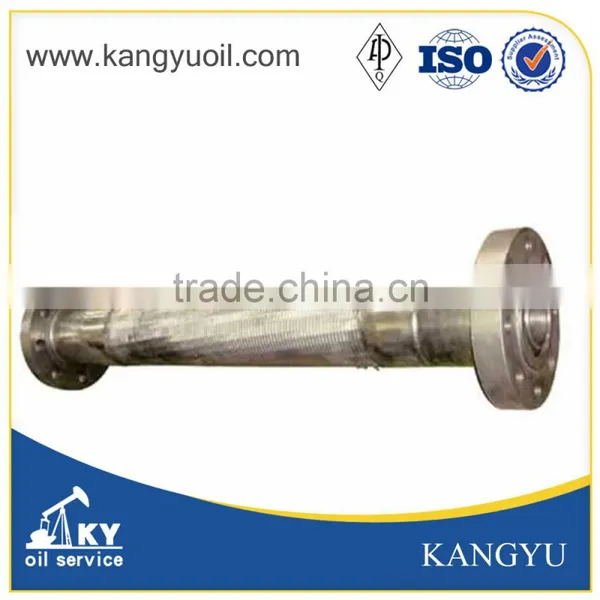

Help CenterFLEXIBLE CHOKE KILL LINE
Related Products
-
SY/T5053.2-2007 BOP Control Pipeline HoseUS$ 1.5 - 35MOQ: 100 Pieces -
HIGH STRENGTH DRILLING HOSEUS$ 2 - 38MOQ: 100 Pieces
-
API 16D BOP Control Pipeline HoseUS$ 1.5 - 35MOQ: 100 Pieces
-
Hot Sales Stainless Steel Sea Water Pump CR-100US$ 78 - 78MOQ: 1 Piece
-
API Polished Rod Clamp for Sucker Rod in Oil FieldUS$ 50 - 50MOQ: 1 Piece
Patent No: ZL 94 2 10560.5
1,Applicable to connection at locations when drill platform, semi-submersible drilling vessel or drilling vessel moves relatively and the installation dimensions of the drill rig subsequently change,and to delivery of oil,gas.mud and other high pressure media (including mainly relief line,blowout control line and choke kill line).
2,Applicable standard: API Spec 16CSY/T5323-2004
3,The product features resistance to high pressure, thermal insulation, anti-flaming and fire resistance as well as inner wall with high abrasion resistance.
4,API emblem practical license Numbers: 16C-0374
The product features resistance to high pressure, thermal insulation, anti flaming and fire resistance as well as inner wall with high abrasion resistance.
(1) Applicability:Hydraulic control pipe line for BOP control equipments.
(2) Operating Temperature:-20°C~+82°C
(3) Tube:Abrasion, oil and corrosion resistant chemigum.
(4) Reinforcement:2-8 layers spiraled by high-strength steel wire.
(5) Cover :Weather, abrasion and ozone resistant neoprene.
(6) Outer protective:Stainless steel armoured
(7) Fittings:Swaged fitting with API thread, and can be connected with hammer union hubs,flanges or clamp
It also can be upon customer's requirement
Specifications:
ID mm(in) |
Rated working pressure MPa(psi) |
Test pressure MPa(psi) |
Min.burst pressure MPa(psi) |
Min.bending radius(mm) |
50.8(2) |
35.0(5000) |
70.0(10000) |
105.0(15000) |
900 |
64(2 1/2) |
1000 |
|||
76.2(3) |
1000 |
|||
89(3 1/2) |
1100 |
|||
101.6(4) |
1200 |
|||
50.8(2) |
70.0(10000) |
105.0(15000) |
157.5(22500) |
1000 |
63.5(2 1/2) |
1100 |
|||
76.2(3) |
1150 |
|||
89(3 1/2) |
1200 |
|||
101.6(4) |
1250 |
|||
50.8(2) |
105.0(15000) |
157.5(22500) |
236.25(33750) |
1000 |
63.5(2 1/2) |
1150 |
|||
76.2(3) |
1200 |
|||
50.8(2) |
138.0(20000) |
207.0(30000) |
310.0(45000) |
900 |
64(2 1/2) |
1100 |
|||
76.2(3) |
1200 |
1. Your inquiry related to our products or prices will be replied in 12 hours.
2. Well-trained and experienced staffs to answer all your inquiries.
3. Protection of your sales area, ideas of design and all your private information
30% deposit by T/T before production, 70% balance should be paid by T/T before shipment. but we also accept L/C.
standard package or according to customers needs
