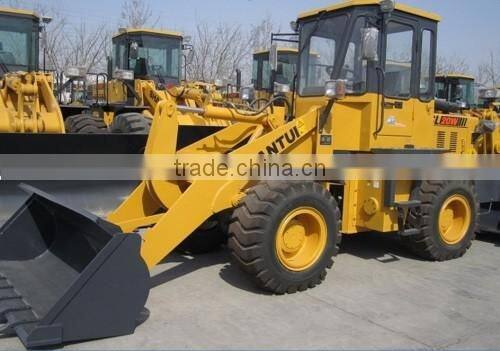

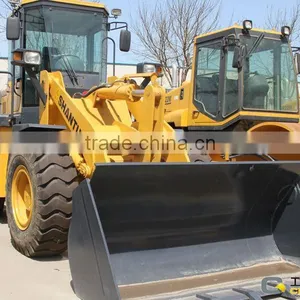

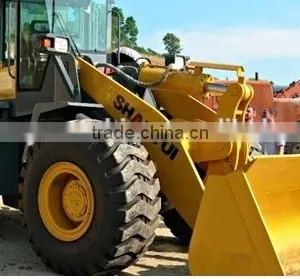

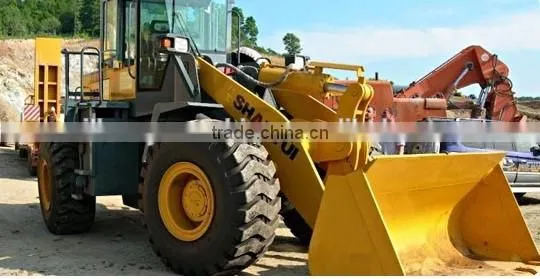

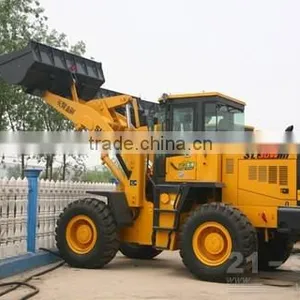

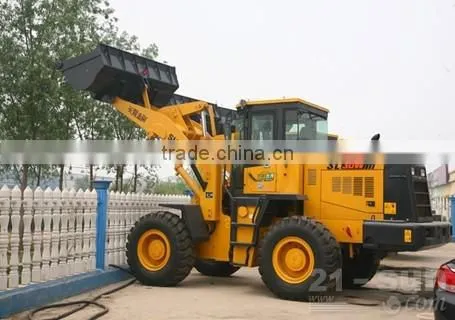

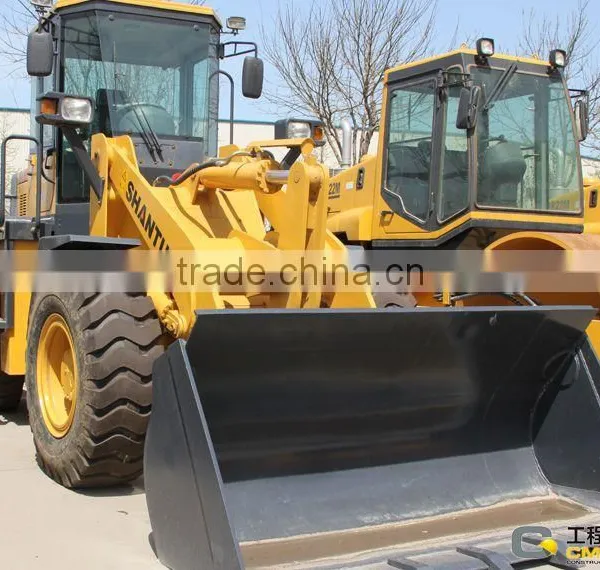

Help CenterShantui 3ton Wheel Loader SL30W With Good Quality and Low Price
Related Products
-
Shantui Mini 2 Ton Wheel Loader SL20W for SellUS$ 19,500 - 20,000MOQ: 1 Set -
Mini Wheel Loader 0.8ton Capacity JN98 for Europe MarketUS$ 5,000 - 20,000MOQ: 1 Unit
-
Hot Sale Lonking Wheel Loader 5 Ton 856 PayloaderUS$ 40,000 - 70,000MOQ: 1 Unit
-
NEW Lonking 5 Ton Payloader 856US$ 40,000 - 70,000MOQ: 1 Unit
-
LONKING Wheel Loader 856 Earthmoving MachineUS$ 40,000 - 70,000MOQ: 1 Unit
Product features:
- Super Power: engine uses green Weichai DEUTZ WP6G125E22 or FAW Xichai CA6DF1D-12GAG2 engine, powerful, reliable performance, high energy saving.
- superior transmission system: using double Shantui variable: single stage and two phase three element variable torque converter, fixed shaft type power shift gear box transmission of power. Power matching, smooth movement, more powerful. Structure, easy to maintenance. Four speed forward backward gear speed selection, suitable for a variety of harsh industrial and mining, to move more quickly.
Ultra high - loading height: optimization of the loading height 3057mm, industry with higher. That ensure superior loading performance, and sustaining greater torque. A wide range of loading and unloading operation, high efficiency. Bucket to realize automatic flat, and 9.5S. Smaller industries, the labor intensity of the driver low.
Optimization - wheelbase: 2700mm, ensure good site adaptability and flexibility, and to guarantee the operation stability, loading and unloading operations easily.
High - strength of the host structure: host structure of finite element analysis and optimal design, adopts a plate structure, robot automatic welding, load resistance, resistance to twisting, machine compact and rugged and good stability.
L swing frame design: swing frame swing up and down 12 design and loader in the rugged road driving more effectively, adhesion, stability and the better.
The hinge structure: double positioning hinge structure, and the frame adopts its own technology with reliable and convenient maintenance.
Energy saving, hold high, the perfect combination of flexible

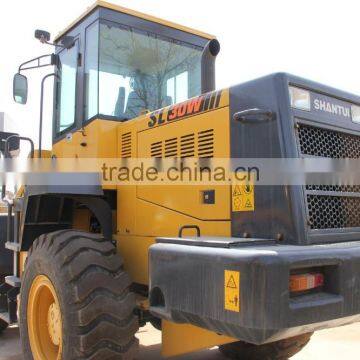

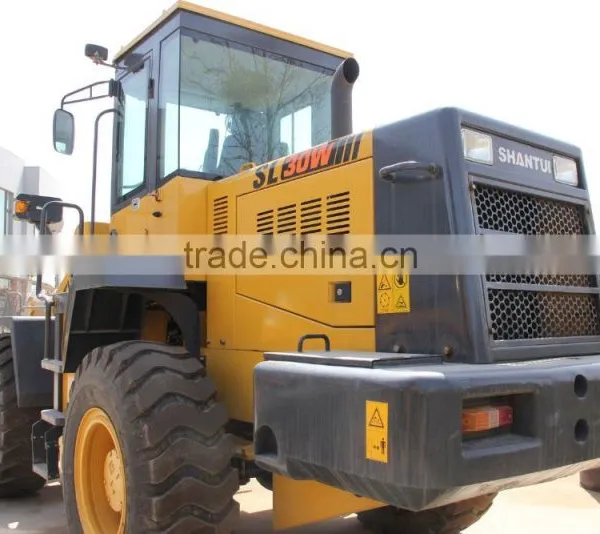

SL30W loading machine Shantui after extensive market research and application of the new technology and modern design method developed a small and medium power fixed shaft type loader products. The machine adopts hydraulic transmission and hydraulic control technology, advanced and reasonable structure, easy and flexible operation, reliable quality. Choice of the speed of 2 after the first four, high handling highly suitable for the shovel, loading, transport of bulk materials and earthworks construction operations of middle and small power conditions.
| Item | Specifications | Item | Specifications |
|---|---|---|---|
| Bucket capacity | 1.7m3 | Rated power | 92kW/2200rpm |
| Rated load | 3000kg | Tyre | 16/70-20 |
| Dumping height | 3057mm | Overall dimensions | 7170×2484×3193mm |
| Max.drawing force | 92KN | Operating weight | 10800kg |
