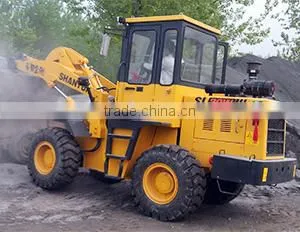

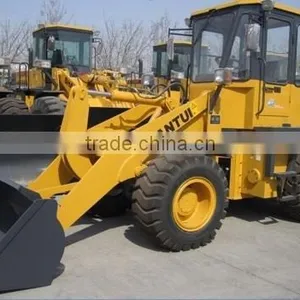

Help CenterShantui Mini 2 Ton Wheel Loader SL20W for Sell
Related Products
-
Mini Wheel Loader 0.8ton Capacity JN98 for Europe MarketUS$ 5,000 - 20,000MOQ: 1 Unit -
Hot Sale Lonking Wheel Loader 5 Ton 856 PayloaderUS$ 40,000 - 70,000MOQ: 1 Unit
-
NEW Lonking 5 Ton Payloader 856US$ 40,000 - 70,000MOQ: 1 Unit
-
LONKING Wheel Loader 856 Earthmoving MachineUS$ 40,000 - 70,000MOQ: 1 Unit
-
1.5CBM 3 Ton Mini Wheel Loader With Good PriceNegotiableMOQ: 1 Unit
Product features:
Super power: the use of a LR4B3-24 engine, green power strong, reliable performance, high efficiency and energy saving.
Superior transmission system: fixed shaft type gear box and a single turbine variable converter split installation, gearbox uses its BS428 type power shift gearbox, speed selection four back into the second, to adapt to different conditions, more powerful, to move more quickly.
Long wheelbase: optimization of the wheelbase 2270mm, that is, to ensure good adaptability to the site, but also to ensure the stability of the super work, handling and easy to work.
High loading height: optimization of the loading height 2850mm lengthened lift arm design, that is, to ensure superior loading performance, and sustaining greater torque. Bucket can realize automatic flat, high efficiency of loading and unloading operations.
High strength of the host structure: the main structure of the finite element optimization design, the use of plate structure, robot automatic welding, anti load, anti twist, the whole machine is firm and compact, good stability.
Swing frame design: swing up and down 12 degrees swing design, loading machine on the rough road can be more effective, greater adhesion, stability and better performance.
One machine with multi use: Grass grab, underground machine, side unloading bucket and other working devices can be used for selection.
Energy saving, hold high, the perfect combination of flexible

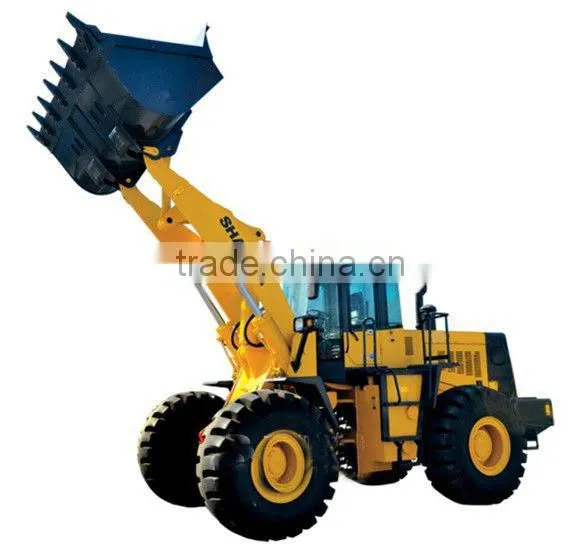

SL20W loading machine Shantui after extensive market research and application of the new technology and modern design method for development of a small power fixed shaft type products. The machine adopts hydraulic transmission and hydraulic control technology, advanced and reasonable structure, easy and flexible operation, reliable quality. After the first four second speed, high handling highly suitable for the shovel, loading, transport of bulk materials and earthworks construction, small power operating conditions.
| Item | Specifications | Item | Specifications |
|---|---|---|---|
| Bucket capacity | 1.0m3 | Rated power | 60kW/2400rpm |
| Rated load | 2000kg | Tyre | 16/70-20 |
| Dumping height | 2850mm | Overall dimensions | 5930×2050×2850mm |
| Max. breakout force | 48kN | Operating weight | 6200kg |
| Max. drawing force | 55kN |
