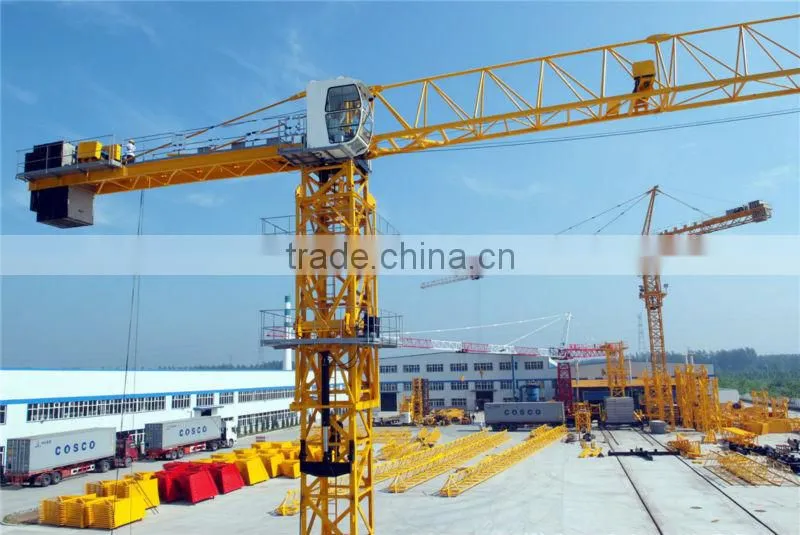

Flat-top Crane TC5510BP With 55m Working Radius

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

construction machinery

Max. Lifting Load:

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application construction machinery

Max. Lifting Load 6t

Max. Lifting Height 160m

Brand Name zxm

Model Number QTZ63BP

Certification CE, ISO9001

Warranty one year

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Free height: 40 m
Max height: 160 m
Jib length: 55 m
Max load: 6t
Tip load: 1t

Specialist for exporting tower crane

With Hydraulic Self-raising Mechanism

With Famous Jiangte Motors

With Various Safety Devices

High quality and competitive price, high performance.

Model	TC5510BP (QTZ63BP) Topless
Version	Fixed type
Free height	40 m
Max height	160 m
Max radius	55 m
Jib end load	1.0t at 55 m
Max load	6t at 13.56 m
Drum capacity	300 m
Lifting speed	4.5 m/min~80m/min
Slewing mechanism	HZ-63
Slewing speed	0.6 r/min
Trolley mechanism ←→	BF-63
Trolley speed	28 or 42 m/min
Power line voltage	380V/50Hz
Color	Yellow

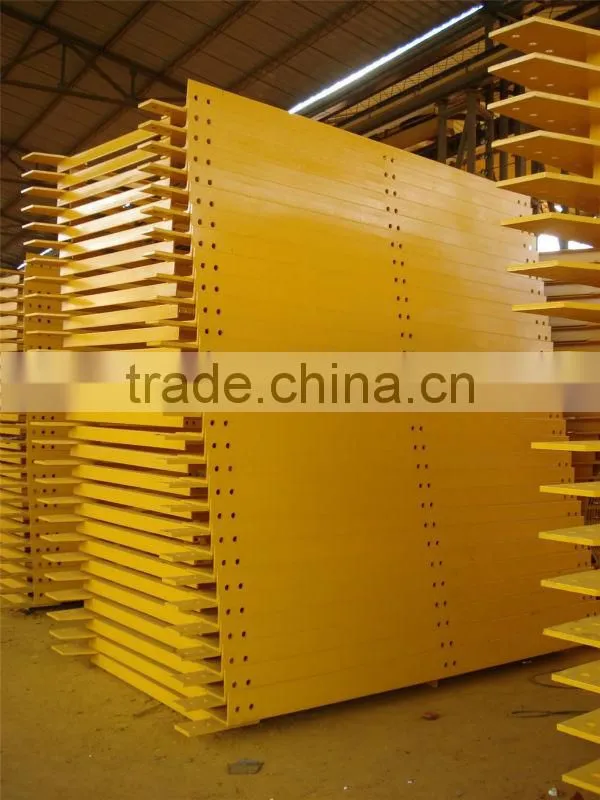

Mast section	1.8×1.8×3m
Mast section and Mast section connection	By screw
Foundation bolt	Included

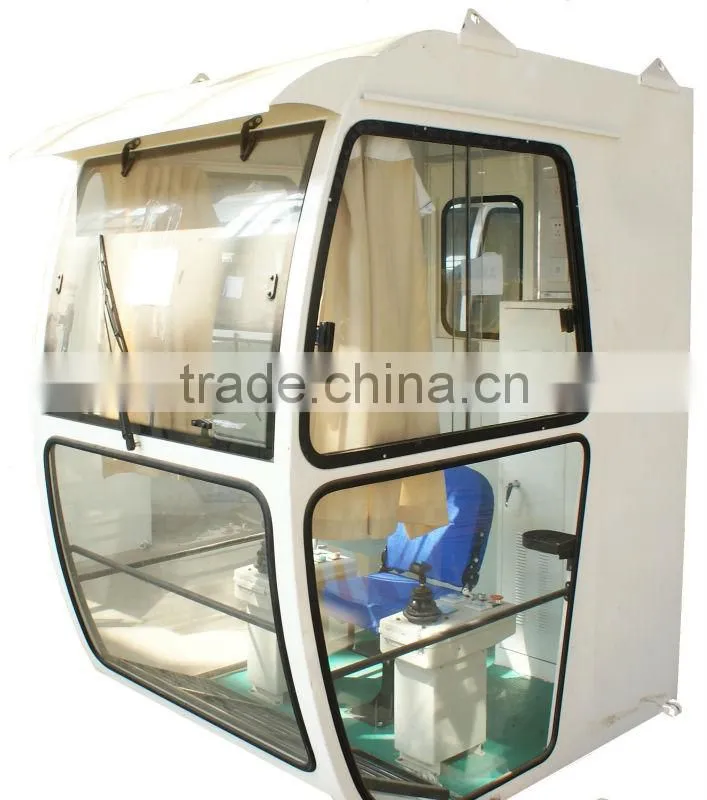

Cabin (with air condition)	Included
Telescoping cage	Included
Pump and cylinder	Included
Main cable	Included
Basic mast	Included
