Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Grader > Top Brand 130HP GR135 China Cheap Small Motor Grader for Sale

Top Brand 130HP GR135 China Cheap Small Motor Grader for Sale

Name: Top Brand 130HP GR135 China Cheap Small Motor Grader for Sale
Brand: China top brand
SKU: 140803566
Availability: InStock

US$ 50,000 - 55,000 MOQ: 1 Unit

Key Specifications

Get Latest Price

Condition:

New

Forward Speed(km/h):

Reverse Speed(km/h):

Contact Supplier Request Quote Chat Now

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Any Chinese Port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Forward Speed(km/h) 42

Reverse Speed(km/h) 30

Place of Origin Jiangsu, China

Brand Name China top brand

Model Number GR135

Weight 11200kg

Dimension(L*W*H) 8015*2380*3050mm

Certification CIQ, SGS

After-sales Service Provided Engineers available to service machinery overseas

Top Brand 130HP GR135 China Cheap Small Motor Grader for sale

Main Description:

Engine CUMMINS 130HP

Imported hydraulic parts
Operating weight 11.2ton
Moldboard width*height 3660*610mm
Dimension(L*W*H)8015*2380*3050mm

Optional Parts:

Front blade

Rear ripper

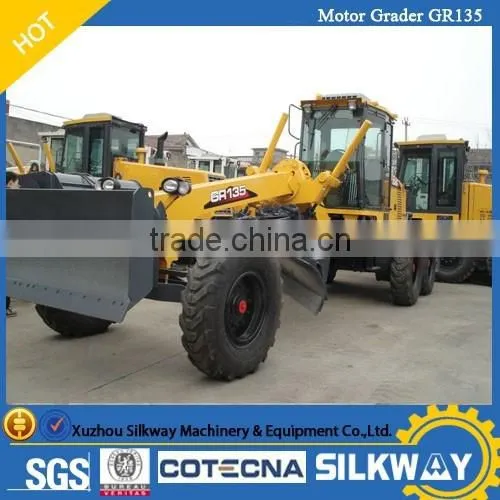

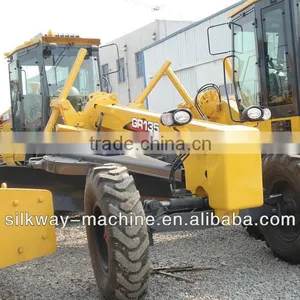

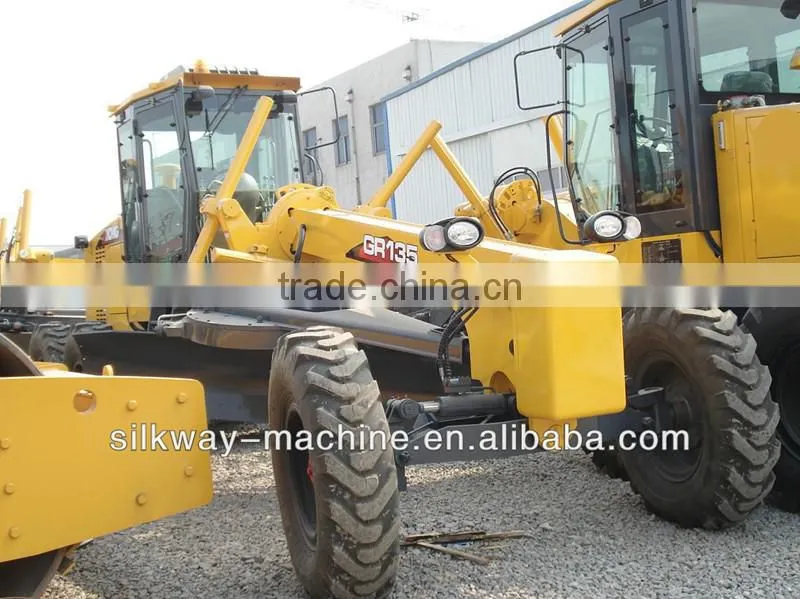

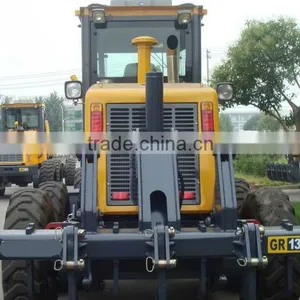

Photos of GR135 China cheap small motor grader for sale:

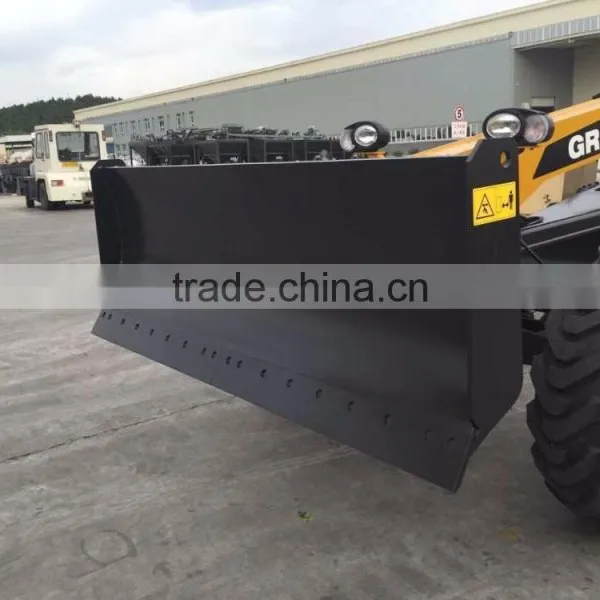

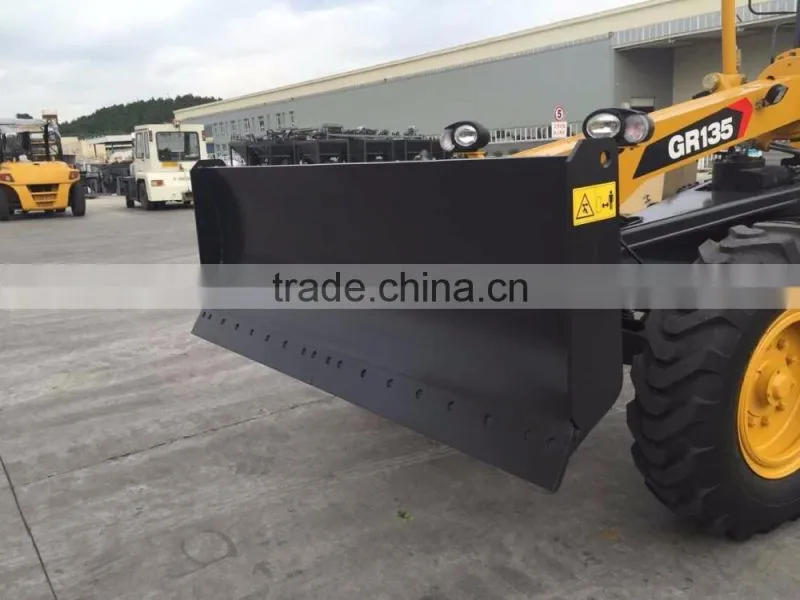

Front blade:

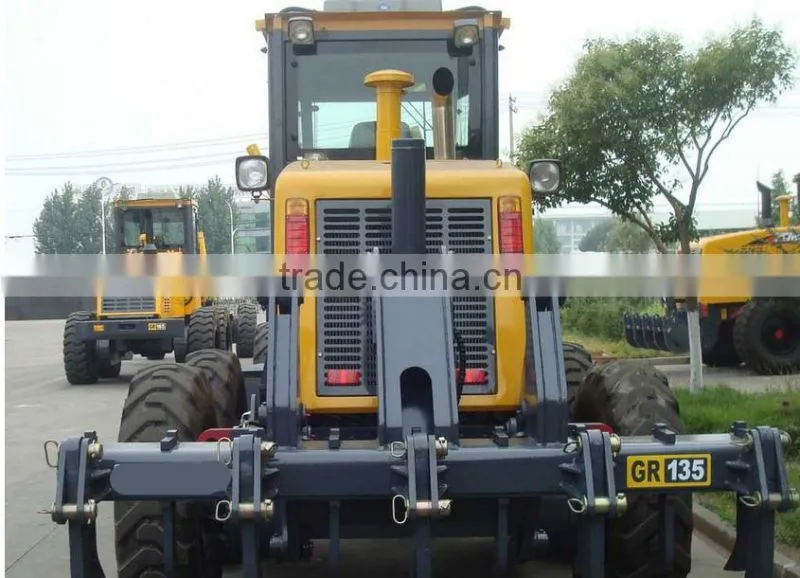

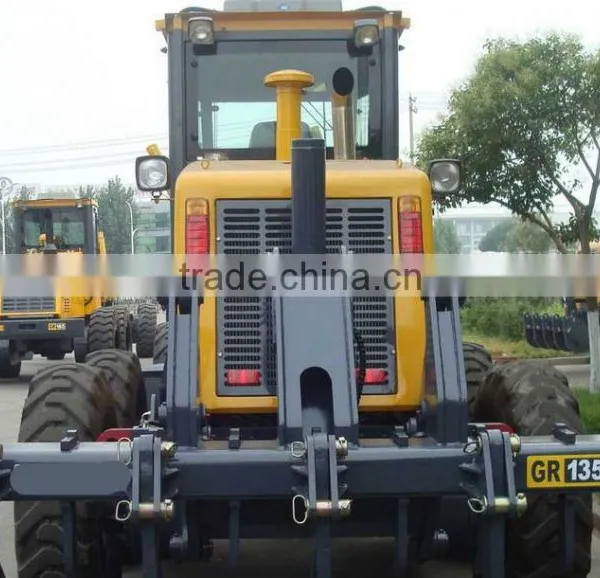

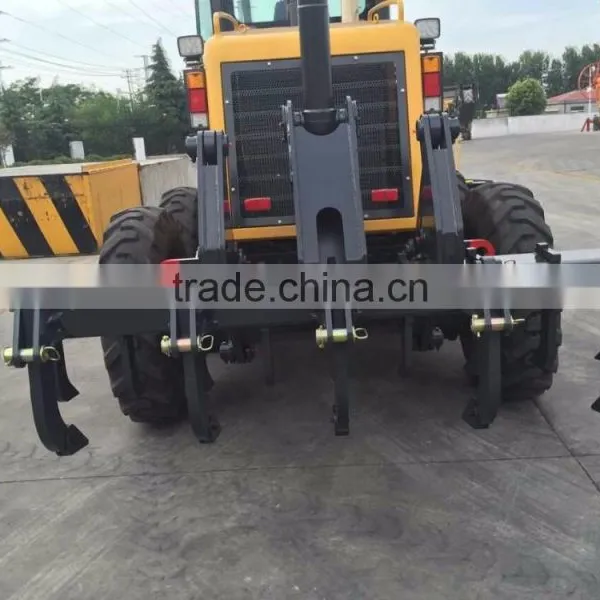

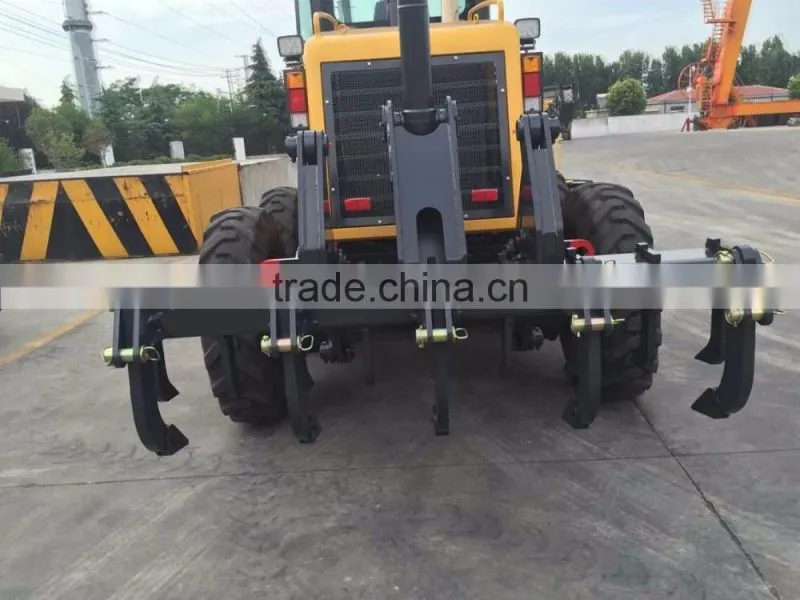

Rear ripper:

Detail Description of GR135 China Cheap Small Motor Grader for sale

GR135
Basic specification
Engine model	CUMMINS 6BT5.9
Rated power/speed	100/2200kw/rpm
Dimension(LxWxH)	8015×2380×3050mm
Operating weight(Standard)	11200kg
Performance specification
Travelling speed ,forward	5,8,13,20,30,42km/h
Travelling speed ,reverse	5,13,30km/h
Tractive force(f=0.8)	61.3KN
Max. gradeability	30%
Tire inflation pressure	300MPa
Working hydraulic pressure	16MPa
Transmission pressure	1.3~1.8MPa
Operating specification
Max. steering angle of front wheels	Left / Right49°
Max. lean angle of front wheels	Left / Right17°
Max. oscillation angle of front axle	Up / down15°
Max. oscillation angle of balance box	Before/After 16
Frame articulation angle	Left / Right27°
Min. turning radius using articulation	6.6m
Blade
Maximum lift above ground	410mm
Maximum depth of cutting	515mm
Maximum blade position angle	90°
Blade cutting angle	54°—90°
Circle reversing rotation	360°
Moldboard width X height	3660×610mm

Company:

WHAT ARE OUR ADVANTAGES ?

1. Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedback from clients, our price is more competitive than manufacturer /factories.

2. Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.

Our Sales Service:

01. Being available online 24 hours a day.

02. Responding to your e-mails at the first time.

03. Providing the best choice according to the customer’s needs.

04. Giving reception and organize visit of the factory, meeting, technical communication for the customers.

After-sales Service:

1. Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.

2. Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
