Home > Manufacturing & Processing Machinery > Engineering & Construction Machinery > Grader > China Motor Grader GR2153 With Euro III Engine

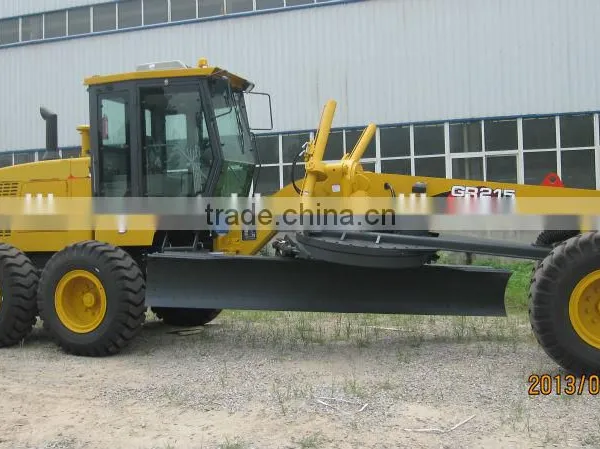

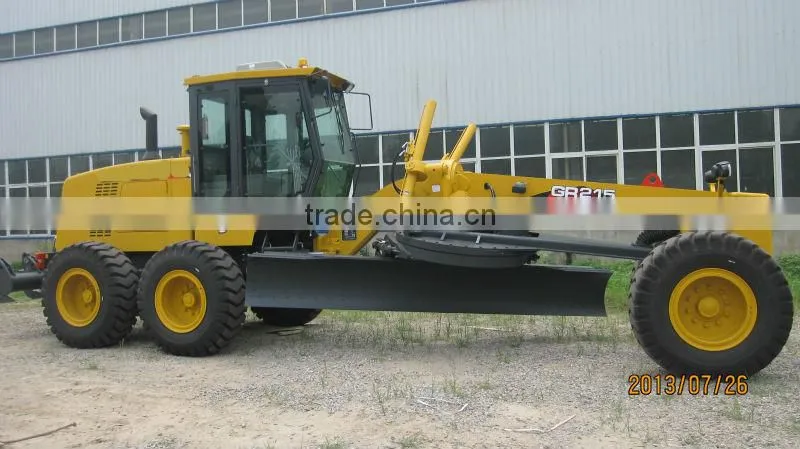

China Motor Grader GR2153 With Euro III Engine

Name: China Motor Grader GR2153 With Euro III Engine
Brand: China brand
SKU: 140803570
Availability: InStock

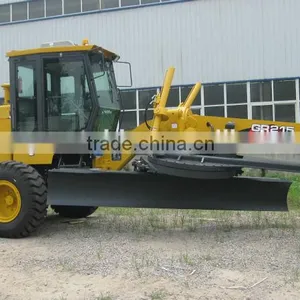

China Motor Grader GR2153 With Euro III Engine thumbnail-1

China Motor Grader GR2153 With Euro III Engine photo-1

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Condition:

New

Forward Speed(km/h):

Reverse Speed(km/h):

Contact Supplier Request Quote Chat Now

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

China port

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Condition New

Forward Speed(km/h) 38

Reverse Speed(km/h) 23

Place of Origin Jiangsu, China

Brand Name China brand

Model Number GR2153

Weight 16500kg

Dimension(L*W*H) 8970*2625*3470mm

Certification ISO90001-2008, CE

After-sales Service Provided Engineers available to service machinery overseas

Parameters of XCMG Motor Grader GR2153:

200-220h

4270mm Blade

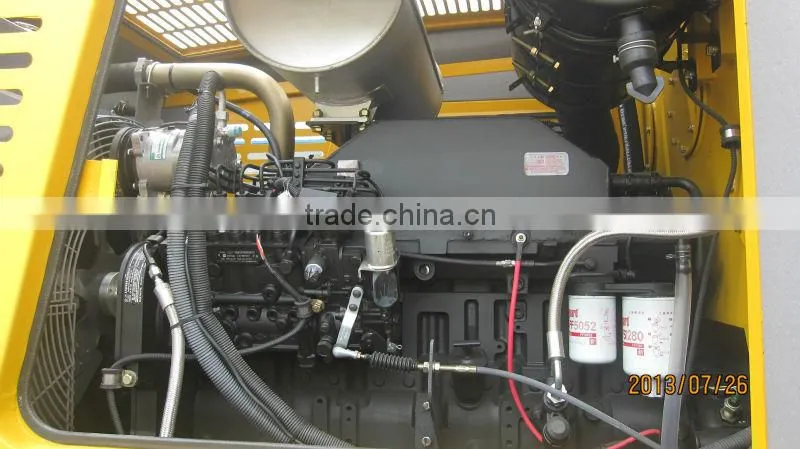

Euro III ENGINE

Motor Grader Basic specification
Engine model	6CTAA8.3 6CTA8.3
Rated power/speed	153kW/2200rpm 160kW/2200rpm
Dimension(LxWxH)	8970×2625×3470mm
Operating weight(Standard)	16500kg
Motor Grader Performance specification
Travelling speed ,forward	5,8,11,19,23,38 km/h
Travelling speed ,reverse	5,11,23 km/h
Tractive force(f=0.75)	82KN
Max. gradeability	20%
Tire inflation pressure	260 kPa
Working hydraulic pressure	16 MPa
Transmission pressure	1.3~1.8MPa
Motor Grader Operating specification
Max. steering angle of front wheels	±50°
Max. lean angle of front wheels	±17°
Max. oscillation angle of front axle	±15°
Max. oscillation angle of balance box	15
Frame articulation angle	±27°
Min. turning radius using articulation	7.3m
Motor Grader Blade
Maximum lift above ground	450mm
Maximum depth of cutting	500mm
Maximum blade position angle	90°
Blade cutting angle	28°—70°
Circle reversing rotation	360°
Moldboard width X height	4270×610mm

Our enterprise philosophy: Credibility,Integrity,Perfection,Innovation

Xuzhou Silkway Machinery &Equipment Co,Ltd. Our company is a strong-powered trading company which was founded eight years ago, we have many experience in trading machinery and also have the best way to get the best product for you.Our company is your best choice;cheaper price but better quality&service.
