Boom Length 50m Tower Crane TC5012

Name: Boom Length 50m Tower Crane TC5012
Brand: Silkway
SKU: 140803058
Availability: InStock

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Rated Loading Capacity:

1.2t at jib end

Max. Lifting Load:

Xuzhou Silkway Machinery & Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

any port of China

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Rated Loading Capacity 1.2t at jib end

Max. Lifting Load 6t

Max. Lifting Height 160m

Brand Name Silkway

Model Number TC5012

Specifications

Most popular model,
1.Max.load:6t,
2.Jib load: 1.2t,
3.Free height: 40m

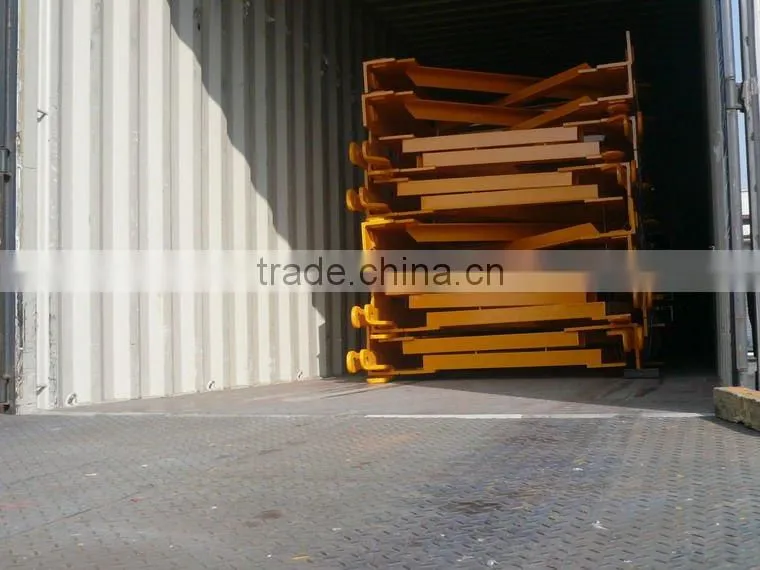

4.mast section in pieces

Main performance parameters

No.	Name of parameter		Unit	Value
1	Rated lifting moment			630
2	Max rated lifting weighgt		t	6
3	Max working range/rated lifting weight			50/1.2
4	Min working range		m	2.5
5	Allowable max range in max lifting weight		m	13.7
6	Hoisting velocity	Independent	m	40
		Attached	m	140
7	Hoisting mechanism (planet reducer)	Hoisting velocity / Relevent max lifting weight	m/min	twice rate		quad rate
				m /min	t	m /min	t
				6.6	3	3.3	6
				22.8	3	11.4	6
				39.3	3	19.7	6
				55.5	1.5	27.8	3
				80	1.5	40	3
		Lowest steady descenting speed	m /min	3.3
		Model of motor		YZTD200L 24/8/4		YZTD180L 8/4
		power	kW	4/15/15		11/15
		Swing speed	r/min	195/670/1385		700/1400
8	Slewing mechanism	Slewing velocity	r/min	0.7
		Model of motor		YZR132M2-4
		Power	kW	5.5
		Swing speed	r/min	1385
9	Range- changing mechanism	Range-changing velocity	m/min	28/42
		Model of motor		YDTC250
		Power	kW	3/4
10	Rising mechanism	Rated rising speed	m/min	0.5
		Rated working pressure	MPa	16
		Model of motor		Y132S—4
		Power	kW	5.5
		Swing speed	m/min	1400
11	boom length/relevent counterweight		m/t	50/8.8
12	Weight of the whole crane		t	37.6
14	Total power(rising motor not inclouded)		kW	39.5

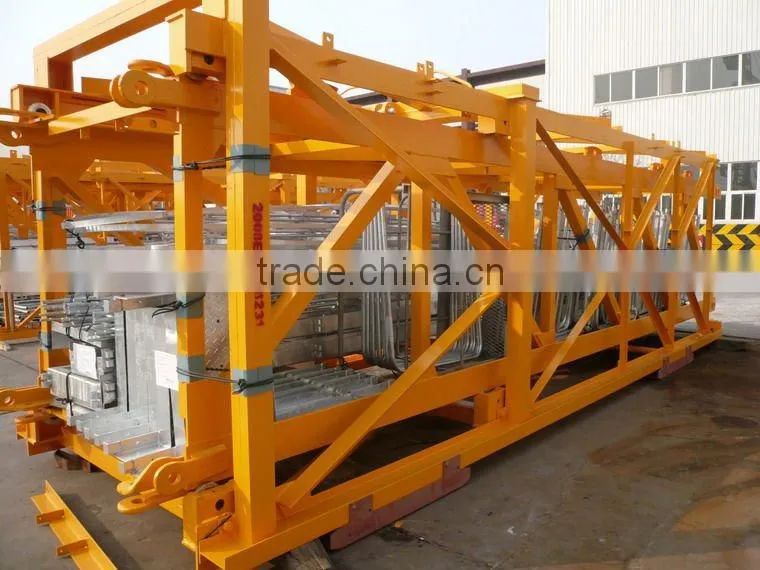

15	Mast secton dimension(length×wide×height)		m	1.8×1.8×3.0

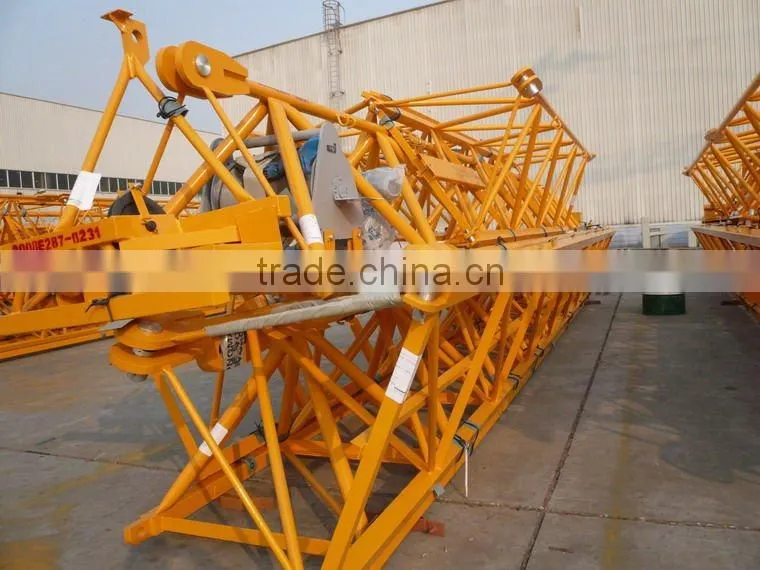

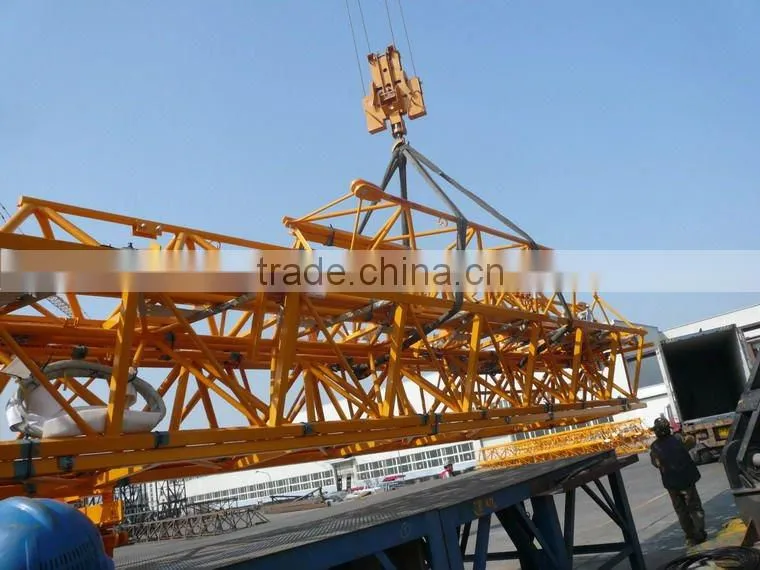

16	Boom section dimension		m	1.373×1.15
