35ton Zomlion brand truck crane QY35V 2017 new model
- 100 Unit / Units per Month
- Shanghai Port
- T/T D/P D/A Credit Card
Product Details
Condition: | New | Application: | Lifting Project | Rated Loading Capacity: | 35ton |
Rated Lifting Moment: | 1132KN.m | Max. Lifting Load: | 35Ton | Max. Lifting Height: | 48.5m |
Span: | 5360*6100mm | Place of Origin: | Hunan, China | Brand Name: | ZOOMLION |
Model Number: | QY35V | Certification: | CE,SGS, BV, CIQ,CONTECNA, etc. | Warranty: | 2000 working hours or one year |
After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

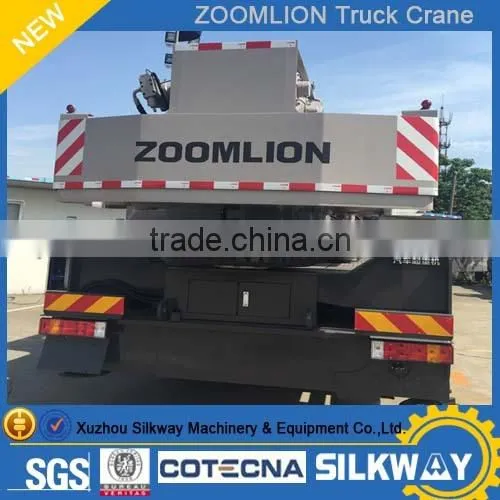

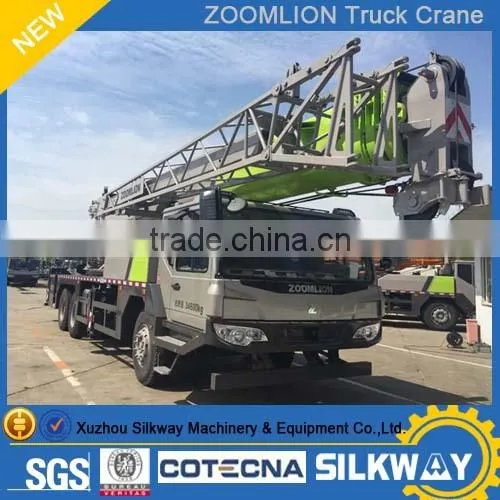

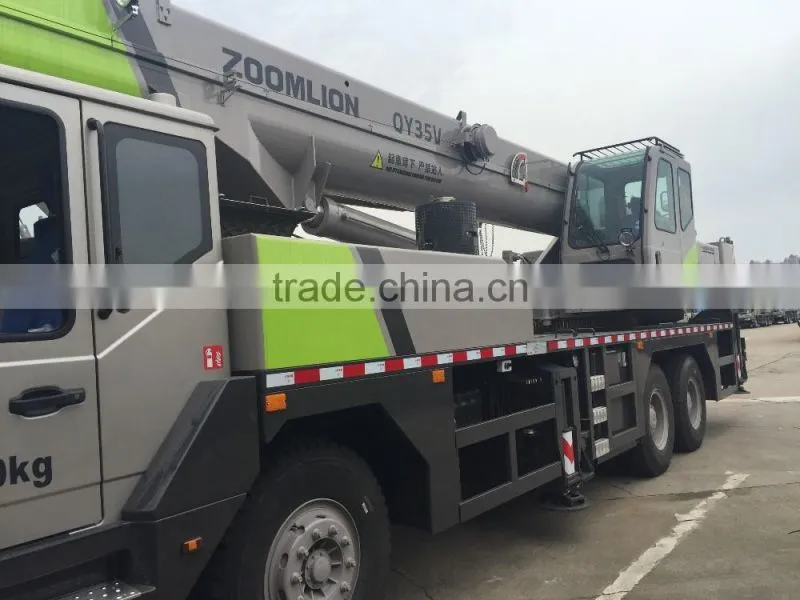

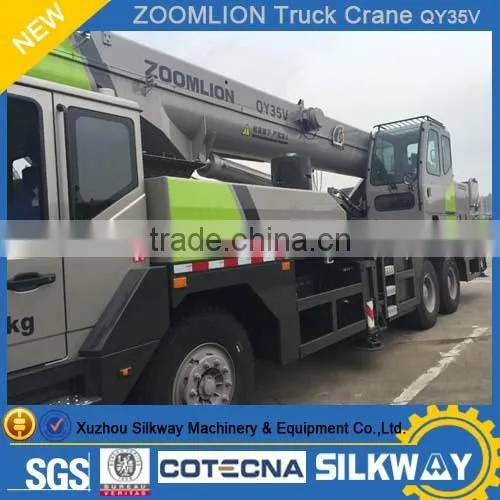

35ton Zomlion brand truck crane QY35V 2017 new model
ZOOMLION Truck Crane EURO IV Hot Sale 35Ton QY35V with Best Price
Easier to maintain / More energy-efficient and environmental friendly

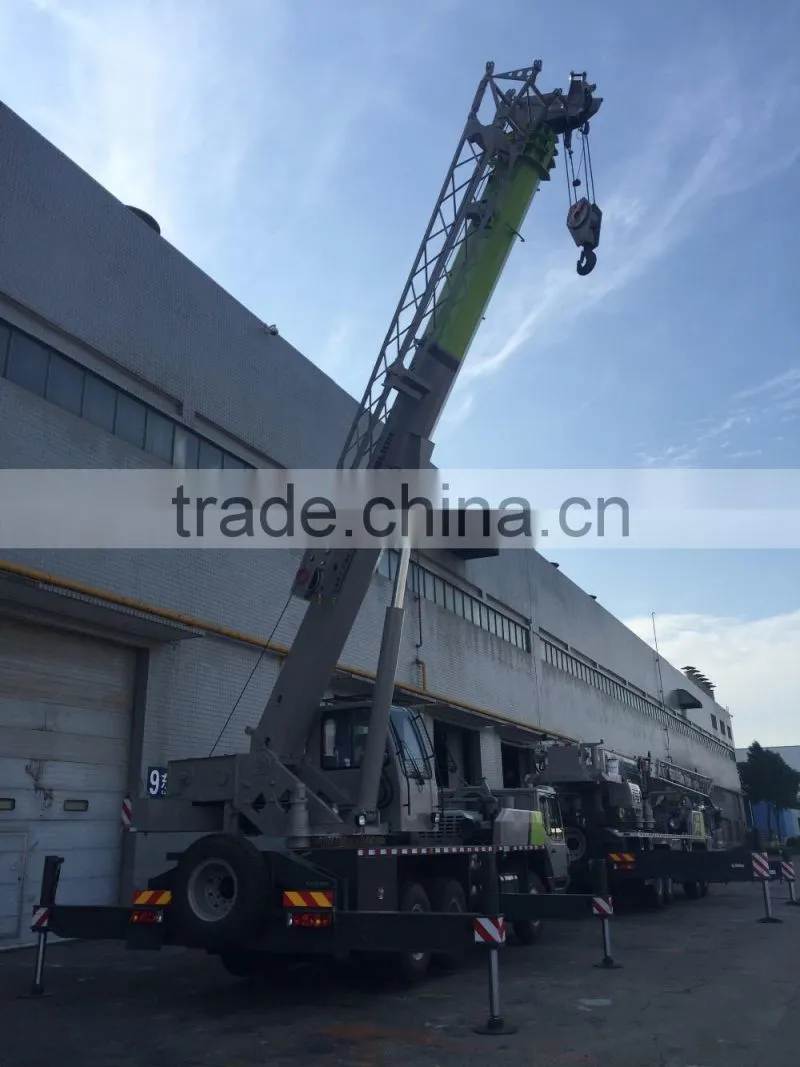

• A truck crane featuring full circle swinging, telescopic luffing jib and five-section boom subject to hydraulic proportional control;
• Three-axle dedicated chassis, broad vision, simple and generous decorations, 6×4 drive; • It adopts the latest directional valve and quadruple gear pump system, with such safety devices as overflow valve, balance valve, hydraulic lock and brake valve equipped to prevent oilway overload and avoid accidents due to pipe fracture, ensure that all actuators could give full play to their working ability, and improve the system reliability and safety;
• Such safety devices as torque limiter and complete lighting system are equipped to ensure safe and reliable operation, and facilitate operation at night;
• The complete crane features an innovative design, with its body, line and tint beauty integrated.
*5-section boom and 1 jib
*Jib length 8m
* Max. lifting height of longest main boom 40.5m

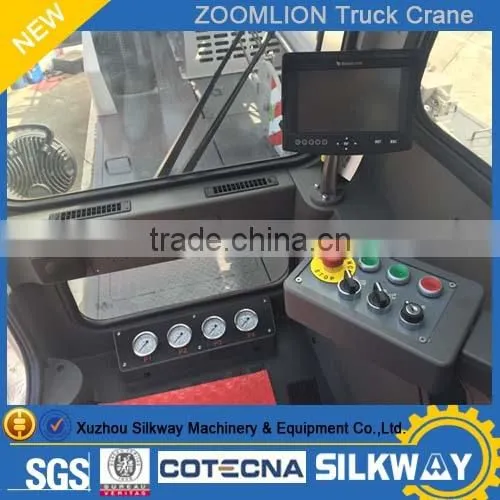

*Pilot control, A/C
Max. rated total lifting capacity 30t
Excellent lifting performance
Engine Model: 213kw WEICHAI
Technical Parameters
Zomlion truck crane
Type | Ser. No. | Item | Unit | Value |
Working performance | 1 | Max. rated lifting weight × working radius | kg.m | 35000×3.0 |
2 | Max. lifting torque of basic boom | kN.m | 1132 | |
3 | Max.lifting torque of longest main boom | kN.m | 617.5 | |
4 | Max. lifting height of longest main boom | m | 40.5 | |
5 | Max. lifting height of jib | m | 48.5 | |
Dimensions | 6 | Outline dimensions (L×W×H) | mm | 12900×2500×3465 |
7 | Distance between outriggers (longitudinal × transversal) | mm | 5360×6100 | |
8 | Main boom length (completely retracted – completely extended) | m | 10.6~40 | |
9 | Jib length | m | 8 | |
10 | Main boom angle of elevation | ° | -2~80 | |
11 | Swing range |
| 360°continuously | |
Working speed | 12 | Max.speed of single rope on the drum of main winch | m/min | 120 |
13 | Boom extension time | s | 80 | |
14 | Boom derricking up time | s | 40 | |
15 | Swing speed | r/min | 0~2.2 | |
Mass | 16 | Complete vehicle kerb mass | kg | 31870 |
17 | Front axle load | kg | 7000 | |
18 | Rear axle load | kg | 25000 | |
Traveling | 19 | Max. traveling speed | km/h | 78 |
20 | Max. gradeability | % | 37 | |
21 | Min. turn radius | m | 11 | |
22 | Min. ground clearance | mm | 220 |
Original Spare Parts Available..

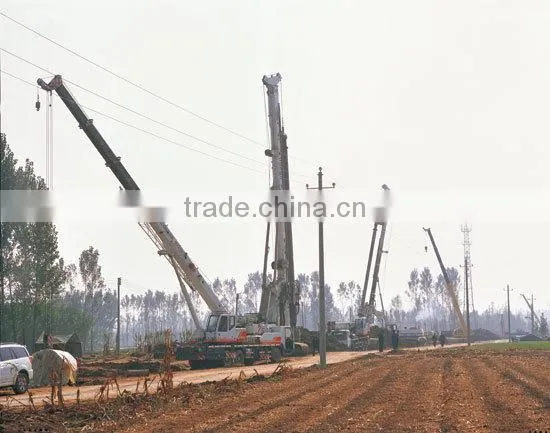

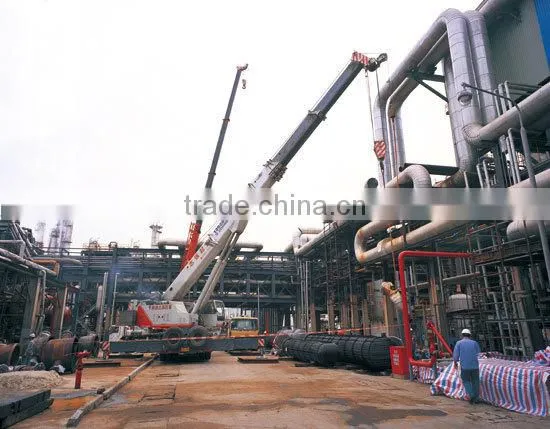

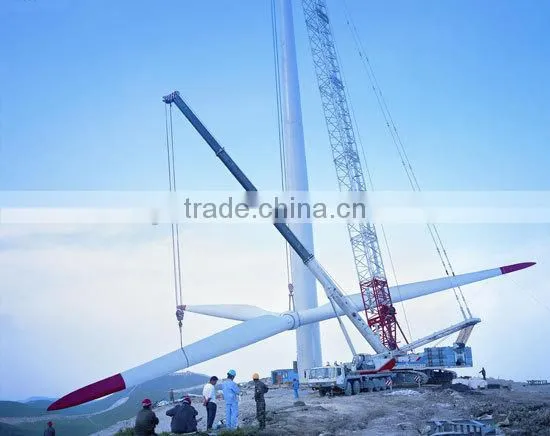

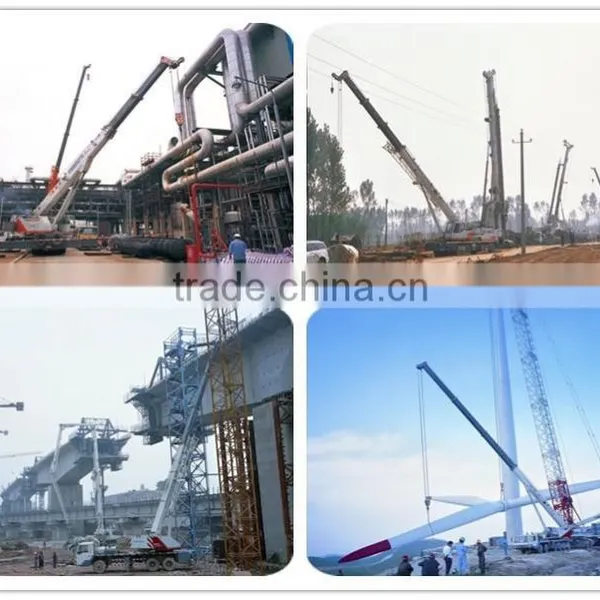

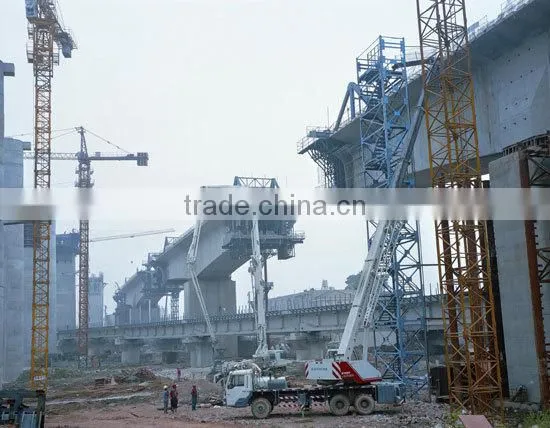

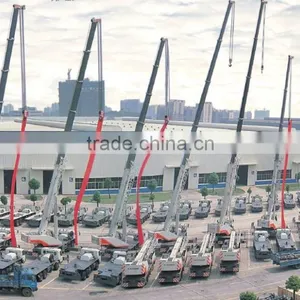

ZOOMLION Crane working in project site...
Sales Service
u Being available online 24 hours a day.
u Responding to your e-mails at the first time.
u Providing the best choice according to the customer’s needs.
u Giving reception and organize visit of the factory, meeting, technical communication for the customers.
After-sales Service
u Warranty: Silkway grants our clients a twelve-month-period or 2000-hours warranty for any machine purchased from us. During the warranty period, the defective parts will be repaired or replaced free of charge. But it does not cover all those parts damaged due to interventions for presumed problems or non conforming verification.
u Installation&Maintenance: Silkway has the ability to provide you with overall installation of complicated machinery and equipment, such as, crawler crane, tower crane, construction hoist, etc. Helping you to carry out the normal operation of the machines immediately.
01 WHAT ARE OUR ADVANTAGES COMPARED WITH ?
u Competitive Price - As a professional construction machinery exporter, we have abundant resources for pre-sale, sale and sale service. We work as the leading dealers of various leading China construction machinery manufacturers/factories, and are treated with best dealership price every year. From numerous comparison and feedbacks from clients, our price is more competitive than manufacturer /factories.
u Quick Response- Our team is consisted of diligent and enterprising people, working to respond client inquiries and questions all the time. Most problem can be solved within 12 hours.
02 WHICH TERMS OF PAYMENT CAN WE ACCEPT ?
u On T/T term, 30% down payment should be paid in advance, and 70% balance should be paid within 5 days before departure goods from factory.
u On L/C term, a 100% irrevocable L/C at sight by our acceptable bank.
03 HOW LONG WILL OUR PRICE BE VALID ?
We are a tender and friendly supplier, never greedy on windfall profit. Basically, our price remain s stable through the year. We only adjust our price based on two situations:
u The rate of USD /RMB varies significantly according to the international currency exchange rates.
u Manufacturers/factories adjusted to the machine price, because of the increasing of labor cost and raw material cost.
04 WHAT LOGISTICS WAYS WE CAN WORK FOR SHIPMENT?
We can ship construction machinery by various transportation tools.
u For 90% of our shipment, we will go by sea, for other machinery, like truck crane, big bulldozer and road roller, either by RO/RO and Bulk shipment.
u For neighborhood countries of China, such as Russia, Mongolia, Kazakhstan, Uzbekistan, etc., we can ship construction machinery by road or railway.
u For light spare parts in urgent demand, we can ship it by international courier service, such as DHL, TNT, UPS, or Fedex.
05 HOW LONG IS OUR GUARANTEE TIME?
u 2000 working hours or one year from the date of B/L, which comes first.
u Engineers available to service machinery overseas.
Silkway is very famous construction machinery exporter in China and have exported products to more than 60 countries. Our main products are as follows: XCMG wheel loader, road roller, motor grader, excavator, truck crane and SHANTUI bulldozer etc. We always guarantee official products, quick after-sale service, and the most competitive price.
