Heavy Machinery 130hp SHANTUI Bulldozer SD13 With Robust Structure
US$ 60,000 - 90,000
MOQ: 1 Unit
Key Specifications
Get Latest Price
Place of Origin:
Jiangsu, China
Brand Name:
SHANTUI
Model Number:
SD13
Payment & Shipping
Payment Methods:
Port of Shipment:
Any Port in China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
SHANTUI 160 HP CRAWLER BULLZODER SD16NegotiableMOQ: 1 Unit -
Hot Model 220hp SHANTUI Bulldozer SD22 With Competitive PriceUS$ 80,000 - 100,000MOQ: 1 Unit
-
Chinese Shantui 320HP Bulldozer SD32 With Triple Shank RipperNegotiableMOQ: 1 Unit
-
Earth Moving Equipment Dozer Shantui SD13NegotiableMOQ: 1 Unit
-
Popular Brand 160HP Shantui Hot Sale SD16 BulldozerNegotiableMOQ: 1 Unit
Place of Origin
Jiangsu, China
Brand Name
SHANTUI
Model Number
SD13
Condition
New
Moving Type
Crawler Bulldozer
Machine Weight
13700kg
Dimension(Long * Breadth * High)
5840*3185*2900mm
After-sales Service Provided
Engineers available to service machinery overseas
Hot Model 130hp SHANTUI Bulldozer SD13 With Shangchai Engine
Performance Parameter
| Engine | |
| Type | SSHANGCHAI D6114ZG4B(water cooled, in-line, direct injection and turbo charger) |
| Rated revolution | 1900rpm |
| Rated power | 95.5kw |
| Cylinder number-bore x stroke | 6-114 x 135 |
| Piston displacement | 8.27L |
| Rated fuel consumption | <=228g/kW.h |
| Max. Torque | 674.m/1300rpm |
| Undercarriage system | |
| Type | Swing type of sprayed beam, suspended structure of equalizer bar |
| Carry rollers | 2 each side |
| Track rollers | 6 each side |
| Track type | Single teeth. Dry type |
| Width of track shoes | 460mm |
| Pitch | 190mm |
| Hydraulic system | |
| Max. Pressure | 14MPa |
| Pump type | Gear pump |
| Discharge | 180L/min lated revelation |
| Working cylinder x number | 90mm x2 |
| Power transmitting system | |
| Torque converter | 3-element, 1 stage, 1 phase |
| Transmission | Forced connected, planetary gear |
| Main drive | Spiral bevel gear, splash lubrication |
| Steering clutch | Wet, Multi-disc, spring loaded, hydraulic helping operation, mechanical separating, linking steering brake |
| Steering brake | Wet, floating, band type foot stepping brake with hydraulic helping |
| Final drive | 2-stage speed reduction of spur gear, splash lubrication |
| Blade | Straight | Angle | |
| Min. ground clearance | mm | 320 | 320 |
| Operating weight | kg | 14000 | 14500 |
| Ground pressure | Mpa | 0.064 | 0.064 |
| Gradeability | % | 30 | 30 |
| Track gauge | mm | 1880 | 1880 |
| Dozing capacity | m3 | 3.7 | 3.4 |
| Blade height | mm | 1090 | 915 |
| Blade width | mm | 3185 | 3745 |
| Max. drop below ground | mm | 590 | 590 |
| Max. tilt adjustment | mm | 400 | 400 |
| Travel speed | |||
| Gear | 1st | 2nd | 3rd |
| Forward(km/h) | 3.2 | 5.9 | 9.8 |
| Reverse(km/h) | 3.9 | 7.1 | 11.9 |

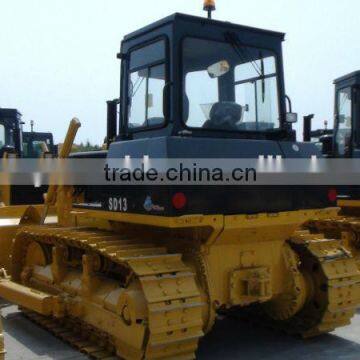

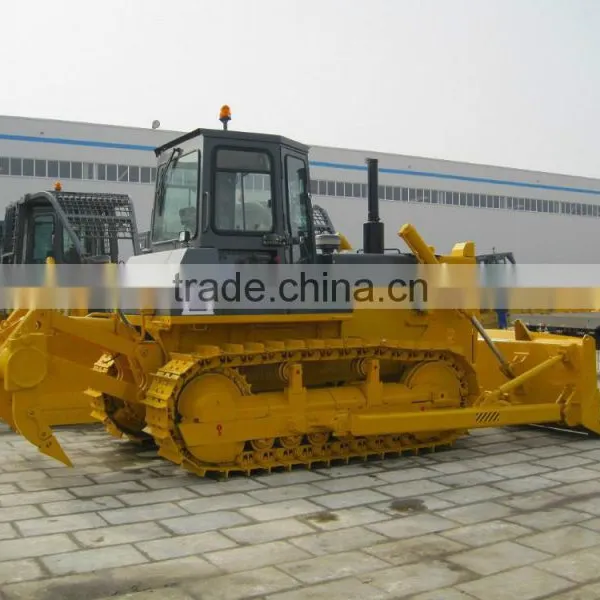

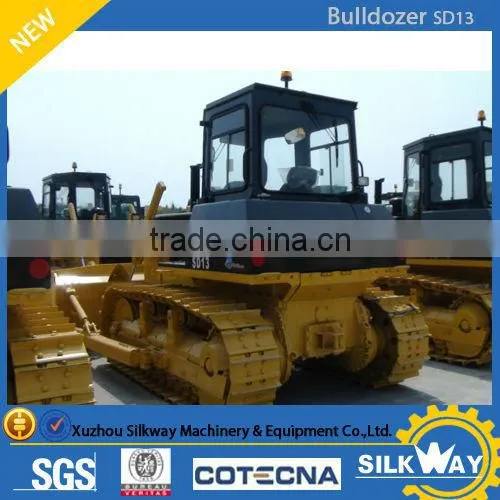

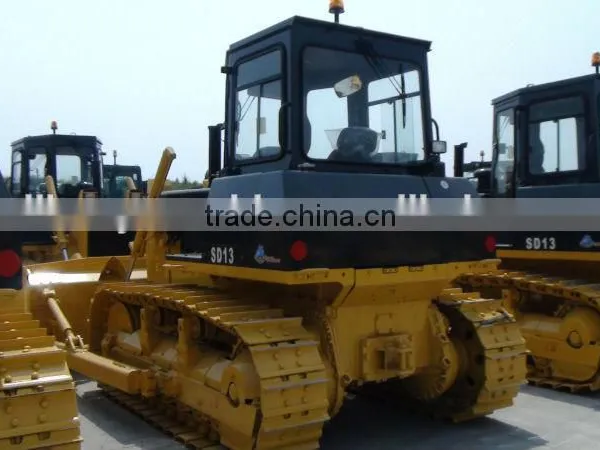

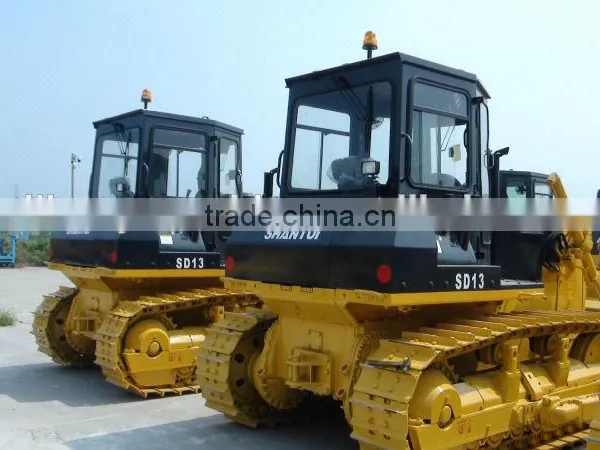

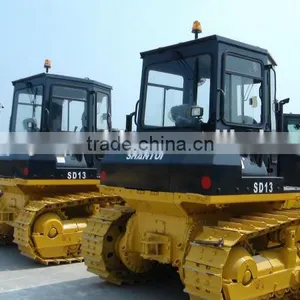

Product Photos
Packaging&Shipping
Our Services
Company Information
Silkway is located in the most famous construction machinery city Xuzhou, China, where XCMG located. Our company has been specializing in construction machinery for many years, and we have abundant experience and resources for pre-sale, sale and after sale service. As a professional construction machinery exporter, our enterprise philosophy is " Credbility, Integrity, Perfection ". Our products have been exported to over 80 different countries, including Australia, U.K., Poland, Netherland, Italy, Russia, India, main countries of Africa, America, Central-Asia, Southeast Asia, Middle East etc.
XUZHOU SILKWAY MACHINERY&EQUIPMENT CO.,LTD
Add:F17, Hengmao Business Center, No6, Xi'an Road(N), Xuzhou City, Jiangsu Province, P,R.China
